Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MTED
-
Model Number:
-
RZJD-G350J
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
7300x3000x2200mm
-
Weight:
-
6500 KG
-
Max Speed:
-
50-600 pcs/min or 120 m/min
-
Machine speed:
-
20-650pcs/min
-
Cutting length:
-
165-720mm
-
Bag length:
-
160-715mm
-
Bag width:
-
70-350mm
-
Gusset width:
-
30-120mm
-
Bag mouth height:
-
15/20mm
-
Material thickness:
-
35-80g/m2
-
Scroll diameter:
-
1000mm
-
Paper feed width:
-
200-920mm
-
After-sales Service Provided:
-
Engineers Service Machinery Overseaside
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Most type bag
-
Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MTED
-
Model Number:
-
RZJD-G350J
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
7300x3000x2200mm
-
Weight:
-
6500 KG
-
Max Speed:
-
50-600 pcs/min or 120 m/min
-
Machine speed:
-
20-650pcs/min
-
Cutting length:
-
165-720mm
-
Bag length:
-
160-715mm
-
Bag width:
-
70-350mm
-
Gusset width:
-
30-120mm
-
Bag mouth height:
-
15/20mm
-
Material thickness:
-
35-80g/m2
-
Scroll diameter:
-
1000mm
-
Paper feed width:
-
200-920mm
-
After-sales Service Provided:
-
Engineers Service Machinery Overseaside
Enterprise Exhibitor Information
Product Paramenters
Mechanical parameters
|
Model
|
RZJD-G350J
|
|
Length of cutting bag
|
110-460mm
|
|
Bag length
|
100-450mm
|
|
Bag width
|
70-250mm
|
|
Insert size
|
20-120mm
|
|
Bag mouth height
|
15/20mm
|
|
Bag speed
|
50-320pcs/min
|
|
Paper feed width
|
160-780mm
|
|
Paper material diameter
|
Φ1000mm
|
|
Inner diameter of paper
|
Φ76mm
|
|
Paper material thickness
|
35-80g/m²
|
|
Film width
|
80-200mm
|
|
Rolling Film thickness（OPP/PET）
|
0.020-0.037mm
|
|
Rolling film diameter
|
Φ500mm
|
|
Working Air Current
|
More than 0.12m³/ minutes, 0.5-0.8MPa
|
|
Machine power
|
380V3(phase)4(wire) 24kw
|
Main Electrical Components List
|
Control System
|
|
|
|
|||
|
Name
|
Qty
|
Place of Origin
|
Brand
|
|||
|
Programmable Logic Controller
|
1
|
England
|
TRIO
|
|||
|
Touch Screen
|
1
|
France
|
SCHNEIDER
|
|||
|
Servo Motor
|
3
|
Japan
|
YASKAWA
|
|||
|
Servo Driver
|
3
|
Japan
|
YASKAWA
|
|||
|
Encoder
|
1
|
Germany
|
Posital
|
|||
|
Main Motor
|
2
|
Taiwan
|
HOUSIN
|
|||
|
Frequency Converter
|
2
|
Switzerland
|
ABB
|
|||
|
Photoelectric Eye Color Code Tracking
|
1
|
Germany
|
SICK
|
|||
|
Positioning Photoelectric Eye
|
1
|
Germany
|
SICK
|
|||
|
Low Voltage Electrical Apparatus
|
1
|
US
|
EATON
|
|||
|
Radio Button
|
1
|
China
|
Pinshuo
|
|||
|
Ultrasonic Sensor
|
1
|
Italy
|
SELECTRA
|
|||
|
Magnetic Powder Brake
|
1
|
China
|
WEIZHENG
|
|||
|
Glue position
|
|
|
|
|||
|
Name
|
Qty
|
Place of Origin
|
Brand
|
|||
|
Hot Melt Gluing Machine
|
1
|
Switzerland
|
RO
|
|||
|
Hot Melt Gluing Pipe
|
2
|
Switzerland
|
RO
|
|||
|
Hot Melt Guing Gun
|
2
|
Switzerland
|
RO
|
|||
|
Bottom Glue (Paste White Latex)
|
1
|
China
|
MTED
|
|||
|
center-sealing glue gun for water-based glue
|
1
|
China
|
XLG
|
|||
|
Water White Latex Pneumatic Glue Barrel
|
1
|
China
|
TIANMA
|
|||
|
Deviation correction / tension control system
|
|
|
|
|||
|
Name
|
Qty
|
Place of Origin
|
Brand
|
|||
|
Epc
|
1
|
Italy
|
SELECTRA
|
|||
|
Rectification Motor
|
1
|
Italy
|
SELECTRA
|
|||
|
Infrared Induction
|
1
|
Italy
|
SELECTRA
|
|||
|
Automatic Constant Tension Controller
|
1
|
England
|
TRIO
|
|||
|
Tension Magnetic Powder Brake
|
1
|
Taiwan
|
WEIZHENG
|
|||
Products Description
Properties and Uses

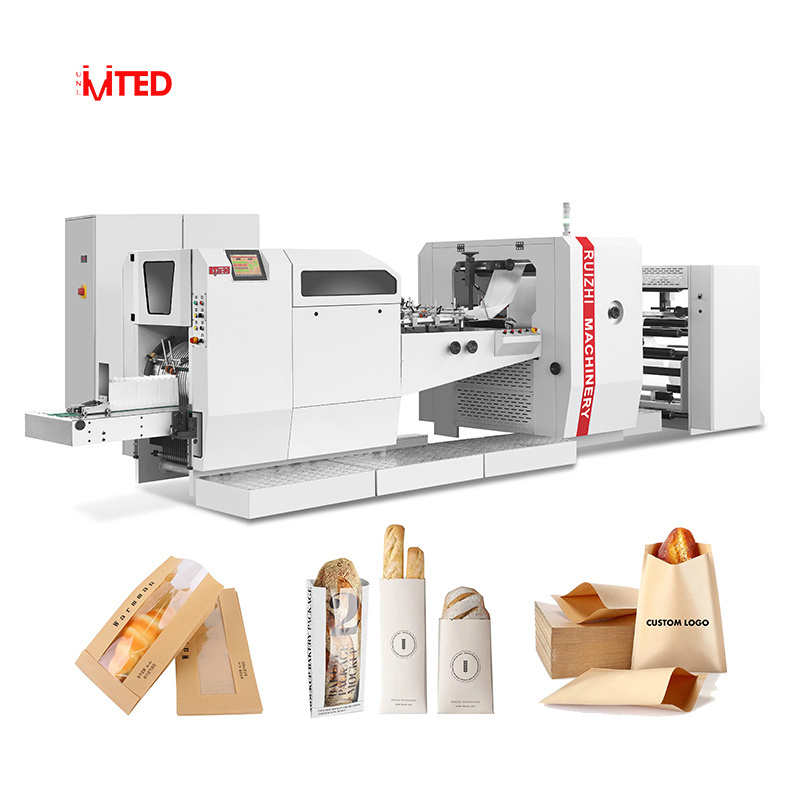

RZJD-G350J Full Automatic High Speed Sharp Bottom Paper Bag Making Machine is suitable for varied primary and printed rolling bag,such as Kraft paper,slick paper,coated paper,medico paper and so on. It finishes all procession all in a time consisting:perforating, middle gluing,printed pattern calibration, tube forming, calibration snapping, bottom folding, bottom forming, andcollect final product quantitatively. This machine operate easier, working more efficient, and performance more steadily. It is afantastic machine for full paper bag, paper bag with window, leisure snack bag, bakery bag, fast food bag, dry fruit bag eco-bagand so on.
Main features
1.Use France SCHNEIDER touch screen human-computer interface, making the machineeasy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensurestable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectriceye correction, tracking printing bag accurately.
4.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts autotension control.
5.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Production Flow Chart
Enterprise Advantage
We will send technician to your factory to install the machine, and teach your workers to use it
Exhibition
Product packaging
FAQ
Q: Are you a factory or trading company?
A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you
Q: How does your factory do regarding quality control?
A: We have a professional QC department in charge of products' quality.
Q: How long is the warranty period?
A: 12 months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q: How to install the machine?
A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
Q: Where is your factory located? How can we visit there?
A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory.
Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available. Then we will recommend the right machine to you!
