Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyester
-
Feature:
-
ANTISTATIC
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3M
-
Model Number:
-
27
-
Product form::
-
Roll
-
Type:
-
Insulation Tape
-
Design Printing::
-
No Printing
-
Adhesive Side::
-
Single Sided
-
Application:
-
Electronics
-
Electrical Specification:
-
Typical value
-
Color:
-
Multiple colour
Quick Details
-
Adhesive:
-
Rubber
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Polyester
-
Feature:
-
ANTISTATIC
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3M
-
Model Number:
-
27
-
Product form::
-
Roll
-
Type:
-
Insulation Tape
-
Design Printing::
-
No Printing
-
Adhesive Side::
-
Single Sided
-
Application:
-
Electronics
-
Electrical Specification:
-
Typical value
-
Color:
-
Multiple colour
Product Description
| PRODUCT PARAMETERS | |
| Physical Property | Typical Value |
| Brand: | 3M |
| ltem Number: | 27 |
| Size: | 616mmx55m (can be customized) |

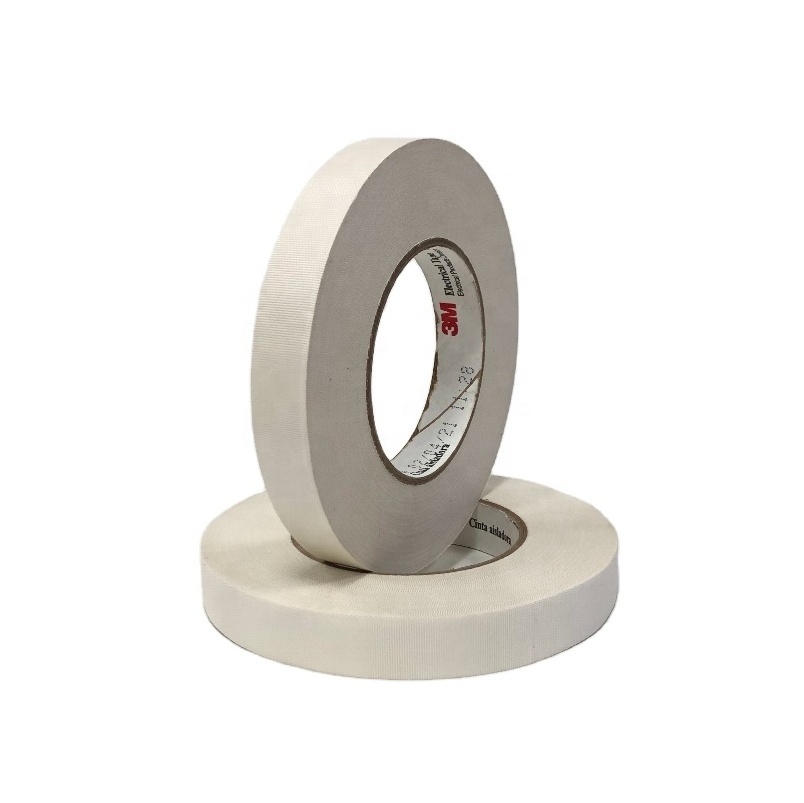

3M Brand 27 Glass Cloth Electrical Tape is a woven glass cloth tape designed to operate in applications requiring high
mechanical strength and resistance to high temperatures. The glass cloth is specially treated and prepared to provide
corrosion free protection. The glass will not shrink, rot or burn and has a high tensile strength. The adhesive is a rubber
pressure-sensitive thermosetting system. The tape is designed for continuous use at class “B” (130°C) temperature
Applications
Useful applications include a heat-stable insulation for furnace and oven controls, motor leads and switches.
Official Approvals
Technical Information
3M 27 Electrical Tape has a rubber thermosetting, pressure-sensitive adhesive which electrically insulates and provides
mechanical protection at high temperatures.
Colour White
Temperature rating – continuous 130°C
Temperature rating – short term 160°C
Thickness 0.170mm
Elongation at break 5%
Tensile strength 260 N/10 mm
Electric strength 11.5kV/mm
Key Features and Benefits
Feature Benefit
High temperature thermosetting adhesive Heat stable insulation allows system to provide the highest
quality job
Mechanical protection Abrasion protection that lasts longer and improves safety
Components listed Safety/Security – right product for high temperatures
