1. Digital led pixel string for outdoor application.
2. Control IC UCS512 included, standard DMX protocol. Each pixel individually control.
- Product Details
- {{item.text}}
Quick Details
-
Color Temperature(CCT):
-
FULL COLOR
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Efficiency(lm/w):
-
80LM/W
-
Lamp Luminous Flux(lm):
-
80LM/W
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
20 - 80
-
Product Weight（kg）:
-
0.035
-
Product Name:
-

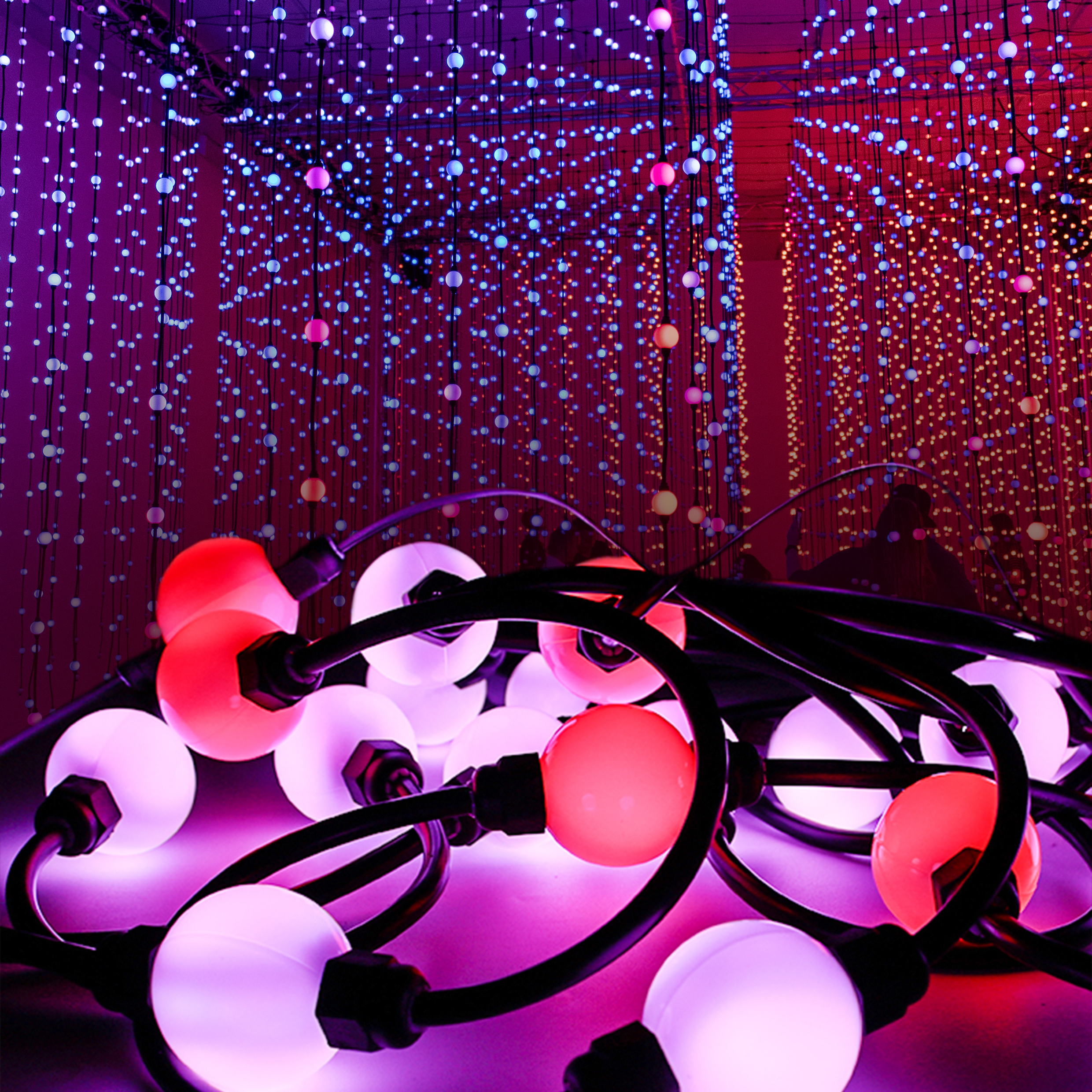

50mm pixel waterproof 3D rgb dmx led ball curtain
-
LED Light Source:
-
6pcs smd 3535 RGB LED Chip
-
Beam Angle:
-
360 degree
-
Diameter:
-
50mm
-
IC chip:
-
UCS512 full color
-
Cover:
-
transparent/milky white
-
length:
-
20pcs/string, P200MM, but can be custom-made
-
Keyword:
-
Point Light LED Landscape Lamp
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shiji lighting
-
Model Number:
-
SJ-50-DMX
-
Color Temperature(CCT):
-
FULL COLOR
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Efficiency(lm/w):
-
80LM/W
-
Lamp Luminous Flux(lm):
-
80LM/W
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
20 - 80
-
Product Weight（kg）:
-
0.035
-
Product Name:
-
50mm pixel waterproof 3D rgb dmx led ball curtain
-
LED Light Source:
-
6pcs smd 3535 RGB LED Chip
-
Beam Angle:
-
360 degree
-
Diameter:
-
50mm
-
IC chip:
-
UCS512 full color
-
Cover:
-
transparent/milky white
-
length:
-
20pcs/string, P200MM, but can be custom-made
-
Keyword:
-
Point Light LED Landscape Lamp
Specification
|
Setting Information
|
|
|
|
Item number
|
SJ-50-DMX-35F
|
|
|
Operate voltage
|
DC 24V
|
|
|
Work voltage
|
1.44W
|
|
|
light color/ IC chip
|
RGB full color UCS512
|
|
|
Pixel pitch
|
p20cm, can custom-made
|
|
|
work temperature
|
-20°C ~ 60°C
|
|
|
storage temperature
|
-30°C ~ 80°C
|
|
|
Shelf life
|
2 years
|
|
Product Description
Product Details
Product Details
3. 20pcs per chain with 20 cm space (standard length), can be custom-made.
4. There is 6pcs super bright smd3535 RGB LED inside of each lamp. ( Front 3leds, back 3leds )
Product Details
5. The connectors are waterproof, the Male with Pin is Input.
6. The whole string light is waterproof IP67
Product Details
7. Communication between DMX512 led digital pixel light are synchronized perfectly under the support
of Artnet / DMX512 led controllers
8. Controller System:SD controller , DMX controller , Artnet and so on .
|
SJ-6018-24V
|
SJ-4512-24v
|
SJ-456-8206
|
SJ-IC219-N
|
|
18pcs SMD5050 RGB
|
12pcs SMD5050 RGB
|
6pcs SMD5050 RGB
|
3pcs SMD5050 RGB
|
|
4.32W
|
3.6W
|
1.44W
|
0.72W
|
|
DC24V input
|
DC24V
|
DC24V
|
DC12V
|
