Quick Details
-
Spindle Taper:
-
(V) R8/NT30/NT40
-
Range of Spindle Speed(r.p.m):
-
65 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jeyew
-
Model Number:
-
M4
-
Table Travel (mm):
-
800/420/450
-
Year:
-
New
-
Spindle Motor Power(kW):
-
2.2/4
-
Voltage:
-
380V or optional, 380V /220V / Customized
-
Dimension(L*W*H):
-
1700*1680*2150mm
-
Weight (KG):
-
1200
-
Marketing Type:
-
New product
-
Product name:
-

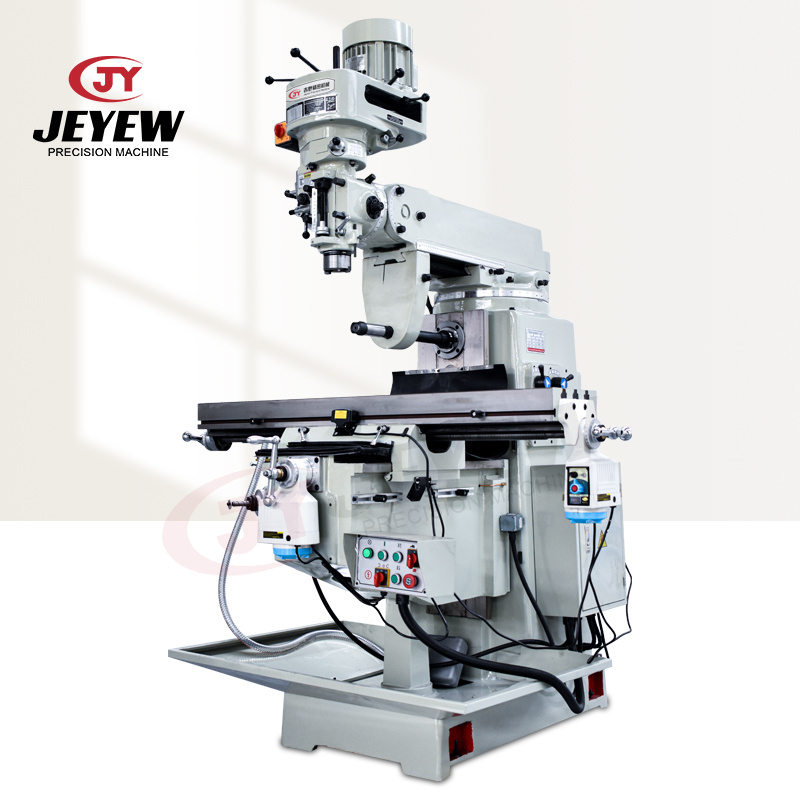

Turret milling machine
-
Key word:
-
Universal Milling Machine
-
After-sales Service Provided:
-
3 years
-
Key selling points:
-
Long service life
-
Style:
-
Vertial
-
Color:
-
Customizable
-
Package:
-
Export standard wooden case
Quick Details
-
Table Travel (X) (mm):
-
1270
-
Table Travel (Y) (mm):
-
254
-
Table Travel (Z) (mm):
-
127
-
Spindle Taper:
-
(V) R8/NT30/NT40
-
Range of Spindle Speed(r.p.m):
-
65 - 4540 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jeyew
-
Model Number:
-
M4
-
Table Travel (mm):
-
800/420/450
-
Year:
-
New
-
Spindle Motor Power(kW):
-
2.2/4
-
Voltage:
-
380V or optional, 380V /220V / Customized
-
Dimension(L*W*H):
-
1700*1680*2150mm
-
Weight (KG):
-
1200
-
Marketing Type:
-
New product
-
Product name:
-
Turret milling machine
-
Key word:
-
Universal Milling Machine
-
After-sales Service Provided:
-
3 years
-
Key selling points:
-
Long service life
-
Style:
-
Vertial
-
Color:
-
Customizable
-
Package:
-
Export standard wooden case
Product Description
Specification
Manual milling machine M5W M6W universal milling machine 50*25 universal milling machine heavy duty characteristics
：
1.Taiwan Turret milling head;
2.The guide rail is super-audio quenched, precision ground and scraped;
3.Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4.Head rotation rotation 90°(left and right),head rotation 45°(back and forth)；
5.Pneumatic draw bar is optional.
1.Taiwan Turret milling head;
2.The guide rail is super-audio quenched, precision ground and scraped;
3.Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4.Head rotation rotation 90°(left and right),head rotation 45°(back and forth)；
5.Pneumatic draw bar is optional.
Universal milling machine application:
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal
milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.Widely used in mechanical processing,mold,equipment, instrumentation and other industries.
milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.Widely used in mechanical processing,mold,equipment, instrumentation and other industries.
|
Specifications
|
Unit
|
M4
|
M5
|
|
|
Table size
|
mm
|
1270*254
|
1370*305
|
|
|
Table travel
|
mm
|
800/420/450
|
900/400/450
|
|
|
Spindle taper
|
--
|
(V) R8/NT30/NT40
|
|
|
|
Spindle travel
|
mm
|
127
|
|
|
|
Spindle speed range
|
rpm
|
50HZ:65-4540 60HZ:60-5440 16 steps
|
|
|
|
T slot(number-width-pitch)
|
mm
|
3-16-58
|
3-16-76
|
|
|
Spindle feed range
|
mm
|
0.76/0.003
|
|
|
|
Distance between spindle axis and table surface
|
mm
|
0-400
|
|
|
|
Main motor power
|
kw
|
380V 2.2/4
|
|
|
|
Lifting power
|
kw
|
1.1
|
|
|
|
Weight
|
kg
|
1200
|
1380
|
|
|
Overall dimension
|
mm
|
1700*1680*2150
|
1800*1780*2150
|
|
