Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
WEBSTERTOOLS
-
Model Number:
-
K11
-
No. of Jaws:
-
Three
-
Feature:
-
Self Centering
-
Type:
-
K11 Series
-
Size:
-
80mm-400mm
-
Jaw Type:
-
Solid Jaws
-
Connection Type:
-
Adapter
-
Common used on:
-
Lathe machine and Indexing heads
-
Packing:
-
Carton/Plywood Case
Quick Details
-
Number of Jaws:
-
3
-
Material:
-
Steel
-
Warranty:
-
Not Applicable
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
WEBSTERTOOLS
-
Model Number:
-
K11
-
No. of Jaws:
-
Three
-
Feature:
-
Self Centering
-
Type:
-
K11 Series
-
Size:
-
80mm-400mm
-
Jaw Type:
-
Solid Jaws
-
Connection Type:
-
Adapter
-
Common used on:
-
Lathe machine and Indexing heads
-
Packing:
-
Carton/Plywood Case
Product Description

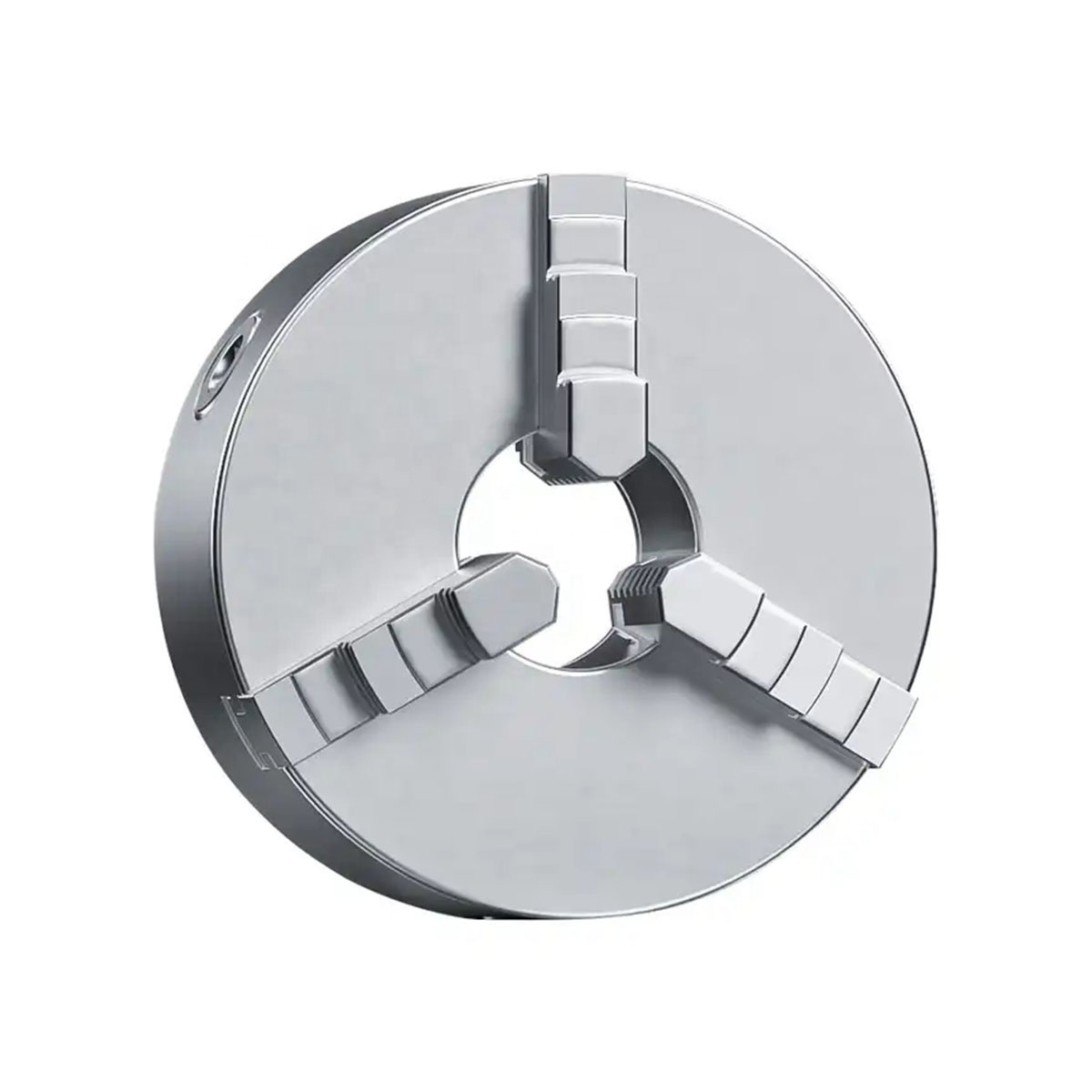

K11 series manual self-centering 3 jaw lathe chuck
*With cylindrical adapter spindle mount.
*Package including one-piece jaw sets(which include a set of internal jaws and a set of external jaws).
*The jaws for K11A, K11C and K11D chucks are composed of two piece jaws. They can perform as either internal or external jaws through adjustment.
*The jaw for K11A and K11D chucks meet standard ISO3442.
*Model K11C chucks are supplied with traditional two-piece jaws.
*We can provide all kinds of soft jaws.
*Wear-resistance alloy cast iron chuck body material, and HT250 back cover material for size above 160mm, which improve the accuracy and rigidity of the chuck.
Specification
|
Model/Size
|
D1
(mm)
|
D2
(mm)
|
D3
(mm)
|
H
(mm)
|
H1
(mm)
|
H2
(mm)
|
h
(mm)
|
S
|
z-d
|
|
80
|
55
|
66
|
16
|
66
|
50
|
-
|
3.5
|
8
|
3-M6
|
|
100
|
72
|
84
|
22
|
74.5
|
55
|
-
|
3.5
|
8
|
3-M8
|
|
125
|
95
|
108
|
30
|
84
|
58
|
-
|
4
|
10
|
3-M8
|
|
130
|
100
|
115
|
30
|
86
|
60
|
-
|
3.5
|
10
|
3-M8
|
|
160
|
130
|
142
|
40
|
96.5
|
66.5
|
-
|
4.5
|
12
|
3-M8
|
|
165
|
130
|
145
|
40
|
96.5
|
66.5
|
-
|
4.5
|
12
|
3-M8
|
|
190
|
155
|
172
|
55
|
105
|
75
|
-
|
5
|
12
|
3-M10
|
|
200
|
165
|
180
|
65
|
109
|
75
|
-
|
5
|
12
|
3-M10
|
|
200C
|
165
|
180
|
65
|
122
|
75
|
78
|
5
|
12
|
3-M10
|
|
250
|
206
|
226
|
80
|
120
|
80
|
-
|
5
|
12
|
3-M12
|
|
250C
|
206
|
226
|
80
|
130
|
80
|
84
|
5
|
12
|
3-M12
|
|
315C
|
260
|
285
|
100
|
155
|
90
|
96
|
11
|
13
|
3-M16
|
|
320
|
270
|
290
|
100
|
152.5
|
95
|
-
|
11
|
13
|
3-M16
|
|
320C
|
270
|
290
|
100
|
152.5
|
95
|
101.5
|
11
|
13
|
3-M16
|
|
325C
|
272
|
296
|
100
|
154.5
|
96
|
102.5
|
11
|
13
|
3-M16
|
|
380C
|
325
|
350
|
135
|
156.5
|
98
|
104.5
|
6
|
17
|
3-M16
|
|
400
|
340
|
368
|
138
|
158
|
100
|
-
|
6
|
17
|
3-M16
|
|
400C
|
340
|
368
|
138
|
158
|
100
|
105
|
6
|
17
|
3-M16
|
|
500D
|
440
|
465
|
210
|
202
|
115
|
126
|
6
|
17
|
3-M16
|
|
500C
|
440
|
465
|
200
|
197
|
115
|
121
|
6
|
17
|
6-M16
|
|
630A
|
560
|
595
|
270
|
218
|
133.5
|
142
|
7
|
19
|
6-M16
|
|
630D
|
560
|
595
|
270
|
218
|
133.5
|
142
|
7
|
19
|
6-M16
|
|
800A
|
710
|
760
|
385
|
250
|
147
|
170
|
8.5
|
21
|
6-M20
|
|
800D
|
710
|
760
|
385
|
250
|
147
|
170
|
8.5
|
21
|
6-M20
|
|
1000E
|
905
|
950
|
460
|
310
|
198
|
216
|
9
|
24
|
6-M24
|
|
Size
(mm)
|
Max. Input Torque
(N)
|
Max. Speed
(rpm)
|
Net Weight
(kg)
|
|
80
|
40
|
4000
|
1.9
|
|
100
|
60
|
3500
|
3.2
|
|
125
|
100
|
3000
|
5
|
|
130
|
100
|
3000
|
5.6
|
|
160
|
160
|
2500
|
8.3
|
|
165
|
160
|
2500
|
9.5
|
|
190
|
250
|
2000
|
13.8
|
|
200
|
250
|
2000
|
14.1
|
|
200C
|
250
|
2000
|
14.4
|
|
250
|
320
|
1600
|
26.5
|
|
250C
|
320
|
1600
|
23
|
|
315C
|
400
|
1200
|
41
|
|
320
|
400
|
1200
|
47.5
|
|
320C
|
400
|
1200
|
42
|
|
325C
|
400
|
1200
|
44
|
|
380C
|
500
|
1000
|
60
|
|
400
|
500
|
1000
|
74
|
|
400C
|
500
|
1000
|
65.8
|
|
500D
|
630
|
800
|
117.6
|
|
500C
|
630
|
800
|
116.2
|
|
630A
|
800
|
600
|
208
|
|
630D
|
800
|
600
|
208
|
|
800A
|
1000
|
500
|
305
|
|
800D
|
1000
|
500
|
305
|
|
1000E
|
1200
|
400
|
745
|
