- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hainer Tools
-
Product name:
-
CNC Tool Holder
-
Material:
-
65Mn
-
Balance:
-
0.005
-
Usage:
-
Milling Drilling
Quick Details
-
Place of Origin:
-
Shandong, China
-
Standard:
-
BT/SK/FMB
-
Marketing Type:
-
Hot Product 2021
-
Brand Name:
-
Hainer Tools
-
Product name:
-
CNC Tool Holder
-
Material:
-
65Mn
-
Balance:
-
0.005
-
Usage:
-
Milling Drilling

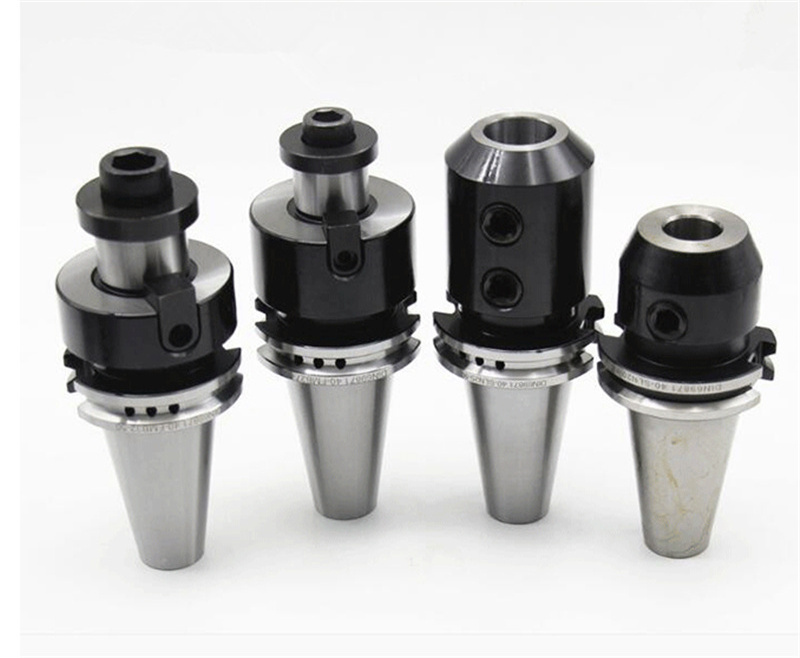

BT40-FMB32-60L Face Mill Arbor Shell Morse taper for BAP / EMR / RAP.KM12 Combi Shell Mill Arbor Morse taper shank for mill
CNC Machine Tool Accessories
1.Collets: ER Collets,SK collets,TAP Collets,Steel Sealed Collets.EOC collets
2.Milling chuck set,Wooden chuck,Chuck
3.Tool holders,Collet chuck,Machine vises
4.Vice,Wrench,Lathe chuck,Nut,boring head
5.live center
6.VDI tool holders
7.Measuring tools
8.Parallel block
9.End mills
10.Turning tool holders
11.Insert,CNC milling cutters,Edge finder
12.Clamping kit,HSK tool holders,Milling arbors,Milling chuck
13.End mill holder,Adapters
14.Punch former,Quick change tool holder,Drill chuck
15.Tapping chuck,Dividing head,Zero-Setter,Rotary table
16.Precision CNC Tools,Lathe tools,Machine tools
.
| DRILL CHUCK ARBORS | |||||
| Order No. DIN69871.A-NO.S-L1 | L2 | L | D | D1 | Drawbar thread |
| DIN69871.A40-J0-32 | 11.112 | 111.5 | 6.35 | 44.45 | M16 |
| DIN69871.A40-J1-32 | 16.669 | 117 | 9.754 | 44.45 | M16 |
| DIN69871.A40-J2-32 | 22.225 | 122.6 | 14.199 | 44.45 | M16 |
| DIN69871.A40-J2S-32 | 19.05 | 119.5 | 13.940 | 44.45 | M16 |
| DIN69871.A40-J3-32 | 30.956 | 131.4 | 20.599 | 44.45 | M16 |
| DIN69871.A40-J4-32 | 42.069 | 142.5 | 28.550 | 44.45 | M16 |
| DIN69871.A40-J5-32 | 47.625 | 148 | 35.890 | 44.45 | M16 |
| DIN69871.A40-J6-33 | 25.4 | 125.8 | 17.170 | 44.45 | M16 |
| DIN69871.A40-J33-32 | 25.4 | 125.8 | 15.850 | 44.45 | M16 |
| DIN69871.A40-B6-32 | 10 | 110.4 | 6.35 | 44.45 | M16 |
| DIN69871.A40-B10-32 | 14.5 | 114.9 | 10.094 | 44.45 | M16 |
| DIN69871.A40-B10-45 | 14.5 | 127.9 | 10.094 | 44.45 | M16 |
| DIN69871.A40-B12-32 | 18.5 | 118.9 | 12.065 | 44.45 | M16 |
| DIN69871.A40-B16-32 | 24 | 124.4 | 15.733 | 44.45 | M16 |
| DIN69871.A40-B16-45 | 24 | 137.4 | 15.733 | 44.45 | M16 |
| DIN69871.A40-B18-32 | 32 | 132.4 | 17.780 | 44.45 | M16 |
| DIN69871.A40-B18-45 | 32 | 145.4 | 17.780 | 44.45 | M16 |
| DIN69871.A40-B22-32 | 40.5 | 140.9 | 21.793 | 44.45 | M16 |
| DIN69871.A40-B24-32 | 50.5 | 150.9 | 23.825 | 44.45 | M16 |
| DIN69871.A50-B16-45 | 24 | 170.75 | 15.733 | 69.85 | M24 |
| DIN69871.A50-J3-45 | 30.965 | 177.7 | 20.599 | 69.85 | M24 |
| DIN69871.A50-J6-45 | 25.4 | 172.1 | 17.170 | 69.85 | M24 |
| DIN69871.A50-J33-45 | 25.4 | 172.1 | 15.850 | 69.85 | M24 |
| DIN69871.A50-B16-45 | 24 | 170.8 | 15.733 | 69.85 | M24 |
| DIN69871.A50-B18-45 | 32 | 178.8 | 17.780 | 69.85 | M24 |
| DIN69871.A50-B22-60 | 40.5 | 202.3 | 21.793 | 69.85 | M24 |
| DIN69871.A50-B24-60 | 50.5 | 212.3 | 23.825 | 69.85 | M24 |
| According to needs to be possible to provide the balanced hilt.the standard precision is G6.3/12000rpm,the precise precision is G2.5/20000rpm | |||||
1. Q:What's your advantage?
Honest business with competitive price and professional service on export process.
2. Q: H ow can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. Q:How I believe you?
We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
4. Q:Whether do you have a stable Raw materials supply? A long term cooperation relationship is kept with eligible suppliers of raw materials, which ensures the high quality of our products from 1ststep.
5. Q:How is your quality control?
Our quality control steps include:
(1) Confirm everything with our client before moving to sourcing and production;
(2) check all the materials to ensure they are correct;
(3) Employ experienced workers and give them proper training;
(4) Inspection throughout the whole production process;
(5) Final inspection before loading.
