Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUANDIAO
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
2100*3200*1900mm
-
Power (kW):
-
1600
-
Weight (KG):
-
2000
-
Product name:
-

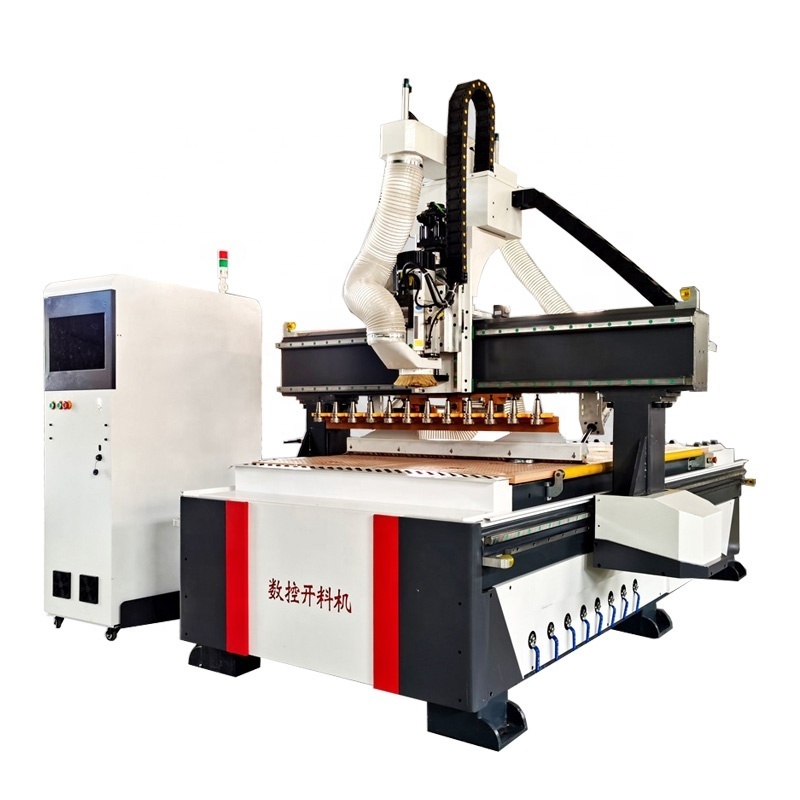

1325 Atc WoodWorking Cnc processing center
-
Control system:
-
Taiwan LNC Controller
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Transmission:
-
Taiwan TBI Ball Screw
-
Working area:
-
1300mm*2500mm*250mm
-
Working table:
-
Vacuum table
-
Motor:
-
11kw Fuling Servo Motor
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Reducer:
-
Japan Shimpo
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GUANDIAO
-
Voltage:
-
380/220V
-
Dimension(L*W*H):
-
2100*3200*1900mm
-
Power (kW):
-
1600
-
Weight (KG):
-
2000
-
Product name:
-
1325 Atc WoodWorking Cnc processing center
-
Control system:
-
Taiwan LNC Controller
-
Spindle:
-
9kw ATC Air Cooling Spindle
-
Transmission:
-
Taiwan TBI Ball Screw
-
Working area:
-
1300mm*2500mm*250mm
-
Working table:
-
Vacuum table
-
Motor:
-
11kw Fuling Servo Motor
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Reducer:
-
Japan Shimpo
Features:
1)Function: 6kw air cooled spindle, fast tool change speed, suitable for efficient cutting, slotting, milling and other processing of panel furniture;
2) Structure: Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy;
3) Accuracy: Excellent accessories and sophisticated detection devices enable the product to obtain perfect positioning and running accuracy;
4)High speed: high-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency;
5) Simple operation: compared with the traditional cutting method, only one person is required to operate, and even one person can operate multiple devices with simple operation and high efficiency. The design of the machine control interface is user-friendly, and the operator can start work after simple training.
2) Structure: Heavy-duty body welded by high-strength thick-walled steel pipes, annealing aging and sandblasting treatment, stable structure and guaranteed accuracy;
3) Accuracy: Excellent accessories and sophisticated detection devices enable the product to obtain perfect positioning and running accuracy;
4)High speed: high-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency;
5) Simple operation: compared with the traditional cutting method, only one person is required to operate, and even one person can operate multiple devices with simple operation and high efficiency. The design of the machine control interface is user-friendly, and the operator can start work after simple training.
Product Description
Specification
|
Model
|
GD-1325ATC
|
|
|
|
|||
|
XY working area
|
1300*2500mm(working area can be customized according to your needs)
|
|
|
|
|||
|
Z axis
|
200mm-300mm（option）
|
|
|
|
|||
|
Max Cutting Speed
|
70m/min
|
|
|
|
|||
|
Transmission system
|
XY axis: Germany Herion 1.5MRack and Pinion
Z: Germany TBI Ball Screw |
|
|
|
|||
|
Guide rail
|
Taiwan Hiwin 25mm Linear rail
|
|
|
|
|||
|
Working Table
|
T slot Vacuum table 6 And T clamp combination
|
|
|
|
|||
|
Spindle
|
9.0kw ATC air cooling spindle
|
|
|
|
|||
|
Control system
|
Taiwan control system
|
|
|
|
|||
|
Motor
|
1.5kw servo motor
|
|
|
|
|||
|
Air pump
|
7.5KW
|
|
|
|
|||
|
Dust collector
|
4KW,double bags
|
|
|
|
|||
|
Inverter
|
HPMANT 11KW
|
|
|
|
|||
|
Spindle Speed
|
0-24000rpm/min
|
|
|
|
|||
|
Max. Rapid Travel Rate
|
45000mm/min
|
|
|
|
|||
|
Max. Working Speed
|
30000mm/min
|
|
|
|
|||
|
Command
|
G-code
|
|
|
|
|||
The surface of the vacuum table is multi-zoned, which allows the operator to easily switch from full-plate processing to smaller part processing (requiring smaller segmented areas). The area can be easily closed by the control valve on the front of the machine. The gasket can also be wired to adapt to various material sizes and styles.
It also includes a heavy-duty aluminum T-slot profile at multiple locations on the surface of the workbench. This T-slot can accommodate square M6 T-nuts.
The CNC router uses precision helical gear racks on the X and Y axis. The rack is installed upside down to help prevent dust and debris from accumulating on the drive system, thereby ensuring smooth movement and long-term reliability. The precision gearbox is directly connected to the stepper motor and pinion gear. This eliminates belt stretching errors and ensures high-speed processing while the system accurately positions the spindle.
Vacuum worktable in European standard are used in this ATC router table CNC for carpentry, positioning cylinder can be added which make material positioning easily and fast.
the machine service life longer.
foundation remains true and steady over the operational life of the machine.
Application
ATC cnc woodworking machine is a specially designed for user who has high standard, high demand, high degree of automation.toward the CNC machine.
Which is suitable for all kinds of solid wood,MDF,composite board, hard plastic, artificial marble, acrylic and other materials batch processing.
Which is suitable for all kinds of solid wood,MDF,composite board, hard plastic, artificial marble, acrylic and other materials batch processing.
