Quick Details
-
Model Number:
-
ISM60
-
Work Time (h):
-
24 hours
-
Max PV Voltage:
-
150v
-
Certificate:
-
ce/fcc/rhos
-
Warranty:
-
2 years, 2 Years
-
Solar System Voltage:
-
12V/24V/36V/48V Auto work
-
Max.Conversion Efficiency:
-
97.5%
-
Low voltage reconnect voltage:
-
12.5V
-
Enclosure:
-
IP20
-
Ambient operating temperature:
-
-25℃~60℃
-
Storage Temperature:
-
-40℃~80℃
-
Humidity:
-
100% non-condensing
Quick Details
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
ISM60
-
Work Time (h):
-
24 hours
-
Max PV Voltage:
-
150v
-
Certificate:
-
ce/fcc/rhos
-
Warranty:
-
2 years, 2 Years
-
Solar System Voltage:
-
12V/24V/36V/48V Auto work
-
Max.Conversion Efficiency:
-
97.5%
-
Low voltage reconnect voltage:
-
12.5V
-
Enclosure:
-
IP20
-
Ambient operating temperature:
-
-25℃~60℃
-
Storage Temperature:
-
-40℃~80℃
-
Humidity:
-
100% non-condensing

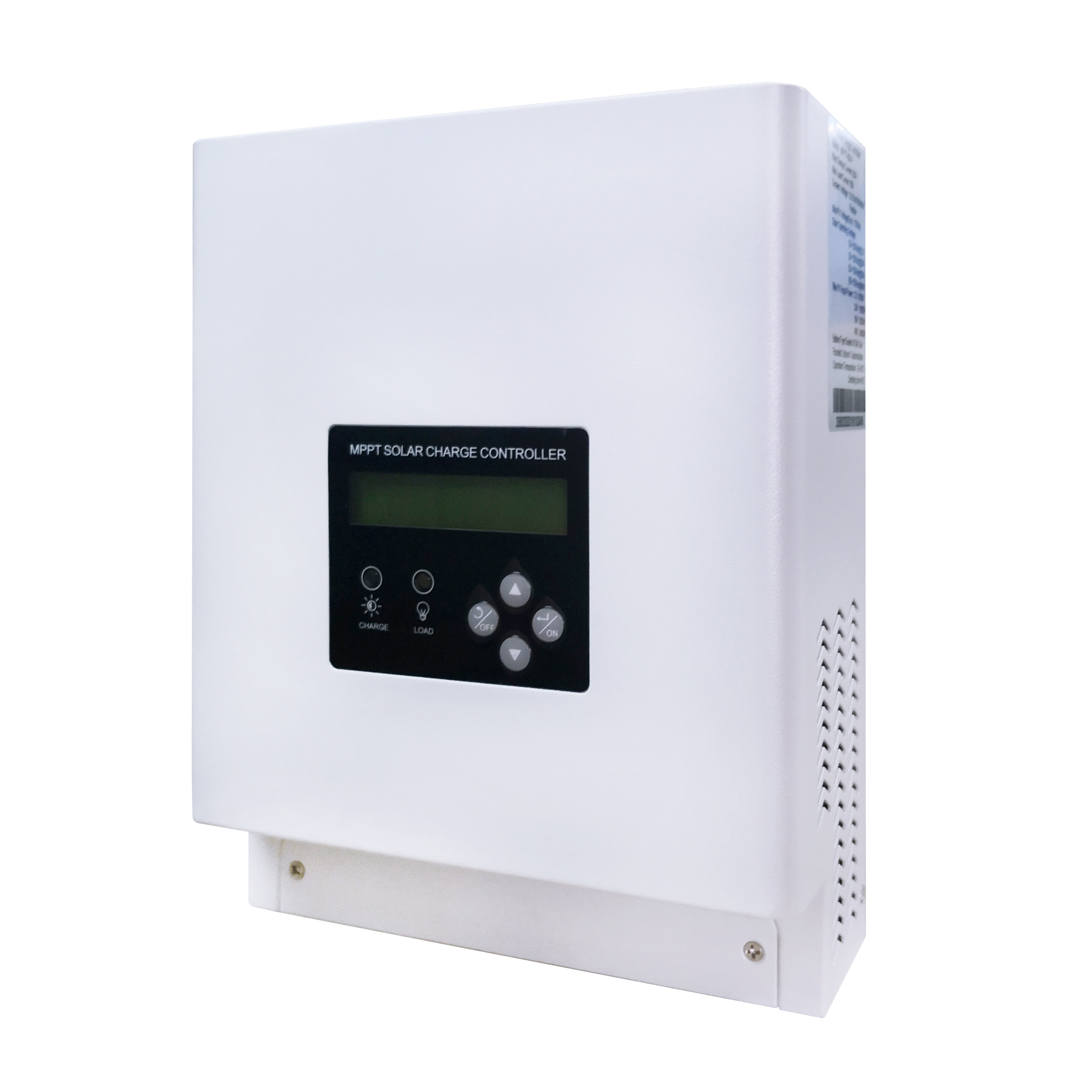

12v 24v 36v 48v solar system mppt charge controller 60 amp
|
Model |
ISM30A | ISM40A | ISM50A | ISM60A |
|
PV Operating Voltage |
18~100Vdc@12V 35~100Vdc@24V 50~100Vdc@36V 60~100Vdc@48V |
18 ~150Vdc@12V 35~150Vdc@24V 60~150Vdc@48V |
||
|
Max. PV input power |
12V 400W |
12V 600W |
12V 700W |
12V 900W |
|
24V 800W |
24V 1200W |
24V 1400W |
24V 1800W | |
|
36V 1300W |
36V 1700W |
/ | / | |
|
48V 1700W |
48V 2300W |
48V 3400W |
48V 3400W | |
|
Rated input current |
30A |
40A |
50A |
60A |
|
Self consumption |
2W |
3W |
||
|
Protection |
PV array short circuit, over charging,battery reverse polarity,output short circuit |
|||
|
Battery charging |
||||
|
Battery Type |
Sealed Gel AGM Flooded Lithium Battery |
Sealed Gel AGM Flooded |
||
|
Charge algorithm |
4 stage: Bulk, Absorption, Float, Equalize charging |
3 stage: Bulk, Absorption, Float |
||
|
Bulk charge voltage |
Sealed: 14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V |
|||
|
Float charge voltage |
Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V |
|||
|
Communication |
||||
|
Communication Port |
RS485 |
RS485(Standard) Ethernet RS232 Optional with On line monitoring system |
||
|
Physical |
||||
|
Net weight |
2kg |
3kg |
||
|
Gross weight |
2.2kg |
4kg |
||
|
Dimension |
410*220*62MM |
280*180*89MM |
||
|
Cooling |
Dual fan cooling |
Fan cooling |
||
|
Environment |
||||
|
*Technical data for 12V system at 25℃, twice in 24V system rate, triple in 36V System rate and quaduple in 48V system rate |
||||
