Name: Contral Handle
Design: By FEIHU
Humanized contracl handle, including electric starting key and electric vibratory button, accelerator and forwarder and back line.
- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
KAMA
-
Travel Speed:
-
0-3km/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Feihu
-
Dimension(L*W*H):
-
1270*740*1080mm
-
Certification:
-
CE,GS
-
Frequency:
-
3300R.P.M
-
Model:
-
FHR-600A
-
Vibration frequency:
-
70HZ
-
Drive Type:
-
Hydraulic Drive
-
Starting mode:
-
Electric Starting
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
Diesel 9HP/ Gasoline 13HP
-
Weight:
-
0.8 TON
-
Engine Brand:
-
KAMA
-
Travel Speed:
-
0-3km/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Feihu
-
Dimension(L*W*H):
-
1270*740*1080mm
-
Certification:
-
CE,GS
-
Frequency:
-
3300R.P.M
-
Model:
-
FHR-600A
-
Vibration frequency:
-
70HZ
-
Drive Type:
-
Hydraulic Drive
-
Starting mode:
-
Electric Starting
-
After-sales Service Provided:
-
Video technical support
Product Description
Product Application
|

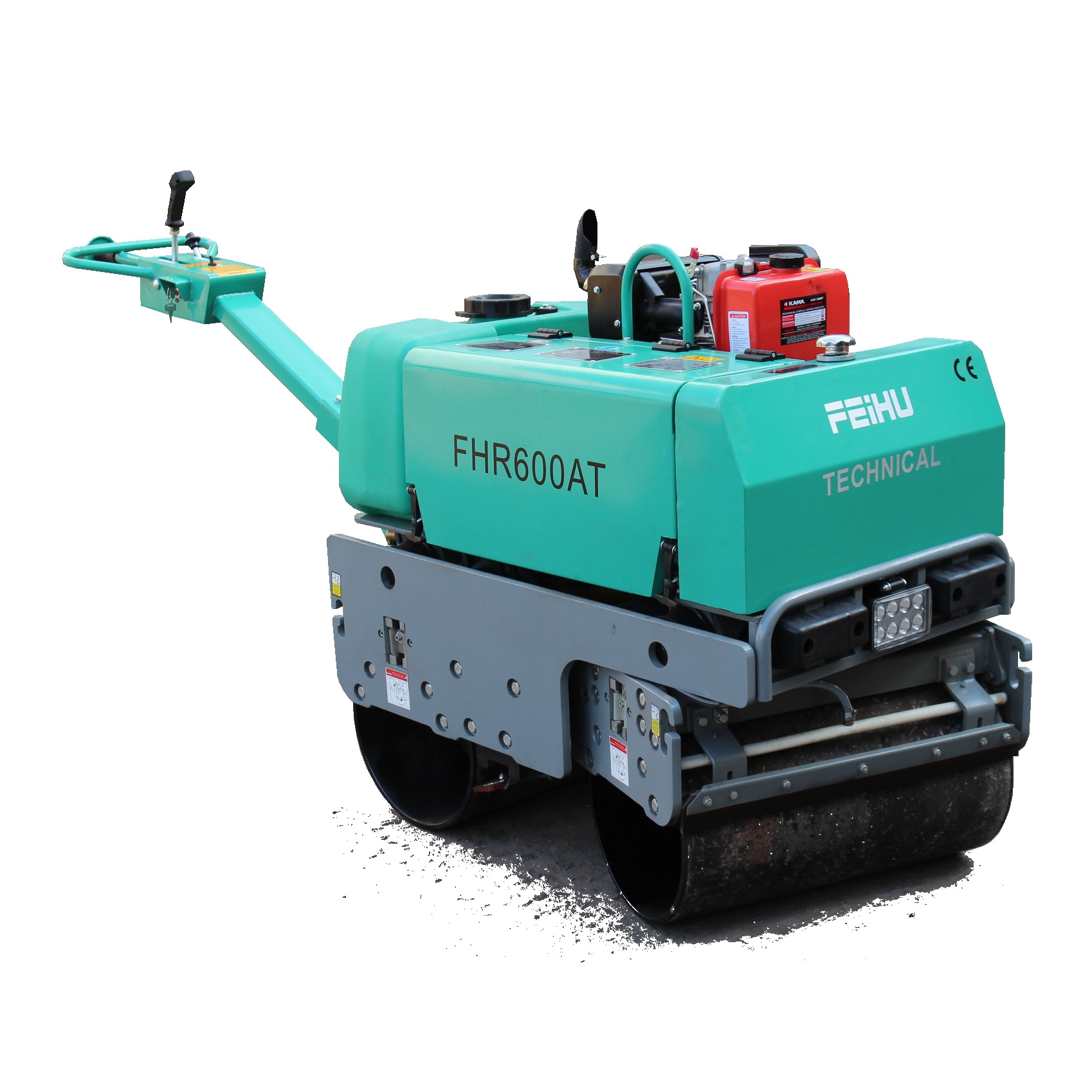

SPECIFICATIONS FHR-600A 630KG VIBRATORY ROLLER
|
|
|
|
|||
|
Engine
|
WATER COOLED DIESEL CP90
|
Kw/rpm
|
9HP/2400
|
|||
|
|
HONDA GX390 GASOLINE
|
Kw/rpm
|
13/3600
|
|||
|
|
KAMA 186 AIR COOLED DIESEL
|
L
|
9HP/3600
|
|||
|
Main performance parameters
|
Centrifugal Force
|
KN
|
5.9/4.0
|
|||
|
|
Travel speed (max. & min.)
|
KM/H
|
<=5
|
|||
|
|
Max. Climbing Capacity
|
°
|
30
|
|||
|
Hydraulic system
|
Hydraulic system
|
L
|
25
|
|||
|
|
Main pump
|
L
|
40
|
|||
|
|
Weight
|
KG
|
630
|
|||
|
SPECIFICATIONS FHR-700A 730KG VIBRATORY ROLLER
|
|
|
|
|||
|
Engine
|
WATER COOLED DIESEL CP90
|
Kw/rpm
|
9HP/2400
|
|||
|
|
HONDA GX390 GASOLINE
|
Kw/rpm
|
13/3600
|
|||
|
|
KAMA186 AIR COOLED DIESEL
|
L
|
9HP/3600
|
|||
|
Main performance parameters
|
Centrifugal Force
|
KN
|
5.9/4.0
|
|||
|
|
Travel speed (max. & min.)
|
KM/H
|
<=5
|
|||
|
|
Max. Climbing Capacity
|
°
|
30
|
|||
|
Hydraulic system
|
Hydraulic system
|
L
|
25
|
|||
|
|
Main pump
|
L
|
40
|
|||
|
|
Weight
|
KG
|
730
|
|||
|
SPECIFICATIONS FHR-600AT 680KG VIBRATORY ROLLER
|
|
|
|
|||
|
Engine
|
WATER COOLED DIESEL CP90
|
Kw/rpm
|
9HP/2400
|
|||
|
|
HONDA GX390 GASOLINE
|
Kw/rpm
|
13/3600
|
|||
|
|
KAMA186 AIR COOLED DIESEL
|
L
|
9HP/3600
|
|||
|
Main performance parameters
|
Centrifugal Force
|
KN
|
5.9/4.0
|
|||
|
|
Travel speed (max. & min.)
|
KM/H
|
<=5
|
|||
|
|
Max. Climbing Capacity
|
°
|
30
|
|||
|
Hydraulic system
|
Hydraulic system
|
L
|
25
|
|||
|
|
Main pump
|
L
|
40
|
|||
|
|
Weight
|
KG
|
680
|
|||
Main Features
1) JAPAN TUFF TORQ HYDRAULIC PUMP.
2) HYDRAULC MOTOR.
3) ELECTRIC CLUTCH.
4) PARKING BRAKE
5) PLASTIC WATER TANK .
Certifications
Detailed Images
CONTRAL HANDLE
JAPAN TUFF TORQ HYDRAULIC PUMP
Name: HYDRAULIC PUMP
Brand: TUFF TORQ
Original: JAPAN
Adopts TUFF TORQ static hydraulic drive device with stepless speed regulation,reverts conveniently and long life
ELECTRIC CLUTCH
Name:
ELECTRIC CLUTCH
Domestic famous electric clutch, strong driving force, long working time, one year quality guarantee.
PARKING BRAKE
Name:
Parking Brake
Professional design and easy to operate.
To keep safe when the machine parking at abrupt slope .
Our Service
Packing & Delivery
|
Packaging --- 700A model
|
|
|
|
Size
|
149(L) * 75 (W) * 115 (D)
|
|
|
Weight
|
730KG
|
|
|
Packaging Details
|
|
|
