Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowell
-
Application:
-
3d printing
-
Dimension(L*W*H):
-
Max printing size 1950*1200*1600mm
-
Voltage:
-
110V/220V
-
Weight:
-
260 KG
-
Support material:
-
PLA/ABS/ASA/PETG/PVA/TPU
-
Product name:
-
3D Printer Machine
-
Print speed:
-
0-300mm/s
-
Nozzle diameter:
-
0.4mm/0.6mm/0.8mm/1.0mm
-
Slice Software:
-
Dowell3D/Cura/Simplify3D
-
Print Technology:
-
FDM
-
File Format:
-
STL OBJ G-Code
-
Filament Diameter:
-
1.75mm
-
Connectivity:
-
SD Card USB
-
Printing size:
-
600*600*600 to1950*1200*1600mm
Quick Details
-
Production Capacity:
-
100%
-
Year:
-
2023
-
Forming size:
-
600*600*600mm, 1950*1200*1600mm, 800*800*800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowell
-
Application:
-
3d printing
-
Dimension(L*W*H):
-
Max printing size 1950*1200*1600mm
-
Voltage:
-
110V/220V
-
Weight:
-
260 KG
-
Support material:
-
PLA/ABS/ASA/PETG/PVA/TPU
-
Product name:
-
3D Printer Machine
-
Print speed:
-
0-300mm/s
-
Nozzle diameter:
-
0.4mm/0.6mm/0.8mm/1.0mm
-
Slice Software:
-
Dowell3D/Cura/Simplify3D
-
Print Technology:
-
FDM
-
File Format:
-
STL OBJ G-Code
-
Filament Diameter:
-
1.75mm
-
Connectivity:
-
SD Card USB
-
Printing size:
-
600*600*600 to1950*1200*1600mm

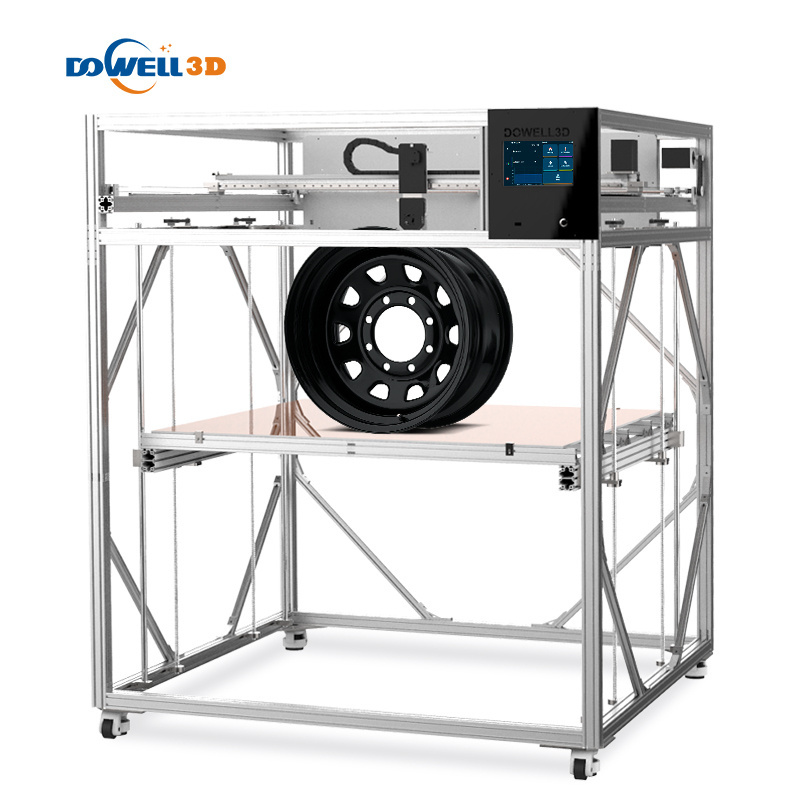

Continuous innovation, high-quality industrial 3D printers
large printing size dual extruder 3d printing machine cheap price digital high temperature industrial 3d printer
Dowell3d is a manufacturer with 10 years of R&D, production and export of large-scale industrial 3D printers. It has hundreds of easy-to-use large-format 3D printers, specially designed for industrial applications.
After years of upgrading and transformation, the Dowell 3D printer DM series has become a very mature and stable machine. It has a space-aware body and an intelligent operating system, suitable for producing high-quality parts in any environment, Whether it is a factory tool, a prototype or an end-use part, the Dowell 3d printer is a durable and cost-effective best machine for manufacturing large-scale, high-quality parts.
Communication and Maintenance
Dowell 3d printer is equipped with remote maintenance modules to analyze possible anomalies and to reduce the possibility of downtime for the advantage of productivity. The remote management feature includes sending software updates to allow the DOWELL 3D Printer to evolve over time, acquiring new features, parameters, and intelligence.
User's Feedback
Product Description
|
Model
|
DM8
|
|
|
|
Printing size
|
800*800*800mm
|
|
|
|
Frame:
|
40mm aluminum section
|
|
|
|
Operation Firmware:
|
R&D based on Klipper
|
|
|
|
Movement of X&Y axis:
|
High precision linear rail
|
|
|
|
Movement of bed:
|
4 X screw rods & 2 X roller rods
|
|
|
|
Filament feeder:
|
Near end
|
|
|
|
Printing bed:
|
6mm tempered glass
|
|
|
|
Heating bed:
|
With digital temperature controller
|
|
|
|
Bed temperature:
|
0-100°c (optional 150°c)
|
|
|
|
Nozzle size:
|
0.4, 0.6, 0.8, 1.0mm
|
|
|
|
Nozzle temperature
|
0-420c
|
|
|
|
Operation Interface:
|
7" TFT full Color
|
|
|
|
Voltage:
|
110V/220V
|
|
|
|
Positional accuracy:
|
0.02mm
|
|
|
|
Layer accuracy:
|
0.04-0.6mm
|
|
|
|
Slicing software:
|
Dowell3d / Cura / or other similar software
|
|
|
|
Input format:
|
STL/OBJ/Gcode/JPG
|
|
|
|
Filament diameter:
|
1.75mm
|
|
|
|
Connection:
|
U disk/SD Card/ Wifi
|
|
|
|
Standard functions:
|
*Auto leveling *filament sensor *
auto power off *
nozzle anti-collision
*Visible Printing status *Z-offset adjustment *Visible temperature graph *Accelerations *Configuration editable *Remote control
*External camera can be installed *Gcode viewer
*History Record *Emergency stop button
|
|
|
|
Customization Options:
|
1. Larger extruder
2. Dual extruder
3. Dual feeder one nozzle
4. X,Y module movement
5. Constant temperature enclosure
6. Printing size
|
|
|
One key auto leveling help you easy operate
1. First, 4 corners auto-level independently.
2. Then 8*8=64 points on the whole bed automatic detection platform flatness. Through the independent 4 screw automatic adjustment to achieve the true automatic leveling.
Ball screw & liner guide rails
X axis and Y axis linear guides have high accuracy and long service life.Z-axis ball screw converts rotary motion into linear motion, with high transmission accuracy and low friction resistance, ensuring the accuracy and stability during printing.
6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms
Silent drive & strong motor
At the same time with silent and efficient two advantages, effectively reduce work noise
420°c high temperature nozzle
Dowell3D's self-developed 420-c high temperature nozzle is compatible with a wide range of materials
WiFi connection
The operation interface is 7 inch full color large screen, it is conveniet to operate.
7 Inch Large Screen & Multiple languages
Large display interface, touch sensitive, 4 background colors can be adjusted,
Print process, temperature, speed can be seen in real time.
Customzaiton Options
In addition to the basic features, Dowell3d printer offer customized services to add more fun to your printing work.
Wide Choice of Printing Size
Besides the standard sizes below, you can also contact us to customize your preferred print size.
