Quick Details
-
Model Number:
-
203030-3.7V-100mAh battery cell
-
Battery Size:
-
203030
-
Place of Origin:
-
China
-
Weight:
-
5.5±0.5g, 5.5±0.5g
-
The charging ratio:
-
0.2C to 0.5C rate
-
The discharge rate:
-
0.2C to 1.0C rate
-
Type:
-
Small and tiny rechargeable battery
-
01 Application:
-
Small consumer electronic product/Medical Devices/Power cards
-
02 Application:
-
Small device/Wearable devices
-
Cycle Life Test:
-
Not less than 300 Times
-
Minimum Capacity:
-
100mAh
-
Max charge current:
-
100mA(1C)
-
Max discharge current:
-
100mA(1C)
-
Operating Temperature(Charging):
-
0 degree centigrade to 45 degree centigrade
-
Operating Temperature(Discharging):
-
-10 degree centigrade to 60 degree centigrade
Quick Details
-
Anode Material:
-
LCO
-
Application:
-
Consumer Electronics, Wearable smart device
-
Brand Name:
-
OEM or ODM brand
-
Model Number:
-
203030-3.7V-100mAh battery cell
-
Battery Size:
-
203030
-
Place of Origin:
-
China
-
Weight:
-
5.5±0.5g, 5.5±0.5g
-
The charging ratio:
-
0.2C to 0.5C rate
-
The discharge rate:
-
0.2C to 1.0C rate
-
Type:
-
Small and tiny rechargeable battery
-
01 Application:
-
Small consumer electronic product/Medical Devices/Power cards
-
02 Application:
-
Small device/Wearable devices
-
Cycle Life Test:
-
Not less than 300 Times
-
Minimum Capacity:
-
100mAh
-
Max charge current:
-
100mA(1C)
-
Max discharge current:
-
100mA(1C)
-
Operating Temperature(Charging):
-
0 degree centigrade to 45 degree centigrade
-
Operating Temperature(Discharging):
-
-10 degree centigrade to 60 degree centigrade
1. 203030-3.7V-100mAh super thin, ultra tiny and mini size battery Primary Technology Prameters:
|
Item |
Content |
Note |
||
|
Capacity |
Nominal |
100mAh |
Discharge:0.2CmA |
|
|
Minimum |
95mAh |
|||
|
Energy |
0.370Wh |
|
||
|
Nominal Voltage |
3.70V |
|
||
|
OverCharge Protection Voltage |
4.25V |
|
||
|
AC Impedance Resistance |
not more than 350mΩ |
|
||
|
Charging Current (Std.) |
20mA |
0.2CmA |
||
|
Charging Current (Max.) |
100mA |
1CmA |
||
|
Charging Voltage |
4.20V |
|
||
|
Charging Time (Std.) |
Approx 6h |
Charge: 5.0mA |
||
|
Discharging Current (Std) |
20.0mA |
0.2CmA |
||
|
Discharging Current (Max) |
100mA |
1CmA |
||
|
Discharge Cut-off Voltage |
3.00V |
|
||
|
Operating Temperature |
Charge |
0~+45℃ |
|
|
|
Discharge |
-10~+60℃ |
|
||
|
Storage Temperature |
less than 1 month |
-10~+45℃ |
Percentage of recoverable capacity 80% |
|
|
less than 6 months |
-10~+35℃ |
|||
|
Storage Voltage |
3.70~3.90V |
|||
2. Dimension of ultra tiny battery cell 203030-3.7V-100mAh battery cell only
|
Mark |
Description |
Dimension Specification |
|
T |
Thickness |
Max 2.00mm |
|
W |
Width |
Max 30.50mm |
|
L |
Length |
Max 30.50mm |
|
A |
Outing length of lead |
7±2mm |
|
B |
Center Distance between two leads |
20±2mm |
|
C |
Width of lead |
1.0±0.2mm |
|
D |
The distance length from main battery cell to top sealed location |
2.0±0.5mm |

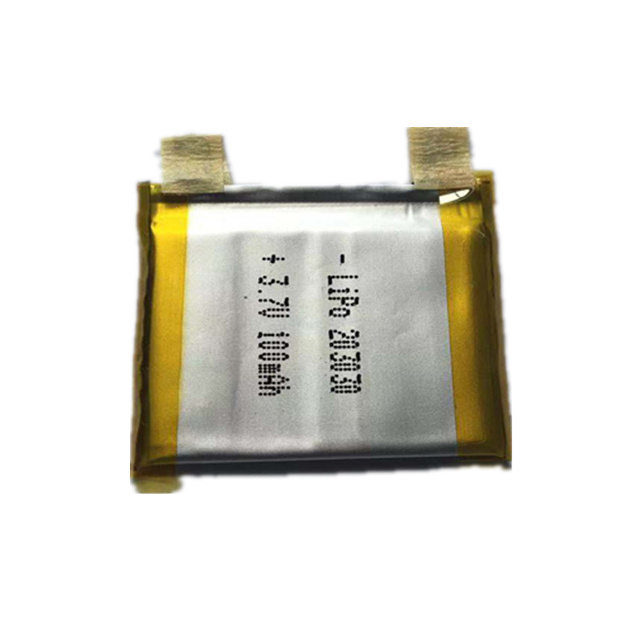

3. 203030-3.7V-100mAh battery cell Picutures as blow:
4. Ultra thin battery model list and customized thin battery can be made according to your requirement
Ultra-thin lipo rechargeable model list:
LiPo032525-3.7V-10mAh thickness 0.3mm,
LiPo032550-3.7V-20mAh thickness 0.40mm,
LiPo041322-3.7V-3mAh thickness 0.50mm,
LiPo042525-3.7V-10mAh thickness 0.50mm,
LiPo042330-3.7V-12mAh thickness 0.50mm,
LiPo042550-3.7V-25mAh thickness 0.50mm,
LiPo043838-3.7V-35mAh thickness 0.50mm,
LiPo052026-3.7V-10mAh thickness 0.60mm,
LiPo052525-3.7V-12mAh thickness 0.60mm,
LiPo054560-3.7V-90mAh thickness 0.60mm,
LiPo084646-3.7V-85mAh Thickness 0.82mm,
LiPo044040-3.7V-65mAh Thickness 0.45mm,
LiPo101010-3.7V-3mAh Thickness 1.30mm,
LiPo201010-3.7V-8mAh Thickness 2.10mm,
LiPo04125130-3.7V-300mAh Thickness 0.45mm,
LiPo152060-3.7V-135mAh Thickness 1.50mm,
LiPo120736-3.7V-15mAh Thickness 1.30mm,
LiPo043040-3.7V-25mAh Thickness 0.45mm,
LiPo043030-3.7V-18mAh Thickness 0.45mm,
LiPo073525-3.7V-40mAh Thickness 0.72mm,
LiPo042232-3.7V-15mAh Thickness 0.45mm,
LiPo044040-3.7V-30mAh Thickness 0.45mm,
LiPo052346-3.7V-15mAh Thickness 0.45mm,
LiPo054050-3.7V-45mAh Thickness 0.50mm,
LiPo071923-3.7V-13mAh Thickness 0.70mm,
LiPo091224-3.7V-8mAh Thickness 0.90mm,
LiPo102323-3.7V-28mAh Thickness 1.00mm,
LiPo103333-3.7V-60mAh Thickness 1.00mm,
LiPo104038-3.7V-100mAh Thickness 1.00mm,
LiPo150630-3.7V-18mAh Thickness 1.50mm,
LiPo151020-3.7V-18mAh Thickness 1.50mm,
LiPo183248-3.7V-220mAh Thickness 1.80mm,
LiPo152040-3.7V-100mAh Thickness 1.50mm,
LiPo180925-3.7V-25mAh Thickness 1.80mm,
LiPo103050-3.7V-100mAh Thickness 1.00mm,
LiPo182550-3.7V-175mAh Thickness 1.80mm,
LiPo042255-3.7V-25mAh Thickness 0.45mm,
LiPo054050-3.7V-45mAh Thickness 0.50mm,
LiPo064525-3.7V-45mAh Thickness 0.60mm,
LiPo043228-3.7V-15mAh Thickness 0.45mm,
LiPo072620-3.7V-14mAh thickness 0.75mm,
LiPo072822-3.7V-20mAh thickness 0.75mm,
LiPo074640-3.7V-60mAh thickness 0.8mm,
LiPo075055-3.7V-130mAh thickness 0.8mm,
LiPo082620-3.7V-16mAh thickness 0.85mm,
LiPo084545-3.7V-100mAh thickness 0.85mm,
LiPo085055-3.7V-165mAh thickness 0.9mm,
LiPo092630-3.7V-35mAh thickness 0.95mm,
LiPo093535-3.7V-50mAh thickness 0.95mm,
LiPo093838-3.7V-60mAh thickness 0.96mm,
LiPo094241-3.7V-52mAh thickness 0.9mm,
LiPo093945-3.7V-90mAh thickness 0.95mm,
LiPo094660-3.7V-100mAh thickness 0.95mm,
LiPo093030-3.7V-50mAh thickness 0.9mm,
LiPo155050-3.7V-100mAh thickness 1.5mm,
LiPo032060-3.7V-20mAh thickness 0.3mm,
LiPo032749-3.7V-24mAh thickness 0.3mm,
LiPo121515-3.7V-20mAh thickness 1.2mm,
LiPo223048-3.7V-220mAh thickness 2.2mm,
LiPo254150-3.7V-500mAh thickness 2.5mm and so on.
LiPo032525-3.7V-10mAh thickness 0.3mm,
LiPo032550-3.7V-20mAh thickness 0.40mm,
LiPo041322-3.7V-3mAh thickness 0.50mm,
LiPo042525-3.7V-10mAh thickness 0.50mm,
LiPo042330-3.7V-12mAh thickness 0.50mm,
LiPo042550-3.7V-25mAh thickness 0.50mm,
LiPo043838-3.7V-35mAh thickness 0.50mm,
LiPo052026-3.7V-10mAh thickness 0.60mm,
LiPo052525-3.7V-12mAh thickness 0.60mm,
LiPo054560-3.7V-90mAh thickness 0.60mm,
LiPo084646-3.7V-85mAh Thickness 0.82mm,
LiPo044040-3.7V-65mAh Thickness 0.45mm,
LiPo101010-3.7V-3mAh Thickness 1.30mm,
LiPo201010-3.7V-8mAh Thickness 2.10mm,
LiPo04125130-3.7V-300mAh Thickness 0.45mm,
LiPo152060-3.7V-135mAh Thickness 1.50mm,
LiPo120736-3.7V-15mAh Thickness 1.30mm,
LiPo043040-3.7V-25mAh Thickness 0.45mm,
LiPo043030-3.7V-18mAh Thickness 0.45mm,
LiPo073525-3.7V-40mAh Thickness 0.72mm,
LiPo042232-3.7V-15mAh Thickness 0.45mm,
LiPo044040-3.7V-30mAh Thickness 0.45mm,
LiPo052346-3.7V-15mAh Thickness 0.45mm,
LiPo054050-3.7V-45mAh Thickness 0.50mm,
LiPo071923-3.7V-13mAh Thickness 0.70mm,
LiPo091224-3.7V-8mAh Thickness 0.90mm,
LiPo102323-3.7V-28mAh Thickness 1.00mm,
LiPo103333-3.7V-60mAh Thickness 1.00mm,
LiPo104038-3.7V-100mAh Thickness 1.00mm,
LiPo150630-3.7V-18mAh Thickness 1.50mm,
LiPo151020-3.7V-18mAh Thickness 1.50mm,
LiPo183248-3.7V-220mAh Thickness 1.80mm,
LiPo152040-3.7V-100mAh Thickness 1.50mm,
LiPo180925-3.7V-25mAh Thickness 1.80mm,
LiPo103050-3.7V-100mAh Thickness 1.00mm,
LiPo182550-3.7V-175mAh Thickness 1.80mm,
LiPo042255-3.7V-25mAh Thickness 0.45mm,
LiPo054050-3.7V-45mAh Thickness 0.50mm,
LiPo064525-3.7V-45mAh Thickness 0.60mm,
LiPo043228-3.7V-15mAh Thickness 0.45mm,
LiPo072620-3.7V-14mAh thickness 0.75mm,
LiPo072822-3.7V-20mAh thickness 0.75mm,
LiPo074640-3.7V-60mAh thickness 0.8mm,
LiPo075055-3.7V-130mAh thickness 0.8mm,
LiPo082620-3.7V-16mAh thickness 0.85mm,
LiPo084545-3.7V-100mAh thickness 0.85mm,
LiPo085055-3.7V-165mAh thickness 0.9mm,
LiPo092630-3.7V-35mAh thickness 0.95mm,
LiPo093535-3.7V-50mAh thickness 0.95mm,
LiPo093838-3.7V-60mAh thickness 0.96mm,
LiPo094241-3.7V-52mAh thickness 0.9mm,
LiPo093945-3.7V-90mAh thickness 0.95mm,
LiPo094660-3.7V-100mAh thickness 0.95mm,
LiPo093030-3.7V-50mAh thickness 0.9mm,
LiPo155050-3.7V-100mAh thickness 1.5mm,
LiPo032060-3.7V-20mAh thickness 0.3mm,
LiPo032749-3.7V-24mAh thickness 0.3mm,
LiPo121515-3.7V-20mAh thickness 1.2mm,
LiPo223048-3.7V-220mAh thickness 2.2mm,
LiPo254150-3.7V-500mAh thickness 2.5mm and so on.
Ultra-thin CP Li-MnO2 Primary Lithium Battery Model List:
CP042722-3.0V-15mAh thickness 0.4mm,
CP042922-3.0V-17mAh thickness 0.4mm,
CP042039-3.0V-25mAh thickness 0.4mm,
CP042345-3.0V-36mAh thickness 0.4mm,
CP052727-3.0V-22mAh thickness 0.5mm,
CP052922-3.0V-24mAh thickness 0.5mm,
CP052039-3.0V-35mAh thickness 0.5mm,
CP052345-3.0V-52mAh thickness 0.5mm,
CP054248-3.0V-100mAh thickness 0.5mm,
CP082922-3.0V-100mAh thickness 0.8mm,
CP084248-3.0V-320mAh thickness 0.8mm,
CP092030-3.0V-50mAh thickness 0.9mm,
CP124920-3.0V-160mAh thickness 1.2mm,
CP142828-3.0V-160mAh thickness 1.4mm, CP153030-3.0V-170mAh thickness 1.5mm, CP162235-3.0V-170mAh thickness 1.6mm, CP164548-3.0V-700mAh thickness 1.6mm and so on.
5. Application Fields
Those ultra tiny and thin battery are applied in sensors, labels, medical devices, power cards, smart cards, active RFID, wearable devices, message device, e-ink displays, RFID, Credit cards, key tag, cards and so on.
Currently, those thin batteries are already exported to America, France, Germany, Australia and 50 other countries and regions.
6. How to have a order?
(1)Online talk or inquire by email to confirm order(quantities, color, payment terms, delivey time etc.)
(2)Sales will make the Proforma Invoice(PI) and send it to your email address.
(3)Customer or client will make the payment against the Proforma Invoice(PI).
(4)We will start the order when we have received the payment.
(5)We will inform our customer or client purchase order situation timely.
(6)We will arrange shipment after 100% payment confirmed.
7. FAQ
Question: Do you have current sample in stock usually?
Answer: Usually, we don't have samples in stock because different customers have different requirement, even the voltage and capacity are the same, other parameters maybe different. Well, we could finish your sample once our customer or client order confirmed.
