Quick Details
-
Brand Name:
-
FIRSTAR
-
Color:
-
white
-
Shape:
-
customize
-
Usage:
-
Pipe liner
-
Size:
-
Customized
-
Certificate:
-
ISO9001:2008
-
Density:
-
3.6g/cm3
-
Keywords:
-
Ceramic
-
Package:
-
Pallet
-
MOQ:
-
1 Ton
-
Alumina Content:
-
92%95% 99%
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
CUSTOMIZE
-
Brand Name:
-
FIRSTAR
-
Color:
-
white
-
Shape:
-
customize
-
Usage:
-
Pipe liner
-
Size:
-
Customized
-
Certificate:
-
ISO9001:2008
-
Density:
-
3.6g/cm3
-
Keywords:
-
Ceramic
-
Package:
-
Pallet
-
MOQ:
-
1 Ton
-
Alumina Content:
-
92%95% 99%

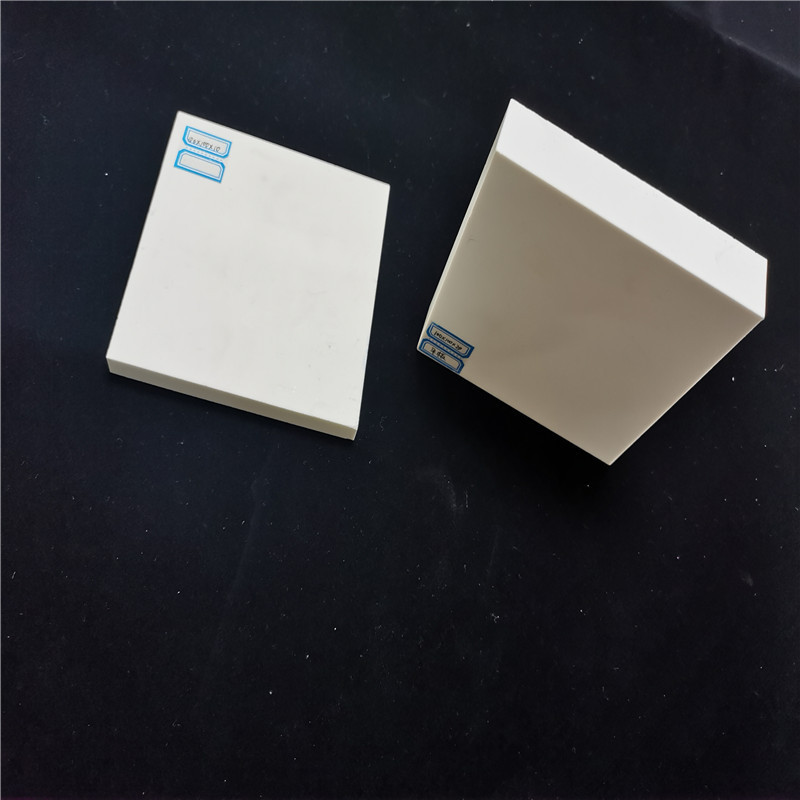

Wholesaler Wear Resistant Alumina Ceramic Tile Liner used for mining
|
Category |
92 Series |
95 Series |
T 95 Series |
99 Series |
ZTA |
ZrO2 |
|
Al 2 O 3 |
≥92% |
≥95% |
≥ 95% |
≥ 99% |
≥75% |
/ |
|
Fe2O3 |
≤0.25 |
≤0.15 |
≤0.15 |
≤0.1 |
|
/ |
|
ZrO2+Ye2O3 |
/ |
/ |
/ |
/ |
≥23% |
≥99.8% |
|
Density |
> 3.60g/cm 3 |
> 3.65g/cm 3 |
> 3.70g/cm 3 |
> 3.80g/cm 3 |
> 4.10g/cm 3 |
> 5.90g/cm 3 |
|
HV Hardness N/mm2(MPa) |
980 |
1040 |
1100 |
1250 |
1360 |
1100 |
|
Bending Strength MPa |
260 |
280 |
320 |
350 |
400 |
1000 |
|
Compression strength MPa |
1150 |
1200 |
1250 |
1300 |
1400 |
/ |
|
Fracture Toughness MPam 1/2 |
3.68 |
3.72 |
3.94 |
4.5 |
5.5 |
7 |
|
Wear Volume |
≤ 0.55cm 3 |
≤ 0.50cm 3 |
≤ 0.35cm 3 |
|
≤ 0.15cm 3 |
≤0.10cm 3 |
| pplication Industry from FIRSTAR | ||
| Industry | Equipment System | Equipment parts |
| Cement | Pre-blending system for crashing limestone and crude fuel | Chute,Bunker,Pulley lagging,discharge cone |
| Raw mill system | Feed chute,Retaining ring,Scraper plate,Seal ring,Pipeline,Bucket guard,Cyclone,Powder concentrator body,Bunker | |
| Cement mill system | Chute,Bunker,Fan vane wheel,Fan casing,Cyclone,Circular duct,Conveyer | |
| Ball mill system | Pulverizer exhauster's body and vane wheel,Powder concentrator's body,Pulverized coal's pipeline,Hot air duct | |
| Sintering system | Inlet/Outlet bend,Wind value plate,Cyclone,Chute,Dust collector's pipe | |
| Afterheat system | Separator's pipeline and wall | |
| Steel | Raw material feeding system | Hopper,Silo |
| Batching system | Mixing bunker,Mixing barrel,Mixing disk,Disk pelletizer | |
| Sintered material transport system | Hopper,Silo | |
| Dedusting and Ash discharge system | Dedusting pipeline,Bend,Y-piece | |
| Coking system | Coke hopper | |
| Medium-speed mill | Cone,Separation buffles,Outlet pipe,Pulverized coal's pipeline,Burner cone | |
| Ball mill | Classifier,Cyclone separator,Bend,Powder concentrator's Inner shell | |
| Thermal power | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Orifice |
| Ball mill system | Separator's pipe,elbow and cone,Coal mill's elbow and straight tube | |
| Medium-speed mill | Coal mill body,Separation buffles,Cone,Pipeline,Elbow | |
| Fall mill | Pulverized coal's Pipeline and Elbow | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Ash discharge system | Fan duster's shell,Pipeline | |
| Port | Transporting material system | Bucket wheel machine's disk and hopper,Transfer point's hopper,Unloader's hopper, |
| Smelting | Transporting material system | Measuring hopper,Coke hopper,Vibrating screen's chute,Head valve,Intermediate Bin,Tail bin |
| Batching system | Batch hopper,Mixing machine | |
| Burning system | Ash bucket,Pump calcine tube,Hopper | |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Chemical | Transporting material system | Hopper,Silo |
| Dedusting system | Dedusting's Pipeline and Elbow | |
| Processing equipment | Vibromill liner | |
| Coal | Coal handling system | Bucket wheel machine,Coal Hopper,Coal Feeder,Silo |
| Coal washing system | Hydrocyclone | |
| Mining | Transporting material system | Hopper,Silo |
