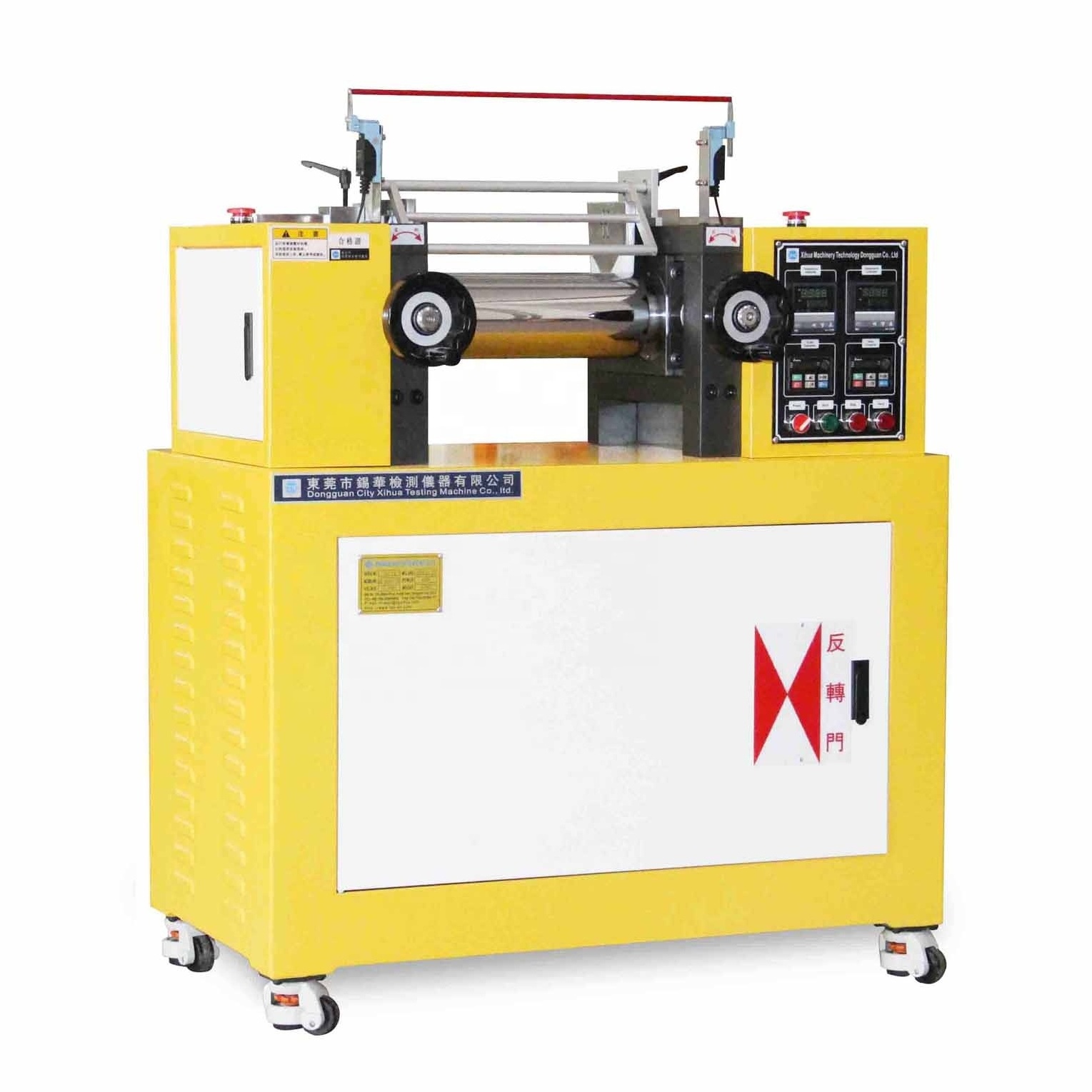

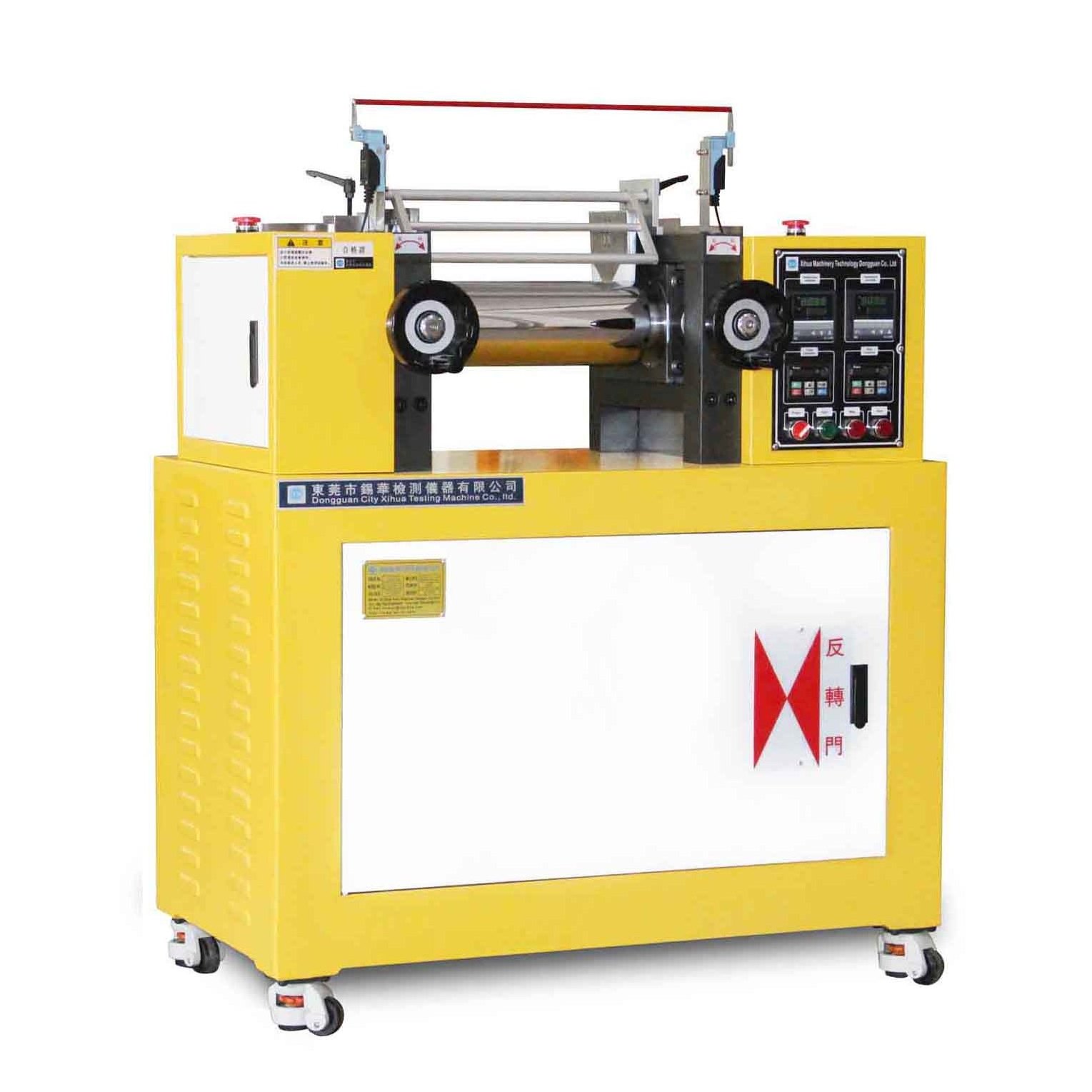

The machine is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.
|
XH-401BE Technical Parameter
|
|
|
|
|||
|
Applicable materials
|
PP, PE, PVC, rubber, etc.
|
|
|
|||
|
Mixing capacity
|
0.5-1kgs or designated
|
|
|
|||
|
Roller diameter
|
120mm or designed
|
|
|
|||
|
Roller width
|
350mm or designed
|
|
|
|||
|
Roller gap
|
0.1 - 5mm (adjustable)
|
|
|
|||
|
Speed of front roller
|
0 - 30r/min(single-frequency limitless speed change)
|
|
|
|||
|
Speed of back roller
|
18r/min
|
|
|
|||
|
Temperature range of the roller
|
room temperature - 300°C
|
|
|
|||
|
Temperature control accuracy
|
±2°C
|
|
|
|||
|
Heating mode
|
electrical heating
|
|
|
|||
|
Safety device
|
protective cover, safety lever, reverse door, emergency stop button
|
|
|
|||
|
Motor
|
1HP
|
|
|
|||
|
Power supply
|
380V/50Hz/3 phases or Customerized
|
|
|
|||
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Name: Roll
Brand: XIHUA
Original: China
Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
Rubber and plastic is different. We will suggest the roller to you according to your material
Name:
Control Board
Brand:
XIHUA
Original:
China
It adopts Japanese RKC, LED temperature controller and high precision sensor,
Accurate and stable temperature
Speed of roller are easy to control by two frequency converter.
|
Packaging
|
|
|
|
Size
|
1200*650*1350mm
|
|
|
Weight
|
about 450kgs
|
|
|
Packaging Details
|
wooden cage
|
|
