Henan Bicowo PFK-D4 Three-phase Hyristors Switches

Henan Bicowo PFK-D4 Three-phase Hyristors Switches

FOB Reference Price: Get Latest Price

≥5 Pieces

US $85.7

≥100 Pieces

US $82.8

≥1000 Pieces

US $78.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PFK-D4

Warranty:: 3year

Thyristor switch:: capacitance

Quick Details

Type:: Smart capacitor

Place of Origin:: Henan, China

Brand Name:: Bicowo

Model Number:: PFK-D4

Warranty:: 3year

Thyristor switch:: capacitance

Product Overview

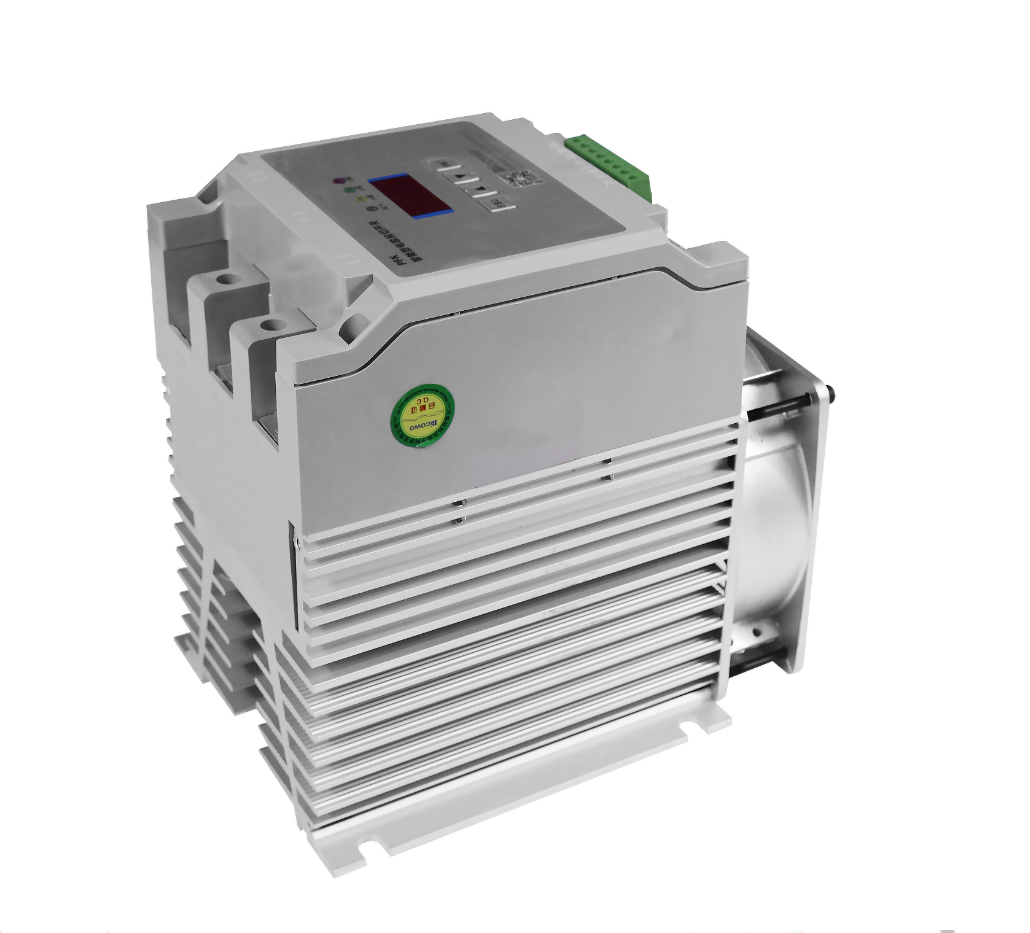

PFK-D4 Thyristor switch

This capacitor switching thyristor switch uses imported zero-crossing trigger chip to control the thyristor voltage when zero, and the current when zero, to ensure that the input capacitor has no inrush current. The effective protection circuit improves the anti-harmonic ability of the switch. Temperature control technology is used to reliably ensure that the thyristor works within the specified temperature range, and when there is a component failure or some reason to cause the heat sink temperature.When the degree exceeds the standard, the switch will automatically exit, effectively protecting the thyristor from damage;Full use of integrated circuits, as far as possible to reduce discrete components, so that the switch volume as reasonable and reduced, can reduce the cost of the entire cabinet;The anti-interference circuit design improves the anti-interference ability of the switch and effectively prevents the breakdown of thyristor caused by false triggering.Automatic capacitive potential equalization, to solve the problem of phase loss in the switching process; Electronic discharge circuit to speed up capacitor discharge;400V system, 660V system, please specify before ordering.

REVERSE WITHSTAND HIGH PRESSURE

STABLE QUALITY

STRONG RELIABILITY

TEMPERATURE CONTROL TECHNOLOGY

INTEGRATED CIRCUIT

ANTI-INTERFERENCE CIRCUIT DESIGN

TYPE DESCRIPTION

PFK-D4 Controllable switch

PFK-D2 Controllable switch

PFK-D3 Controllable switch

PRODUCT DISPIAY

PRODUCT SPECIFICATIONS

No	Product model	Matching capacitance	Voltage level	Overall dimension
1	PFK-D4-A-30△-0.45	30kvar	0.45kv	262160192
2	PFK-D4-A-40△-0.45	40kvar	0.45kv	262160192
3	PFK-D4-A-50△-0.45	50kvar	0.45kv	262160192
4	PFK-D4-A-60△-0.45	60kvar	0.45kv	262160192
5	PFK-D4-A-90△-0.45	90kvar	0.45kv	262160192
6	PFK-D4-A-30Y-0.25	30kvar	0.25kv	262160192
7	PFK-D4-A-40Y-0.25	40kvar	0.25kv	262160192
8	PFK-D4-A-50Y-0.25	50kvar	0.25kv	262160192
