Quick Details
-
Brand Name:
-
DYVAC
-
Voltage:
-
380V or customized
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Engineers Service Machinery Overseas
-
Technology:
-
Multi Arc + Sputtering
-
Advantage:
-
High Efficiency Low Cost
-
Chamber Material:
-
Stainless Steel 304
-
paint colo:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
controlling system:
-
PLC Touch Screen
-
business type:
-
manufacturer/supplier
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
pump system orign:
-
basis on your request
-
product:
-

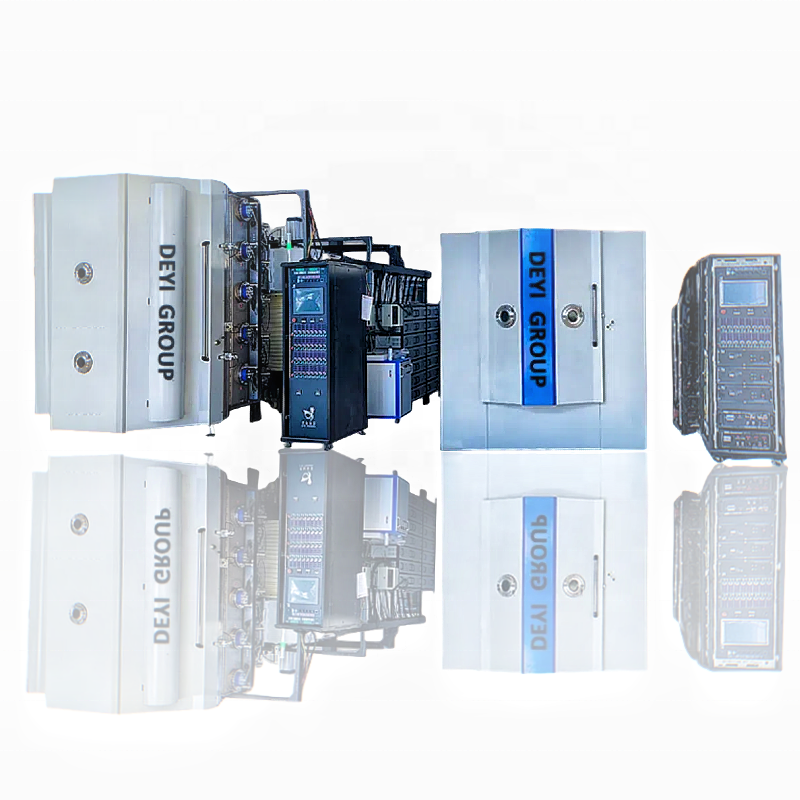

Magnetron sputtering vacuum coating Machine
Quick Details
-
Machine Type:
-
Coating Equipment,PVD vacuum coating machine, Coating Equipment
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DYVAC
-
Voltage:
-
380V or customized
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Engineers Service Machinery Overseas
-
Technology:
-
Multi Arc + Sputtering
-
Advantage:
-
High Efficiency Low Cost
-
Chamber Material:
-
Stainless Steel 304
-
paint colo:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
controlling system:
-
PLC Touch Screen
-
business type:
-
manufacturer/supplier
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
pump system orign:
-
basis on your request
-
product:
-
Magnetron sputtering vacuum coating Machine
Products Description
Main Configuration
Machine Parameter
|
DY Multi Arc Ion vacuum coating machine model and technical parameter
(hardware, cutlery etc ) |
|
|
|
|
|
|
||||||
|
model
|
DY-700
|
DY -900
|
DY -1000
|
DY -1250
|
DY -1400
|
DY -1600
|
||||||
|
Chamber size(mm)
|
Ф700×H900
|
Ф900×H1100
|
Ф1000×H1200
|
Ф1250×H1350
|
Ф1400×H1600
|
Ф1600×H1800
|
||||||
|
Power type
|
Arc power, filament power, pulse bias power
|
|
|
|
|
|
||||||
|
Vacuum chamber structure
|
Vertical front door structure, postposition sucking gas system, double layer water cooling chamber
|
|
|
|
|
|
||||||
|
Vacuum chamber material
|
High quality stainless steel chamber
|
|
|
|
|
|
||||||
|
Ultimate vacuum
|
6.0×10-4Pa
|
|
|
|
|
|
||||||
|
Pumping time(no load)
|
pumping from atmosphere to 8.0×10-3Pa≤15per minutes
|
|
|
|
|
|
||||||
|
Vacuum pumping system |
Diffusion or molecular pump+ Roots pump+ mechanical pump+ holding pump
(The detailed model need to collocate according to customer need) |
|
|
|
|
|
||||||
|
Arc power
|
4 sets or 6 sets
|
6 sets or 8 sets
|
8 sets or 10 sets
|
10 sets or 12 sets
|
14 sets or 16 sets
|
16 sets or 18 sets
|
||||||
|
Bias power
|
10KW/set
|
20KW/set
|
20KW/set
|
30KW/set
|
40KW/set
|
50KW/set
|
||||||
|
Workpiece rotating method
|
Planetary revolution and rotation, inverter control(controlled and adjustable)
|
|
|
|
|
|
||||||
Product Applications
customer photo
FAQ
Q1. How about the quality control about your products?
We have the ISO9001 QMS , CE certification. All machine will past theinternal quality test and field testing.
Q2. Does your company provide after-sale service ?
Yes. We have the field engineer to set-up and debug the machine . After the machine is fully running . we have one year of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Tongyi have more than 20 years of experience in vacuum coating territory. We also have an independent R&D department,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Tongyi are new . We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
Yes. We have the field engineer to set-up and debug the machine . After the machine is fully running . we have one year of quality warranty and full-life maintenance service .
Q3. Can you provide technical support about my work-flow?
Yes . The Tongyi have more than 20 years of experience in vacuum coating territory. We also have an independent R&D department,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
No. All machine in Tongyi are new . We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
Yes . We can supply you all the accessories especially for some consumable material .
