Quick Details
-
Brand Name:
-
HRUI
-
Model Number:
-
HR900-AF-82N
-
Place of Origin:
-
Guangdong, China
-

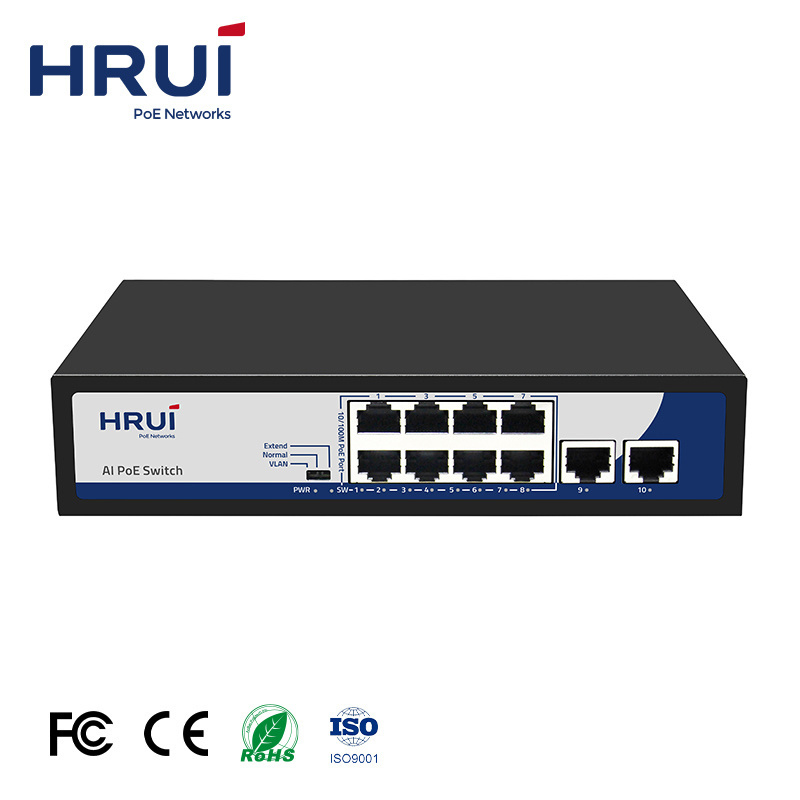

Product Name:
-
8 Ports 100M AI PoE Switch
-
PoE Standard:
-
IEEE802.3af/at
-
PoE Ports:
-
8*10/100Mbps PoE Ports
-
Uplink Ports:
-
2*10/100Mbps Uplink Ports
-
Feature:
-
VLAN,Extend,PoE Watchdog
-
Power Supply:
-
120W,52V2.3A
-
Working Temperature:
-
-10~50°C
-
Dimensions (W x D x H):
-
200*120*45mm
-
Weight:
-
0.6KG
-
Certification:
-
CE FCC RoHS
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2Gbps
-
Brand Name:
-
HRUI
-
Model Number:
-
HR900-AF-82N
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 Ports 100M AI PoE Switch
-
PoE Standard:
-
IEEE802.3af/at
-
PoE Ports:
-
8*10/100Mbps PoE Ports
-
Uplink Ports:
-
2*10/100Mbps Uplink Ports
-
Feature:
-
VLAN,Extend,PoE Watchdog
-
Power Supply:
-
120W,52V2.3A
-
Working Temperature:
-
-10~50°C
-
Dimensions (W x D x H):
-
200*120*45mm
-
Weight:
-
0.6KG
-
Certification:
-
CE FCC RoHS
Products Description
High performance and cost-effective commercial PoE switch. Flexible ports configuration, 8*10/100Mbps PoE Ports + 2*10/100Mbps RJ45
Uplink
Ports
. Comply with IEEE 802.3af/at protocol, providing maximum 30W power output and total PoE power budget 120W. Bandwidth
is up to 2Gbps. Advanced software features, supports VLAN, Extend 250m transmission, PoE watchdog. Surge 4KV, ESD 8KV,
-10℃～50℃ operation temperature, durable metal case and desktop design are well-suited for different environments.
Main Features
Product Paramenters
|
I/O Interface
|
|
|
|
|
||||
|
Power
|
Input: AC 100-240V, 50/60Hz
|
|
|
|
||||
|
Ethernet
|
4*10/100Mbps PoE Ports
2*10/100Mbps RJ45 Uplink Ports
|
|
|
|
||||
|
Performance
|
|
|
|
|
||||
|
Switching Capacity
|
1.2Gbps
|
|
|
|
||||
|
Throughput
|
0.8928Mpps
|
|
|
|
||||
|
Packet Buffer
|
448KB
|
|
|
|
||||
|
MAC Address
|
1K
|
|
|
|
||||
|
Jumbo Frame
|
2Kbytes
|
|
|
|
||||
|
Transfer Mode
|
Store and forward
|
|
|
|
||||
|
MTBF
|
100,000 hours
|
|
|
|
||||
|
Standard
|
|
|
|
|
||||
|
Network Protocol
|
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x (Flow Control)
|
|
|
|
||||
|
PoE Protocol
|
IEEE 802.3af (15.4W)
IEEE 802.3at (30W)
|
|
|
|
||||
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) Class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
|
|
|
|
||||
|
Network Medium
|
10BASE-T: Cat 3, 4, 5 UTP (≤100 meter)
100BASE-TX: Cat5 or above UTP (≤100 meter)
1000Base-TX: Cat5 or above UTP (≤100 meter)
|
|
|
|
||||
|
Power Supply
|
|
|
|
|
||||
|
Power Voltage
|
Input Voltage: AC 100-240V
Output Voltage: 52V1.25A
|
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
Certificate
|
CE, FCC, RoHS
|
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Environment
|
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%,non-condensing
Working Height: Maximum 10,000 feet
Storage Height: Maximum 10,000 feet
|
|
|
|
||||
|
Physical Features
|
|
|
|
|
||||
|
Dimension
|
Product Dimension (L*W*H): 200*120*45 mm
Package Dimension (L*W*H): 245*190*60 mm
N.W: 0.5 KG
G.W: 0.9 KG
|
|
|
|
||||
|
Packing Info
|
Carton Meas: 505*320*400 mm
Packing Qty: 20 Units
Packing Weight: 19 KG
|
|
|
|
||||
|
Package List
|
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc
|
|
|
|
||||
|
Indication
|
|
|
|
|
||||
|
DIP Switch
|
VLAN: port isolation, 1-4 ports are isolated each other, but all can communicate with uplink port 5
Default: normal mode, all ports can communicate with each other, the port AI mode is closed.
Extend: Extend mode, 1-4 port support 250 meters transmission on 10Mbp/s, AI enable.
|
|
|
|
||||
|
LED Indicators
|
PWR, Mode, 1-5 Link&ACT
|
|
|
|
||||
