Quick Details
-
Weight (KG):
-
3 KG
-
Product name:
-

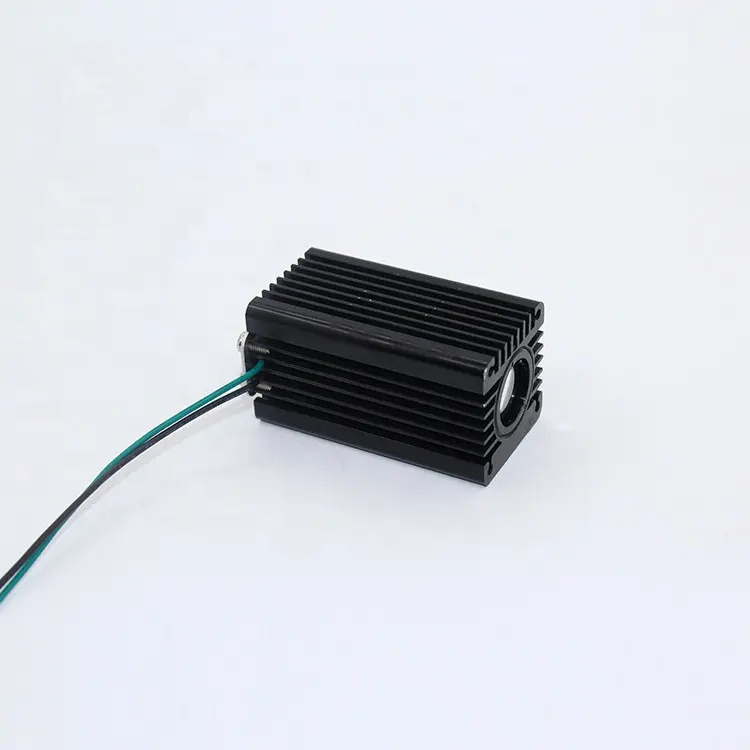

505nm 100mw Green Laser Module
-
Output power:
-
<100mw
-
Material:
-
Aluminum
-
Optical Lens:
-
Glass
-
Beam Type:
-
Wide
-
Application:
-
Industrial Laser Equipment
-
Laser type:
-
Semiconductor
-
Keywords:
-
Dpss 520nm 100mw Green Laser Module
-
Wavelength:
-
520nm
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
None
-
Brand Name:
-
Xinland
-
Weight (KG):
-
3 KG
-
Product name:
-
505nm 100mw Green Laser Module
-
Output power:
-
<100mw
-
Material:
-
Aluminum
-
Optical Lens:
-
Glass
-
Beam Type:
-
Wide
-
Application:
-
Industrial Laser Equipment
-
Laser type:
-
Semiconductor
-
Keywords:
-
Dpss 520nm 100mw Green Laser Module
-
Wavelength:
-
520nm
Product Description
Laser Wavelength: 505nm±5nm
Output Power: ＜100mW
Laser Grade: Class 4
TTL Output: >1K HZ Working output power =continuous power x 40%
Output stability: ±5%
Beam Mode: Round dot
Beam size @3M: Φ4mm
Beam Divergent: <2mrad
Diver board input voltage: DC12V
LD input voltage: Red-3.3V/Green-7.7V/Blue-7V
LD input current: Red-200mA/Green-320mA/blue-200mA
Modulation Mode: TTL
TTL trigger mode: High-Level Effective(>DC 2.0V)
Operating rate: <30KHz
Analog controlled input voltage: DC 0--12V
Analog controlled max input voltage: DC12V
Operating temperature: 15℃--50℃
Starting time: <1 Minutes
Life time: >10000 hours
Attention:
1. Please check whether there is any abnormal appearance before use
2. Please check whether the potentiometer is under the low power condition, the lower power is safe for starting
|
