Quick Details
-
Weight:
-
1050 KG
-
Dimension(L*W*H):
-
2370*4000*1430mm
-
Product Name:
-
potato cultivator
-
Product Type:
-
Agriculture Machinery Equipment
-
matching form:
-
three-point suspension
-
working width:
-
3600MM
-
matching power:
-
120HP
-
working efficiency:
-
five to eight acres per hour
-
Package:
-
Wooden Carton
-
MOQ:
-
1 Set
-
Keywords:
-
Tiller Farm Cultivator
Quick Details
-
Use:
-
potato cultivator
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Geetien/OEM
-
Weight:
-
1050 KG
-
Dimension(L*W*H):
-
2370*4000*1430mm
-
Product Name:
-
potato cultivator
-
Product Type:
-
Agriculture Machinery Equipment
-
matching form:
-
three-point suspension
-
working width:
-
3600MM
-
matching power:
-
120HP
-
working efficiency:
-
five to eight acres per hour
-
Package:
-
Wooden Carton
-
MOQ:
-
1 Set
-
Keywords:
-
Tiller Farm Cultivator

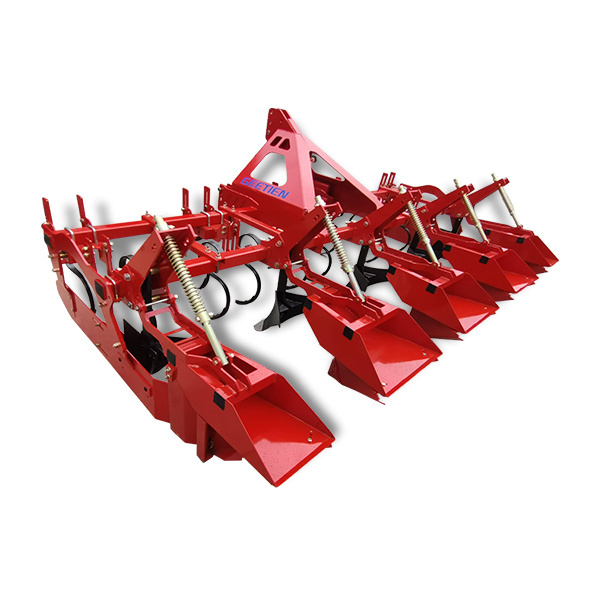

Detailed description
Machine size: 2370*4000*1430 (mm),
matching form: three-point suspension,
working width: 3600 mm,
matching power: more than 120 horsepower,
working efficiency: five to eight acres per hour,
ditch weight: 1050 kg
Manufacturing Technique
|
ITEM
|
Cultivator characteristics
|
|
1
|
Mounted cultivator for operations continuous and inter-row tillage uniform the formation of convex ridges with finely ground
surface on light and medium soils, as well as looseninq the soil, hillinq and weedinq in order to create conditions for the
growth, care and harvesting of potatoes and carrots with using various loosening teeth, adjustable in height depending on the type
of soil
|
|
2
|
Row spacing not less than 75 cm
|
|
3
|
It is aggregated by tractors with a low load capacity, with a power of at least 70 hp
|
|
4
|
Cultivator dimensions: - length not less than 2380 mm; - width not less than 3270 mm
|
|
5
|
Weight not lessthan 950 kg
|
|
6
|
Number of rows at least 4 (four)
|
|
7
|
Hitch lower link hitch not lower than 2 (second) category
|
|
8
|
Double support frame.
|
|
9
|
Base frame fixed
|
|
10
|
Supplementation ofthe support frame with at least 2 (two) beams
|
|
11
|
Hilling bodies without shares, spring-loaded
|
|
12
|
Loose tooth (track ripper) with a size ofat least 150x10 mm
|
|
13
|
Loosening a hard crust of soil near the ridge and between combs additional loosening knives at least 2 (two) pieces.
|
|
14
|
Knives are fixed on brackets.
|
|
15
|
Ridge formers ofindividual rows with spring pendant
|
|
16
|
The ridge formers hang freely in a parallelogram behind the tool.
|
|
17
|
A transverse pipe connectingthe ridge formers to each other for stability, as well as for the operational conversion ofthe closed
version ofthe ridqe formers ofindividual rows to an open one.
|
|
18
|
harrow pressure moving along The top ofthe comb is regulated by holes.
|
|
19
|
The side shields prevent the loss ofearth from the side necessary for the ridge formation.
|
|
20
|
Guided knife element.
|
|
21
|
The required pressure on the soil is set through spring pressure.
|
|
22
|
Stainless steel molds
|
|
23
|
The inclination ofthe ridge-forming plate is set using a screw pair, which changesthe shape ofthe ridges
|
|
24
|
Inserts for accelerated processing of convex ridges
|
Product Description
Always the perfect choice
With a wide range of different loosening tines, the machine can be adapted to any condition.
Ridging bodies
For building up the ridges high quality ridging bodies are used. On light soils with stones, spring loaded ridging bodies (standard) can be used. For light soils with medium-heavy conditions, without stones, the alternatively available, height-adjustable fix ridging bodies are suitable.
weed control
Weeds are clipped from one side of the ridge, then pulled from the ridge, and finally covered. This will prevent weeds from growing back as much as possible.
simple ridge formation
Teeth in front of the ridged plate for loosening soil.
