NEW MYCUT camera contour cut vinyl cutter plotter touch screen making machine

NEW MYCUT camera contour cut vinyl cutter plotter touch screen making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $448.5

≥20 Sets

US $350

≥100 Sets

US $300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MYCUT

Model Number:: MC630T

Voltage:: 110-220V

Cache Capacity:: 256MB

Cutter Pressure:: 500-1000

Cutting Speed:: 800mm/s max

Driver:: Micro-step Motor

Cutting Length:: as requested

Repeat Cutting:: yes

Size:: 1000*320*390mm

Product name:: touch screen making machine

Model:: MC630T

Software:: Coreldraw, Signmaster

Interface:: U Disk, USB, Ethernet port

Cutting:: Support Contour Cutting

Blade:: Imported Hardness Alloy Steelblade

Control panel:: LCD Display

Mainboard:: AMR 32 CPU

Cutting precision:: ±0.1mm

Material:: Sheet Metal+aluminum Alloy

Quick Details

Paper Feed Width:: 29''/730mm

Cutting Width:: 24''/630mm

Place of Origin:: Guangdong, China

Brand Name:: MYCUT

Model Number:: MC630T

Voltage:: 110-220V

Cache Capacity:: 256MB

Cutter Pressure:: 500-1000

Cutting Speed:: 800mm/s max

Driver:: Micro-step Motor

Cutting Length:: as requested

Repeat Cutting:: yes

Size:: 1000*320*390mm

Product name:: touch screen making machine

Model:: MC630T

Software:: Coreldraw, Signmaster

Interface:: U Disk, USB, Ethernet port

Cutting:: Support Contour Cutting

Blade:: Imported Hardness Alloy Steelblade

Control panel:: LCD Display

Mainboard:: AMR 32 CPU

Cutting precision:: ±0.1mm

Material:: Sheet Metal+aluminum Alloy

Product Description

NEW MYCUT camera contour cut vinyl cutter plotter touch screen making machine

Main Features:

1. Integrated carriage head board and imported grit roller make it strong and high precision;

2. With camera sensor for accurate mark detection on contour cutting , can cut any base color or reflective materials, adapt the material automatically no matter what material; while laser sensor can not make;

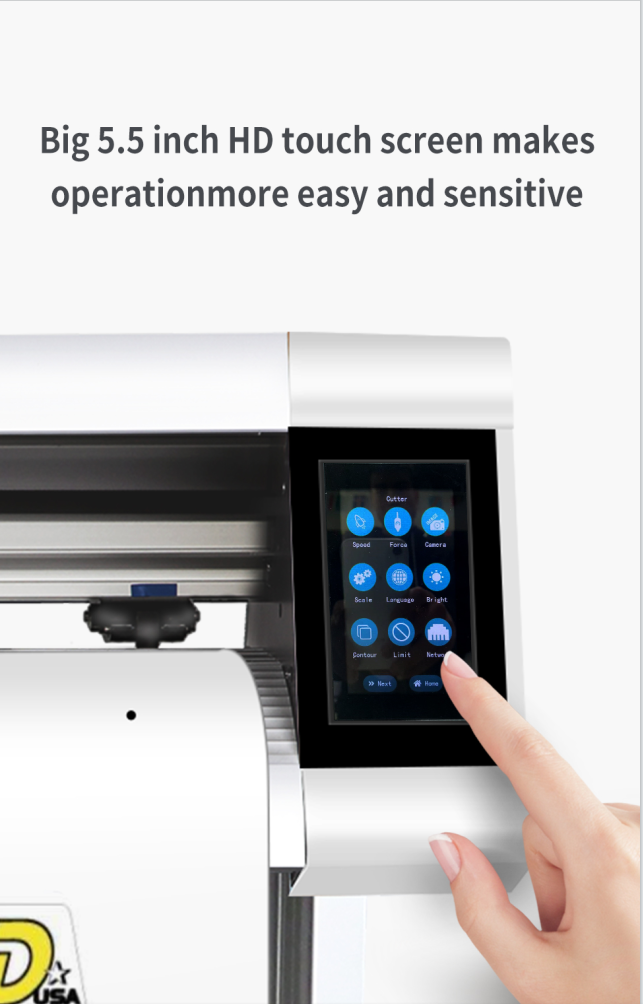

3. Big Touch Screen, easy operation;

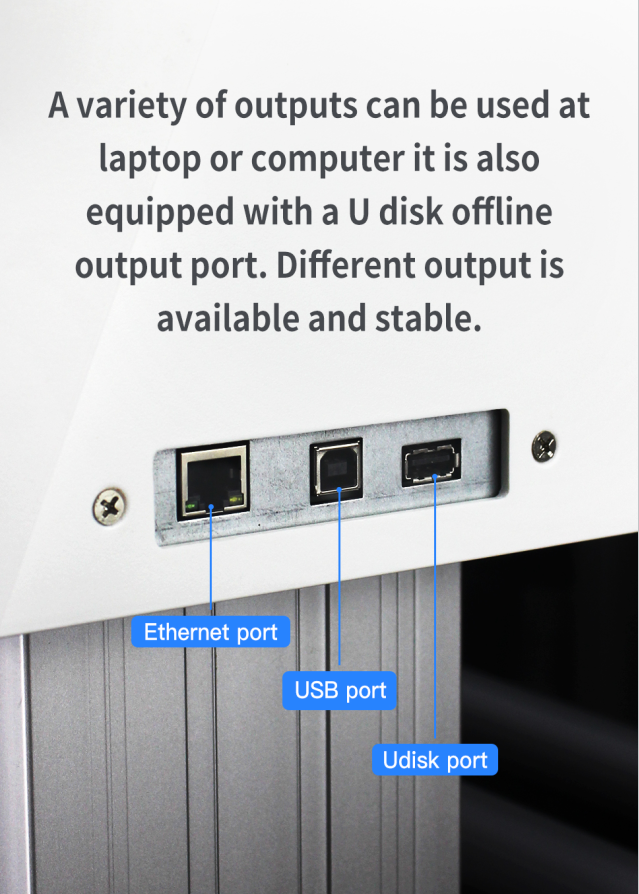

4. Except USB and U-disk port, it has Ethernet port which made transmission signal more stable and faster, many computer can share with one cutting plotter for using ;

5. Real high speed 256MB memory;

6. High precision integrated steel roller: guaranteed 5m without deviation of paper feeding;

7. High accuracy machine structure allows to cut 2mm letters without distortion ;

8. High performance 32-bit processor with ARM Cortex-M3 ;

9. Repeat cutting function makes your work more efficiently;

10. Low noise : whisper quiet motor perfect for home&office use;

11. Aluminum alloy body makes it more durable and elegant;

Model	MC630T(24'')	MC1200T(48'')	MC1500T(59')
Main Board	High-performance & intelligent ARM 32 CPU; 256MB memory
Driver	High speed stepping motor, micro-step driver
Max Paper Feed Width	730mm	1400mm	1600mm
Max Cutting Width	630mm	1280mm	1500mm
Max Cutting Speed	650mm/s
Cutting Force	0-500g/0-1000g (optional configuration)
Mechanical Precision	0.01mm
Repeatable Precision	< +-0.1mm
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB / U-Disc port / Ethernet port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Software	Signmaster, Coreldraw
Noise at Work	≤50 DB
External Dimension	1000320390mm	1670320390mm	1900320390mm
Shipping Weight	30kgs(stand included)	42kgs (stand included)	50kgs(stand included)

Packaging & Shipping

Standard Accessories

1) floor stand 2) 1power cable 3) 1 USB cable 4) 3 Cutting Blade

5) 1 Blade Holder 6) 1 plot pen&holder 7) Signmaster plugin 8) User Manual(CD)

Standard Packing

With great quality Foam and Carton Packing

Make sure the machine won't be damaged during shipping

Delivery Info

within 7 days for order less than 100 units.

Within 15 days for order more than 100 units.

Our Services

1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
