Quick Details
-
Model Number:
-
SS Type
-
Warranty:
-
1years
-
Certification:
-
CE iso9001
-
Output Voltage:
-
12V/24V/48v/96v/120v/220v
-
rotor diameter:
-
custom
-
Application:
-
Wind Power System
-
Rated Voltage:
-
12V/24V/48v/96v/120v/220v
-
Product name:
-

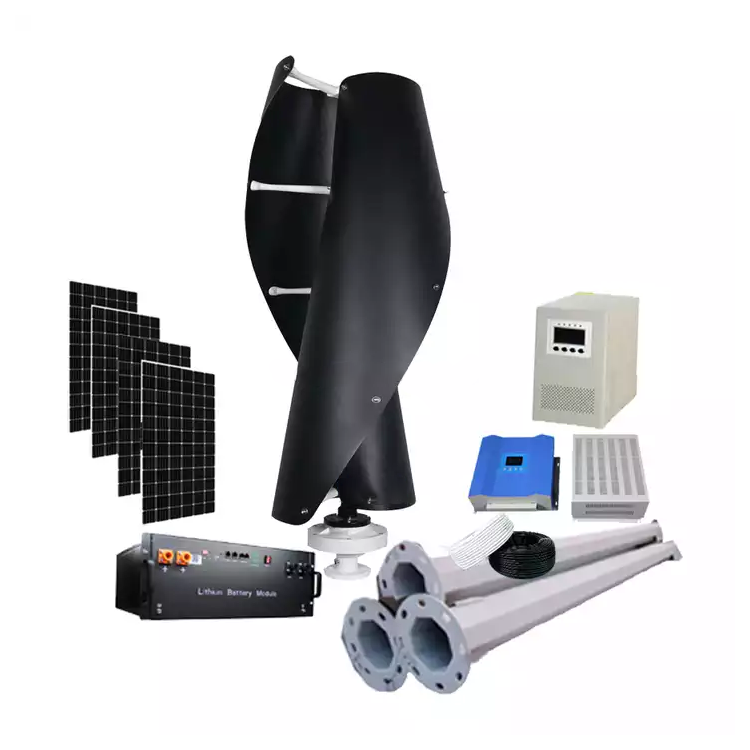

2KW 2000W Vertical Wind Turbine Permanent Magnet Generator
-
Generator type:
-
3 phase AC magnetic levitation or external rotor generator
-
Type:
-
Permanent Magent Generator
-
Rated wind speed:
-
3.5m/s-13m/s
-
Blade Material:
-
Aluminum alloy
-
Safe wind speed:
-
55m/s
-
Controller:
-
Wind Solar Hybrid Controller
-
Start-up wind speed:
-
1.5m/s
Quick Details
-
Rated Power:
-
200W/300W/400W600W/800W/1000W
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ST
-
Model Number:
-
SS Type
-
Warranty:
-
1years
-
Certification:
-
CE iso9001
-
Output Voltage:
-
12V/24V/48v/96v/120v/220v
-
rotor diameter:
-
custom
-
Application:
-
Wind Power System
-
Rated Voltage:
-
12V/24V/48v/96v/120v/220v
-
Product name:
-
2KW 2000W Vertical Wind Turbine Permanent Magnet Generator
-
Generator type:
-
3 phase AC magnetic levitation or external rotor generator
-
Type:
-
Permanent Magent Generator
-
Rated wind speed:
-
3.5m/s-13m/s
-
Blade Material:
-
Aluminum alloy
-
Safe wind speed:
-
55m/s
-
Controller:
-
Wind Solar Hybrid Controller
-
Start-up wind speed:
-
1.5m/s
Product Features :
1.Rich colors. The blades could be white, orange, yellow, blue, green, mixed, and any other color.
2.Various voltages. 3 phase ac output, suitable for charging 12v, 24v, 48v,96v,120v,220v batteries.
3.One-piece blade design ensures higher rotational stability, low noise.
4. Coreless generator means lower start torque, lower start wind speed, longer service life.
5. Rpm limit protection. The rpm is kept under 300 regardless of high wind speed, which prevents the controller from over-load.
6. Easy installation. Full set of fasteners and installation tools are attached in the package. 7. Long service life. The turbine could work 10~15 years under normal natural environments.
8.High efficiency, could be hybrid system with solar panels.
9.Applications: marine, boat,streetlights, home, openning plaza lighting.
|
Rated power
|
100W | 200W 300W | 400W
|
600W
|
800W
|
1000W
|
2000W
|
3000W
|
5000W
|
10KW
|
|||||||
|
Maximum power
|
120W | 220W
320W | 420W
|
620W
|
820W
|
1050W
|
2100W
|
3100W
|
5100W
|
10KW
|
|||||||
|
Rated voltage
|
12V/24V/48v
|
|
|
|
48v/96v/120v/220v
|
|
|
|
|||||||
|
Start the wind speed
|
1.5m/s
2.0m/s
|
2m/s
|
|
|
|
|
|
|
|||||||
|
Operating wind speed
|
3.5m/s-13m/s
|
|
|
|
|
|
|
|
|||||||
|
Safe wind speed
|
55m/s
|
|
|
|
|
|
|
|
|||||||
|
Number of blades
|
10/2
|
|
|
|
|
|
|
|
|||||||
|
Blade material
|
Aluminum alloy
|
|
|
|
|
|
|
|
|||||||
|
Magnetic steel material
|
NdFeB
|
|
|
|
|
|
|
|
|||||||
|
Generator type
|
Magnetic levitation generator
|
|
|
|
|
|
|
|
|||||||
|
Control mode
|
Electromagnetic brakes
|
|
|
|
|
|
|
|
|||||||
|
Wind direction adjustment
|
Automatic windward
|
|
|
|
|
|
|
|
|||||||
|
Insulation/protection rating
|
F / IP54
|
|
|
|
|
|
|
|
|||||||
