Quick Details
-
Operating Temperature:
-
-30~80℃
-
Consumption Current:
-
<90mA DC
-
Medium Temperature:
-
-20~80℃
-
Power supply:
-
24±20% VDC
-
Protection Grade:
-
IP67
-
Measuring medium:
-
Fluid
-
Response Time:
-
2s
-
Material:
-
Stainless Steel
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Oil Flowmeters, Variable Area Water Flowmeters
-
Measuring Range:
-
1~150cm/s(water), 3~300cm/s(oil)
-
Switch Type:
-
Relay, PNP, NPN
-
Operating Temperature:
-
-30~80℃
-
Consumption Current:
-
<90mA DC
-
Medium Temperature:
-
-20~80℃
-
Power supply:
-
24±20% VDC
-
Protection Grade:
-
IP67
-
Measuring medium:
-
Fluid
-
Response Time:
-
2s
-
Material:
-
Stainless Steel

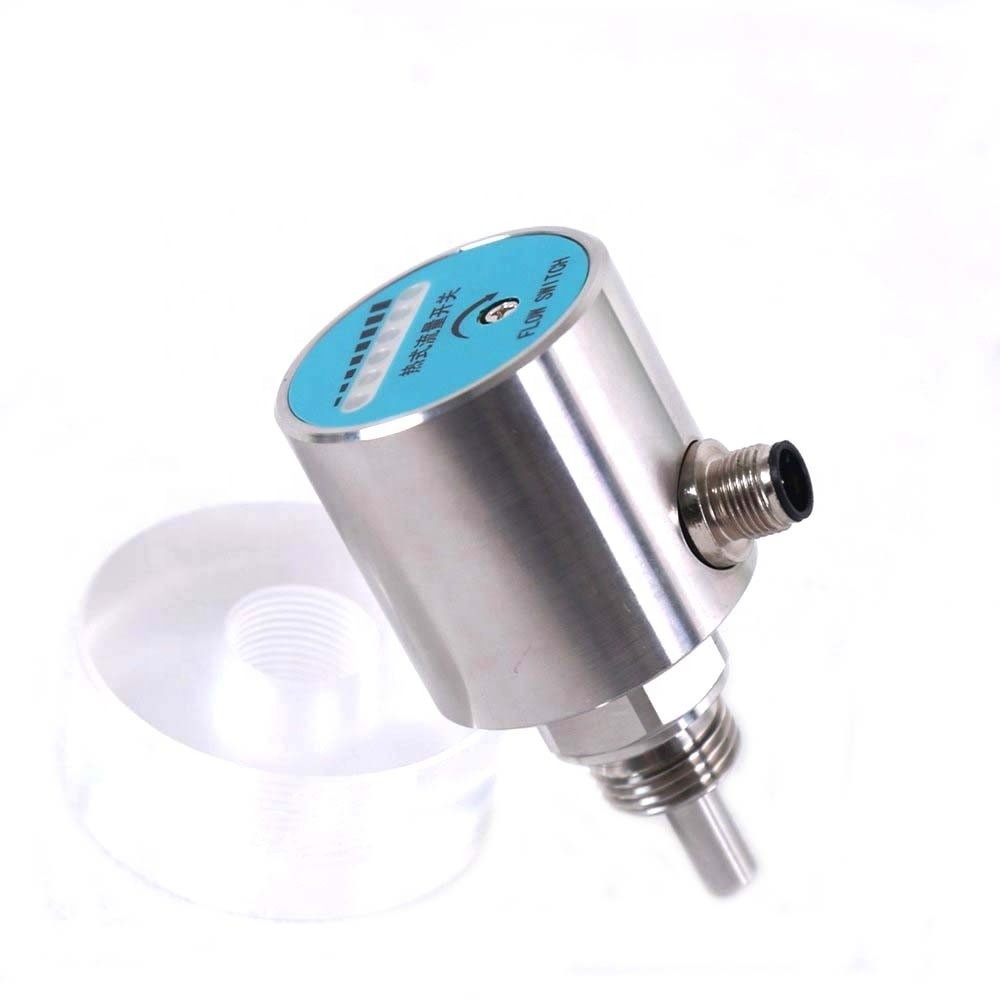

Thermal Flow Meter Flow Transmitter with Switch QLK400
Overview
Flow speed increasing or reducing, medium exists or not, the medium is moving or not.
It is used to protect idling pump and monitor the flow rate in the pipeline.
Main Features
1.All stainless-steel case without movable components
2.Maintenance-free
3.Switching point could be set on site
4.LED displayer shows flow state and on-off state
|
Specification of QLK400 Thermal Flow Meter
|
|
|
|
|||
|
Measuring Range
|
1~150cm/s(water), 3~300cm/s(oil)
|
|
|
|||
|
Power Supply
|
24 ± 20% VDC
|
|
|
|||
|
Operating Temperature
|
-30°C~80°C
|
|
|
|||
|
Medium Temperature
|
-20°C~80°C
|
|
|
|||
|
Overload Capacity
|
10MPa
|
|
|
|||
|
Protection Level
|
IP67
|
|
|
|||
|
Measuring Medium
|
Fluid, Water, Oil, Petrolum
|
|
|
|||
|
Switch Type
|
Relay, PNP, NPN
|
|
|
|||
|
Response time
|
2s
|
|
|
|||
|
Consumption Current
|
<90mA DC
|
|
|
|||
|
Selection Guide of QLK400 Thermal Flow Meter
|
|
|
|
|||
|
Switch Type
|
J
|
Relay (SPDT)
|
|
|||
|
|
P
|
PNP
|
|
|||
|
|
N
|
NPN
|
|
|||
|
Deepth of Pin
|
L1
|
15mm
|
|
|||
|
|
L2
|
18mm
|
|
|||
|
|
L3
|
40mm
|
|
|||
|
|
L4
|
60mm
|
|
|||
