High Brightness
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
1 KG
-
Housing material:
-
Aluminum Black Matte
-
Safety class:
-
Class 2M or 3M
-
Laser modes:
-
CW or pulsed
-
Battery Type:
-
CR123A
-
Wavelength:
-
520nm, 532nm
-
Divergence:
-
Adjustable Focus
-
Lens Aperture:
-
20mm, 30mm, 40mm
-
Switch:
-
Push Button or Pressure Pad
-
Tube Size:
-
Diameter 25.4/36mm Length 201mm
-
Service:
-
Custom-Oriented
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
laser component
-
Marketing Type:
-
Superior Product
-
Weight (KG):
-
1 KG
-
Housing material:
-
Aluminum Black Matte
-
Safety class:
-
Class 2M or 3M
-
Laser modes:
-
CW or pulsed
-
Battery Type:
-
CR123A
-
Wavelength:
-
520nm, 532nm
-
Divergence:
-
Adjustable Focus
-
Lens Aperture:
-
20mm, 30mm, 40mm
-
Switch:
-
Push Button or Pressure Pad
-
Tube Size:
-
Diameter 25.4/36mm Length 201mm
-
Service:
-
Custom-Oriented
|
Specification
|
|
|
|
|||
|
Material
|
Aluminum
|
Wavelength
|
450nm,532nm,640nm,850nm
|
|||
|
Model
|
LFL-20R,G,B,IN; LFL-30R,G,B,IN; LFL-40R,G,B,IN
|
Output Power
|
20mW; 30mW; 40mW
|
|||
|
Laser Life Span
|
＞10,000hrs
|
Beam Range
|
Up to 5km
|
|||
|
Laser Modes
|
CW and Pulsed
|
Divergence
|
Adjustable Focus
|
|||
|
Safety Class
|
Class Ⅲ
|
Switch
|
Push Button Pressure Pad
|
|||
|
Item\Model
|
|
LFL-20
|
LFL-30
|
LFL-30G
|
LFL-40
|
|
|
Dimension
|
Tube Size
|
¢25/ ¢36mm
|
¢25/ ¢44mm
|
¢36/ ¢50mm
|
¢25/ ¢52mm
|
|
|
|
Length
|
188mm
|
216mm
|
220mm
|
242mm
|
|
|
Wavelength (Color)
|
|
532nm (Green)
|
532nm (Green)
|
532nm (Green)
|
532nm (Green)
|
|
|
|
|
635nm (Red)
|
635nm (Red)
|
635nm (Red)
|
635nm (Red)
|
|
|
|
|
850nm (Infrared)
|
850nm (Infrared)
|
850nm (Infrared)
|
850nm (Infrared)
|
|
|
Output Power
|
|
20mw
|
30mw
|
30mw
|
40mw
|
|
|
Lens Aperture
|
|
20mm
|
30mm
|
30mm
|
40mm
|
|
|
Beam Range
|
|
Up to 2km
|
Up to 3km
|
Up to 3km
|
Up to 5km
|
|
|
Laser Modes
|
|
CW
|
CW
|
CW/Pulse
|
CW
|
|
|
Divergence
|
|
Adjustable Focus
|
Adjustable Focus
|
Adjustable Focus
|
Adjustable Focus
|
|
|
Safety Class
|
|
Class 2M
|
Class 2M
|
Class 2M
|
Class 2M
|
|
|
Switch
|
|
Push Button
Pressure Pad |
Push Button
Pressure Pad |
Push Button
|
Push Button
Pressure Pad |
|
|
Power Supply
|
|
One Li CR123A
|
One Li CR123A
|
One Li CR123A
|
One Li CR123A
|
|
|
Mounting System
|
|
25.6mm Mount
|
25.6mm Mount
|
No
|
25.6mm Mount
|
|

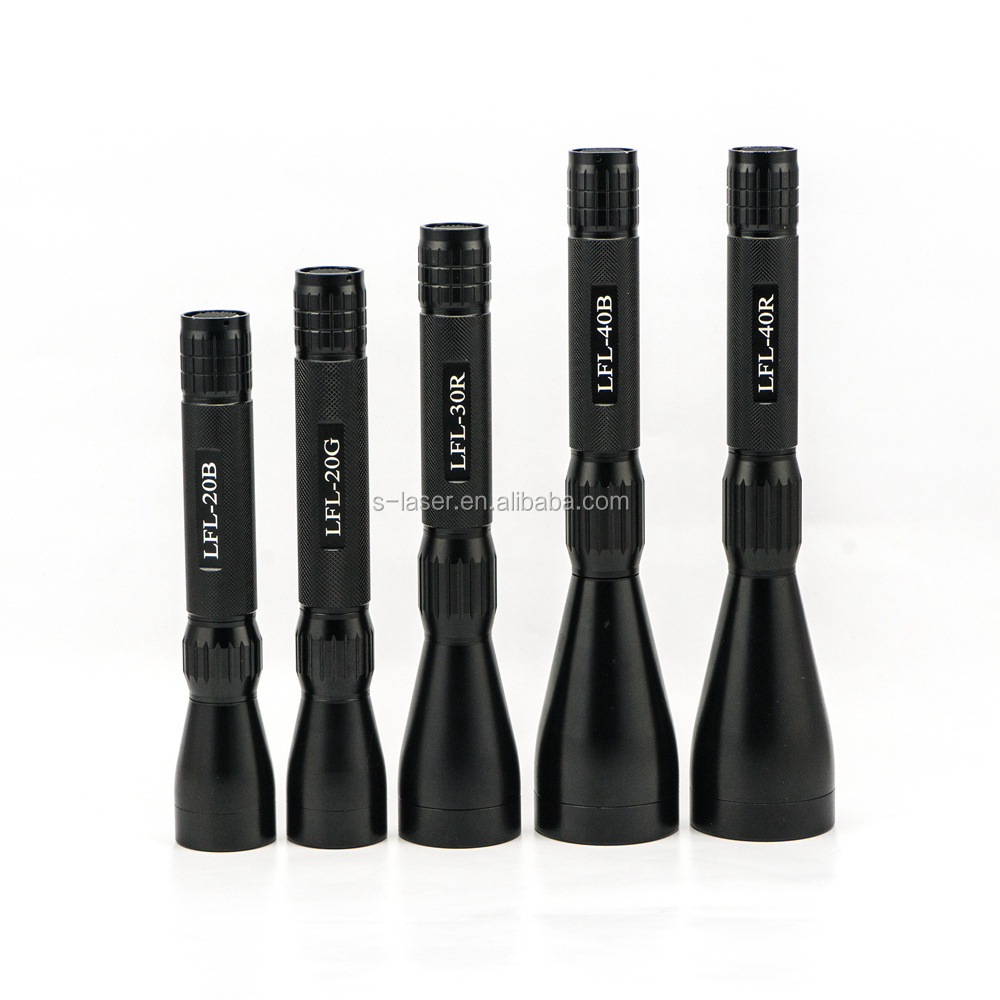

1km to 5km Beam Range Multiple color: Infrared,Green, Red, Blue
Adjustable Focus Over 10,000hrs Long Life
laser flashlight/
illuminator
Low Consumption
High Brightness
laser flashlight/
illuminator
It's great tool for field search,outdoor adventures and positioning.
Elite’s laser flashlight/illuminator provides high brightness lasers with output power 20mw,30mw and 40mw.The work distance could be up to 5km,with adjustable beam around 40mm at the distance of 600mts.
Elite is a professional manufacturer of semiconductor laser diode products.The R&D department is built up by a group of creative and enthusiastic engineers yet with full experience in electronics,software,laser,optical and mechanical drawings.Not only euipped with rich knowledge in our own designed products,but also they could strongly develop with custom designed products,Share youridears us;we will provide the best solution!
FAQ
1. What's the way of shipping
Shipping via DHL, TNT, UPS, FedEx, and EMS.
Shipping via DHL, TNT, UPS, FedEx, and EMS.
Assurance payment on Alibaba
3. What's your MOQ?
1 Piece
4. What's the delivery time?
3 – 7 days for International Shipping
5. Can I customize the products based on my requirements?
Yes. We can design and produce lasers based on your special requirements.
6. Do you have any certifications for lasers?
Yes. All our lasers are certified with CE, RoHS, and IEC.
7. How long is the warranty period?
12 months.
