Quick Details
-
Rolling Speed (m/min):
-
5 - 6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Darling Machinery
-
Weight (KG):
-
6000 KG
-
Motor Power (kw):
-
7.5 kw
-
Product name:
-
3 roller pipe bending machine
-
Application:
-
Steel Plate Sheet Rolling
-
Rolling materials:
-
Metal Sheet Plate
-
Voltage:
-
220V/380V/415V/440V/customized
-
Controller:
-
Cnc Auotomatic
-
Electric System:
-
Schneider for 3 roller pipe bending machine
-
Roller quantity:
-
3 rollers for 3 roller pipe bending machine
-
TOP roller diameter(mm):
-
280 Mm
-
Forming:
-
Round.etc
-
Max rolling length:
-
3200mm for 3 roller pipe bending machine
Quick Details
-
Max. Working Length (mm):
-
3200 mm
-
Max. Plate Thickness (mm):
-
60 mm
-
No. of Roller:
-
3
-
Rolling Speed (m/min):
-
5 - 6
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Darling Machinery
-
Weight (KG):
-
6000 KG
-
Motor Power (kw):
-
7.5 kw
-
Product name:
-
3 roller pipe bending machine
-
Application:
-
Steel Plate Sheet Rolling
-
Rolling materials:
-
Metal Sheet Plate
-
Voltage:
-
220V/380V/415V/440V/customized
-
Controller:
-
Cnc Auotomatic
-
Electric System:
-
Schneider for 3 roller pipe bending machine
-
Roller quantity:
-
3 rollers for 3 roller pipe bending machine
-
TOP roller diameter(mm):
-
280 Mm
-
Forming:
-
Round.etc
-
Max rolling length:
-
3200mm for 3 roller pipe bending machine
Low price ISO9001 CE assurance 5 years warranty 3 roller pipe bending machine
Video link:
YouTube: https://youtu.be/n_GtkAUNSkE
QQ video: https://v.qq.com/x/page/n32177ffaaa.html
Baidu video: https://haokan.baidu.com/v?vid=4943819624347873562&bfe=1
Using instruction

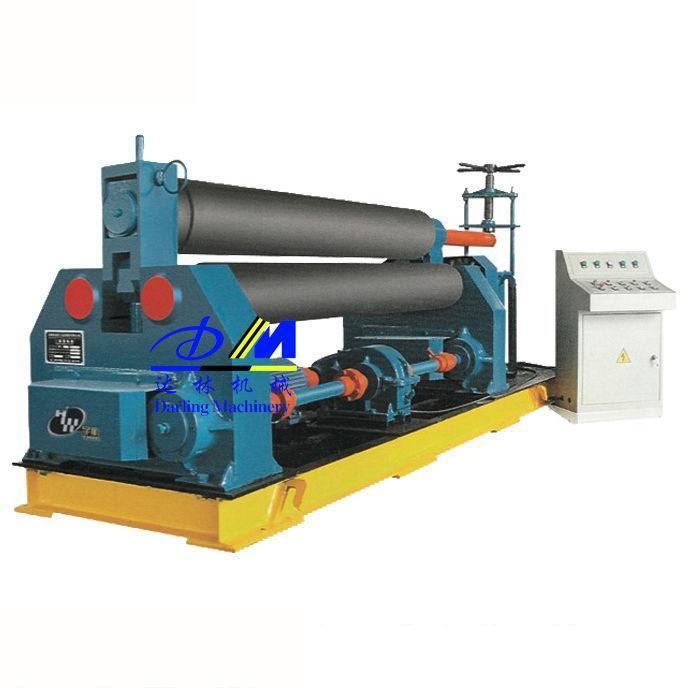

W11 series is mechanical symmetric 3 roller bending machine,it is used to roll and bend certain thickness metal sheet to cylindrical, arc or cone shape in usual temperature. U p roller press, machine frame turning adopts hydraulic driving, the working principle is rotating bending deformation.
Technology parameter
|
Model |
Max.bending size (T x W) (mm) |
Bending speed (m/min) |
Min.bending dia.in full loading (mm) |
Up roller dia. (mm) |
down roller dia. (mm) |
Support roller dia. (mm) |
Center distance of 2 down roller (mm) |
Steel sheet yield limit (Mpa) |
Main motor power (Kw) |
|
W11-6x1500 |
6x1500 |
5.5 |
380 |
180 |
160 |
no |
210 |
245 |
5.5 |
|
W11-6x2000 |
6x2000 |
5.5 |
380 |
180 |
160 |
220 |
245 |
5.5 |
|
|
W11-6x2500 |
6x2500 |
5.6 |
500 |
190 |
170 |
260 |
245 |
7.5 |
|
|
W11-6x3200 |
6x3200 |
5.5 |
500 |
240 |
200 |
310 |
245 |
11 |
|
|
W11-8x2000 |
8x2000 |
5.6 |
450 |
190 |
170 |
260 |
245 |
7.5 |
|
|
W11-8x2500 |
8x2500 |
5.5 |
500 |
240 |
200 |
310 |
245 |
11 |
|
|
W11-12x2000 |
12x2000 |
5.5 |
500 |
240 |
200 |
310 |
245 |
11 |
|
|
W11-12x2500 |
12x2500 |
5.8 |
650 |
260 |
220 |
340 |
245 |
15 |
|
|
W11-12x3000 |
12x3000 |
6 |
750 |
280 |
240 |
360 |
245 |
22 |
|
|
W11-16x2000 |
16x2000 |
5.8 |
650 |
260 |
220 |
340 |
245 |
15 |
|
|
W11-16x2500 |
16x2500 |
5.5 |
750 |
280 |
240 |
360 |
245 |
22 |
|
|
W11-16x3200 |
16x3200 |
5 |
900 |
340 |
280 |
440 |
245 |
30 |
|
|
W11-20x2000 |
20x2000 |
5.5 |
750 |
280 |
240 |
360 |
245 |
22 |
|
|
W11-20x2500 |
20x2500 |
5 |
850 |
340 |
280 |
440 |
245 |
30 |
|
|
W11-25x2000 |
25x2000 |
5 |
850 |
340 |
280 |
440 |
245 |
30 |
|
|
W11-25x2500 |
25x2500 |
4.5 |
900 |
380 |
300 |
490 |
245 |
37 |
|
|
W11-30x2000 |
30x2000 |
4.5 |
900 |
380 |
300 |
490 |
245 |
37 |
|
|
W11-30x2500 |
30x2500 |
4.5 |
1100 |
440 |
360 |
580 |
245 |
37 |
|
|
W11-30x3000 |
30x3000 |
4.5 |
1200 |
480 |
400 |
600 |
245 |
45 |
|
|
W11-30x3200 |
30x3200 |
4.5 |
1200 |
500 |
400 |
600 |
245 |
45 |
|
|
W11-40x3000 |
40x3000 |
4.5 |
1500 |
500 |
420 |
650 |
245 |
55 |
|
|
W11-50x2500 |
50x2500 |
4 |
1500 |
560 |
340 |
280 |
610 |
245 |
55 |
|
W11-50x3000 |
50x3000 |
3.5 |
1500 |
610 |
360 |
280 |
650 |
245 |
55 |
|
W11-60x2500 |
60x2500 |
3.5 |
1600 |
590 |
360 |
280 |
650 |
245 |
55 |
|
W11-60x3000 |
60x3000 |
3.5 |
2000 |
680 |
380 |
280 |
700 |
245 |
75 |
Our service
1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.
3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.
4, our quality assurance: all our machine using life.
Getting Local office support, please contact with our company:
|
Shandong Darling Machinery Equipment Co., Ltd.
Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158 Website: www.darlingmachinery.com |
We will be the best partner
Although we live in different countries, our hearts are always together . We don ’ t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!
Our cooperation is Double win results.
® Our aim is:
Through using our machine, you can make better product and earn more money !
FAQ:
1, are you manufacture or trading company?
we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.
2, how about your quality ?
we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.
3, what about your after sales service ?
we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.
4, why do we must choose you as our supplier ?
customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let you to cooperate with us safely.
