Quick Details
-
Product Name:
-
Auto Steering
-
Application:
-
Farm Tractor
Quick Details
-
Weight (KG):
-
10 KG
-
Place of Origin:
-
Germany
-
Brand Name:
-
Auto Steering
-
Product Name:
-
Auto Steering
-
Application:
-
Farm Tractor
What is Agriculture Navigation?
Agriculture navigation system is born for intelligent farming which help farmer enhance the productivity. There are Guidance system, land levelling system and auto steering system for options.

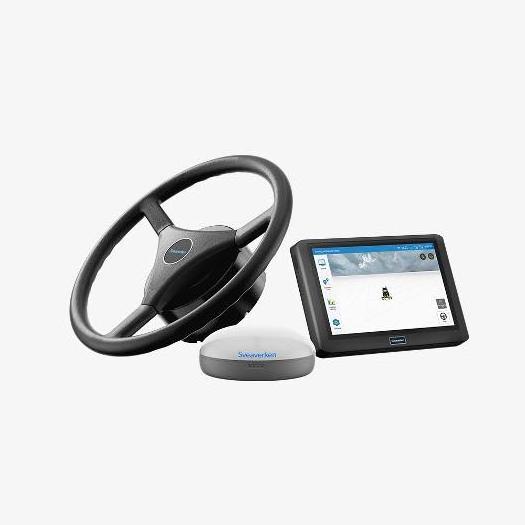

LK600 is an advanced automatic navigation driving system, which consists of a navigation computer, an electronically controlled steering wheel, a non-contact angle sensor, etc.; it simultaneously tracks Beidou, GPS and GLONASS satellite positioning signals, and relies on high-precision measurement and control technology to achieve better than 2.5 cm working accuracy; can be widely used in soil preparation, ridge, sowing, plant protection, harvesting and other operations.
sp
| Design Features | Highly integrated, modular design |
| Satellite Antenna Solution | Support single-antenna and dual-antenna solutions |
| controller type | Support motor steering wheel control or hydraulic control |
| Working precision | ±1.5cm/km |
| Operating speed range | 0.1-30km/h |
| value-added function | Position mark, real scene map operation, quick adjustment of handover line, reset point B, intelligent voice prompt, remote control control, farm tool control, plot network sharing, one-key U-turn, restoration of AB line, network diagnosis |
| work mode | AB straight line, parallel curve, diagonal rake, circular pattern, back pattern |
| Model Adaptation | Wheeled tractors, crawler tractors, articulated tractors, harvesters, rice transplanters, green storage machines, plant protection machines, etc. |
| job type adaptation | Ridging operation, sowing operation, film mulching operation, intertillage operation, harvesting operation, ditching operation, plant protection operation, etc. |
| Work Scenario Adaptation | Hard ground scene, soft ground scene, sandy ground scene, slope scene, composite scene |
| System scalability | Support the expansion of satellite leveling system, operation monitoring system, rice transplanter automatic driving system, agricultural machinery unmanned driving system, multi-functional portable treasure |
