High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage
High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage

High Efficient Refrigerator Cold Room For Meat Fish And Chicken Storage

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1200
≥5 Pieces
US $1100
≥10 Pieces
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Cooling Capacity:
50ton
Place of Origin:
Shandong, China
Brand Name:
HuanLi
Voltage:
220V,380V
Power:
380V-3PH-50HZ
Dimension(L*W*H):
1744*1018*1545 MM
Weight:
630 KG
Product name:
Cold Storage Room Chiller
Application:
Food Industry
Functions:
Vegetable Refrigerator Fruit Storage
Keywords:
Coldroom Cold Storage
Door type:
Swing
Product Type:
Build Cold Room Freezers

Quick Details

Temperature:
-25℃ ~ +15℃
Compressor brand:
Copeland, Bitzer
Panel Thickness:
200mm, 150mm
Cooling Capacity:
50ton
Place of Origin:
Shandong, China
Brand Name:
HuanLi
Voltage:
220V,380V
Power:
380V-3PH-50HZ
Dimension(L*W*H):
1744*1018*1545 MM
Weight:
630 KG
Product name:
Cold Storage Room Chiller
Application:
Food Industry
Functions:
Vegetable Refrigerator Fruit Storage
Keywords:
Coldroom Cold Storage
Door type:
Swing
Product Type:
Build Cold Room Freezers
Due to different models and different prices, in order to ensure your smooth purchase, please contact us before placing an orderand looking forward to our cooperation!
Product Description

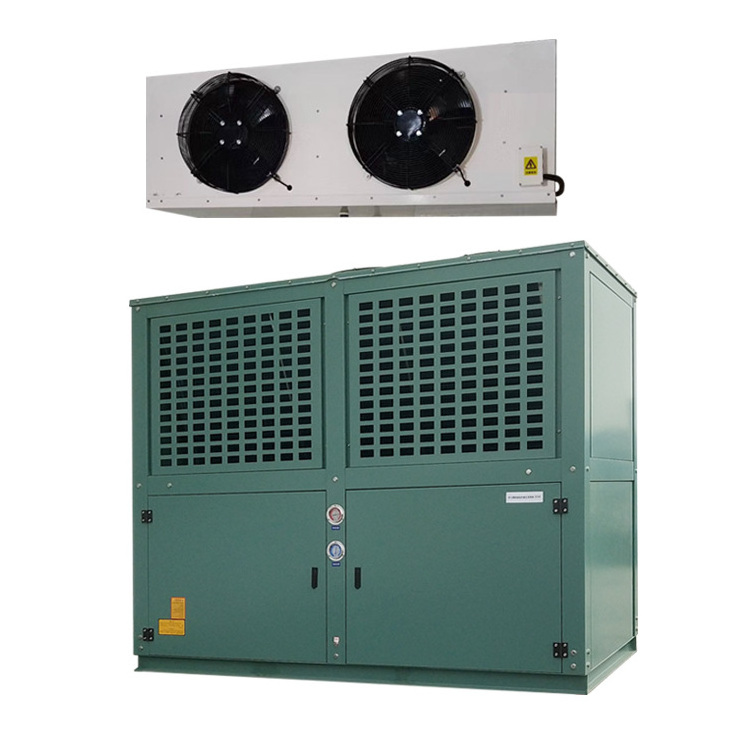

Temperature control equipment for cold storage
HLZL series is a kind of condenser that are specially matched the open-type,semi-hermetic and hermetic compressor units,The surface of heat transfer is from 80 to 320 square metres.Scientific designs,steady air flow,can fully exert heat-transfer capacity of the condensing unit.Rational performance design,high energy effeciency,Axial Fan,good-looking figure,low processing noise level.Convenient design for maintain(front board can be easily taken down).

Product Paramenters
Item
Data
Item
Data
V type condenser with Bitzer low temp
V type condenser with Bitzer low temp
V type condenser with Bitzer middle temp
V type condenser with Bitzer middle temp
Unit Model
HLZL-025L/BZ
Unit Model
HLZL-025M/BZ
Compressor Model
6HL-28
Compressor Model
4HL-25
Condenser Model
HLZL056-L2A
Condenser Model
HLZL074-L2A
Condensing temperature
45℃
Condensing temperature
45℃
Condenser Fan Mot.Power
800*2 W
Condenser Fan Mot.Power
780*2 W
Condenser Fan Mot.Amper
1.6*2 A
Condenser Fan Mot.Amper
1.5*2 A
Comp.rated input current
193 A
Comp.rated input current
193 A
Comp.max operating current
45 A
Comp.max operating current
45 A
Overall size
1744*1018*1545 MM
Overall size
2364*1018*1545 MM
Power
380V-3PH-50HZ
Power
380V-3PH-50HZ
Power of crankcase heater
140 W
Power of crankcase heater
140 W
Weight
630 KG
Weight
690 KG

Characteristics

●Cabin type structure,compact structure and good appearance.
Scientific designs,steady air flow,fully exert capacity of the unit.
Rational performance design,high energy efficiency.
Convenient design for maintain(front board can be easily taken down).
Various brand of compressor for your choice.
Fits different refrigerant: R134a·R404A ·R507 ·R22.

Application

Refrigeration industry,cold room project
Agricultural,food,restaurant,chemical industry

Application reality

product accessories
Expansion valve Reversing valve Evaporator Bitzer compressor
