Quick Details
-
Brand Name:
-
DTP
-
Model Number:
-
105075
-
Battery Size:
-
10*50*75mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
100g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Type:
-
Li-polymer
-
Warranty:
-
12 Months, 3months-1year
-
Cycle life:
-
500 Times 80% DOD
-
Material:
-
Li(NiCoMn)O2
-
Discharge Cut-off Voltage:
-
3.0V
-
Discharge rate:
-
1C
-
Charge current:
-
Max 0.5C
-
Charge Cut-off voltage:
-
4.2V
-
Continuous discharge current:
-
1C
-
Features:
-
3.7v 5000mah battery
Quick Details
-
Storage Type:
-
Normal temperature storage
-
Anode Material:
-
NCM
-
Application:
-
Consumer Electronics
-
Brand Name:
-
DTP
-
Model Number:
-
105075
-
Battery Size:
-
10*50*75mm
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
100g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
1C
-
Type:
-
Li-polymer
-
Warranty:
-
12 Months, 3months-1year
-
Cycle life:
-
500 Times 80% DOD
-
Material:
-
Li(NiCoMn)O2
-
Discharge Cut-off Voltage:
-
3.0V
-
Discharge rate:
-
1C
-
Charge current:
-
Max 0.5C
-
Charge Cut-off voltage:
-
4.2V
-
Continuous discharge current:
-
1C
-
Features:
-
3.7v 5000mah battery
Specification

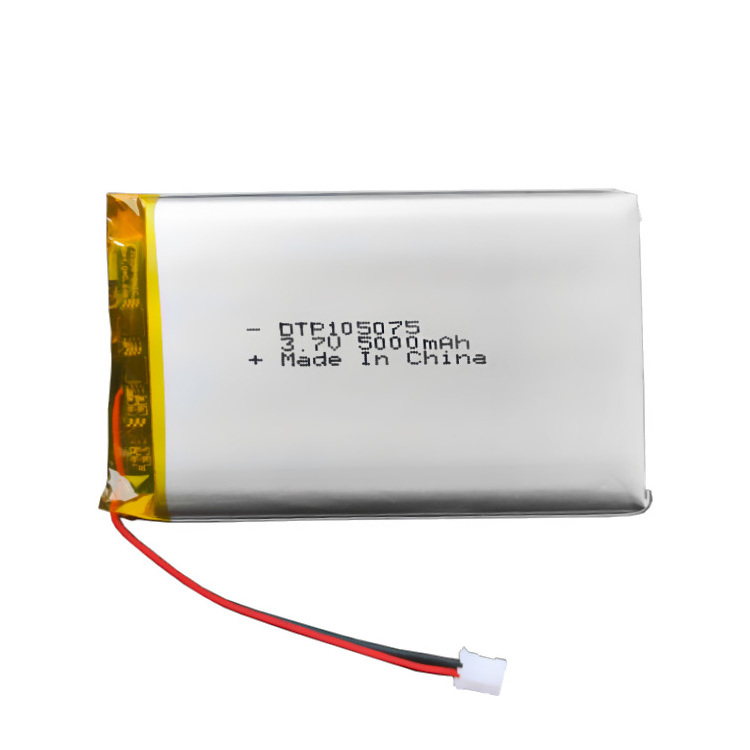

KC CE Certified Rechargeable Lithium Ion DTP 105075 3.7V 5V 5000mAh Lipo battery
Main parameters:
Max dimension:10.1*50.5*76.5mm or customized
Capacity:5000mah
Voltage:3.7 volt
Weight: 100 g
|
Item
|
Parameter
|
|
|
|
Battery model
|
105075
|
|
|
|
Nominal voltage
|
3.7V
|
|
|
|
Minimum capacity
|
5000mAh (0.2C discharge)
|
|
|
|
Charging voltage
|
4.2V
|
|
|
|
Discharging cut-off voltage
|
3.0V
|
|
|
|
Standard charging
|
0.2C /4.2V
|
|
|
|
Max charging
|
1.0C /4.2V
|
|
|
|
Standard discharging
|
0.2C/3.0V
|
|
|
|
Max discharging
|
continuous discharge
|
1.0C/3.0V
|
|
|
|
non-continuous discharge
|
2.0C/3.0V
|
|
|
Shipment voltage
|
≥3.85V
|
|
|
|
Battery pack impedance
|
≤80mΩ
|
|
|
|
Operating temperature
|
Charging: 10°C ~ 45°C
|
|
|
|
|
Discharging: -20°C ~60°C
|
|
|
|
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time ) |
-10℃~25℃
|
(12 months ≥85% )
|
|
|
|
-10℃ ~45℃
|
(6 months ≥85% )
|
|
|
|
-10℃~55℃
|
(1 month ≥90% )
|
|
|
|
20±5℃ is the recommended storage temperature
|
|
|
|
Visual Inspection
|
There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
|
|
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
|
|
Details Images
Below model list for your reference
If you can't find the right model ,please email us directly .
|
Model
|
Voltage
|
capacity
|
certificate
|
Discharge current
|
MAX size
|
|
DTP401430
|
3.7v
|
130mAH
|
KC,UL,CE,MSDS
|
1C
|
4.2*14.5*32mm(T*W*L)
|
|
DTP452030
|
3.7v
|
200mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
4.7*20.5*32mm(T*W*L)
|
|
DTP502030
|
3.7v
|
250mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.2*20.5*32mm(T*W*L)
|
|
DTP502535
|
3.7v
|
400mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.2*20.5*37mm(T*W*L)
|
|
DTP503030
|
3.7v
|
400mAH
|
KC,CB,UL,CE,MSDS,UN38.3
|
1C
|
5.2*30.5*32mm(T*W*L)
|
|
DTP403040
|
3.7v
|
450mAH
|
KC,UL,CE,MSDS
|
1C
|
4.2*30.5*42mm(T*W*L)
|
|
DTP652533
|
3.7v
|
500mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
6.7*25.5*35mm(T*W*L)
|
|
DTP503040
|
3.7V
|
550mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.2*30.5*42mm(T*W*L)
|
|
DTP702248
|
3.7v
|
700mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
7.2*30.5*50mm(T*W*L)
|
|
DTP503048
|
3.7V
|
720mAH
|
KC,CB,UL,CE,MSDS,UN38.3
|
1C
|
5.2*30.5*50mm(T*W*L)
|
|
DTP603048
|
3.7v
|
900mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
6.2*30.5*50mm(T*W*L)
|
|
DTP703048
|
3.7V
|
1000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
7.2*30.5*50mm(T*W*L)
|
|
DTP803040
|
3.7V
|
1000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
8.2*30.5*50mm(T*W*L)
|
|
DTP523455
|
3.7v
|
1000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.4*34.5*57mm(T*W*L)
|
|
DTP503759
|
3.7v
|
1200mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.2*37*61mm(T*W*L)
|
|
DTP103040
|
3.7v
|
1200mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*30.5*42mm(T*W*L)
|
|
DTP903450
|
3.7v
|
1500mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
9.2*34.5*52mm(T*W*l)
|
|
DTP505060
|
3.7v
|
1700mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.2*50.5*62mm(T*W*L)
|
|
DTP103450
|
3.7V
|
1800mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*30.5*52mm(T*W*L)
|
|
DTP634169
|
3.7v
|
2000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
6.5*41.5*71mm(T*W*L)
|
|
DTP555075
|
3.7v
|
2500mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.7*50.5*77mm(T*W*L)
|
|
DTP655565
|
3.7v
|
2800mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
6.7*55.5*67mm(T*W*L)
|
|
DTP554499
|
3.7v
|
3000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
5.5*44.5*99mm(T*W*L)
|
|
DTP105050
|
3.7v
|
3000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*50.5*52mm(T*W*L)
|
|
DTP104065
|
3.7v
|
3000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*40.5*67mm(T*W*L)
|
|
DTP894472
|
3.7v
|
3200mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
9.1*44.5*74mm(T*W*L)
|
|
DTP656294
|
3.7v
|
4000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
6.5*62.5*96mm(T*W*L)
|
|
DTP105565
|
3.7v
|
4200mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*55.5*67mm(T*W*L)
|
|
DTP105085
|
3.7v
|
5000mAH
|
KC,UL,CE,MSDS,UN38.3
|
1C
|
10.2*50.5*87mm(T*W*L)
|
|
DTP401220
|
3.7v
|
60mAH
|
CB
|
1C
|
4.2*12.5*22mm(T*W*L)
|
|
DTP452025
|
3.7v
|
150mAH
|
CB,UN38.3
|
1C
|
4.7*20.5*27mm(T*W*L)
|
