1.The machine has a swinging function,and there has a various welding modes can be chosen to achieve the best welding performance.
2.Wavering speed,angle,off-centering position,and left and right stay time can be adjusted.Additionally,all parameters are displayed by digital tube.

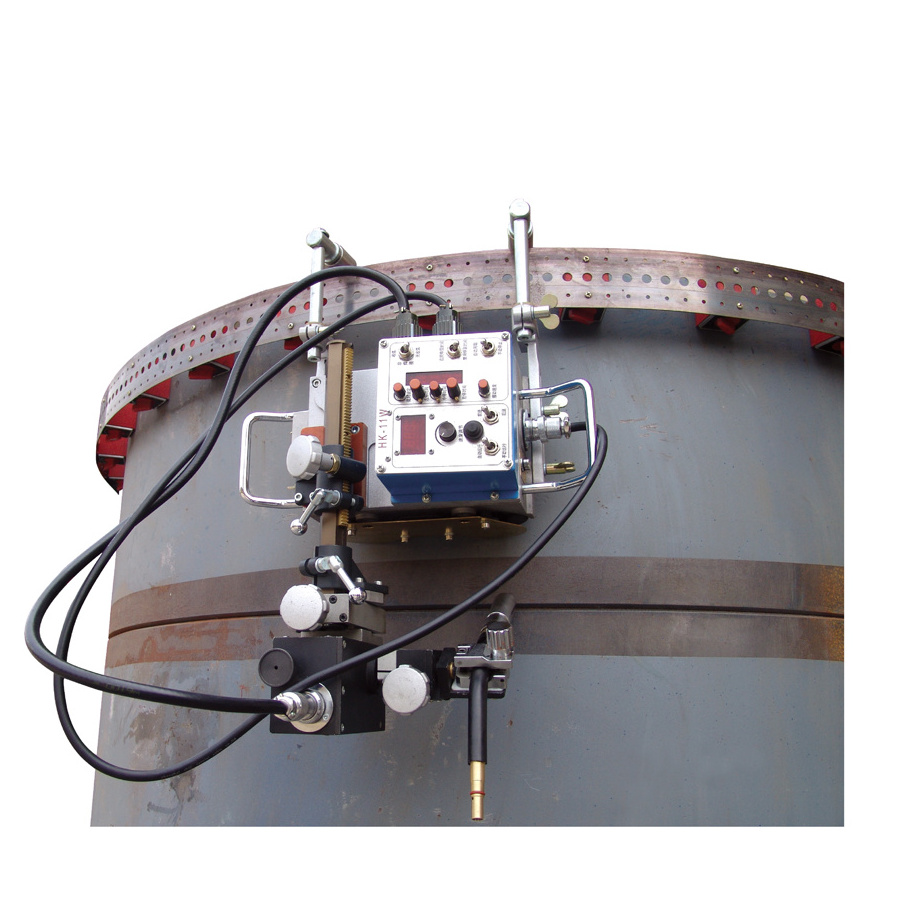

3.The machine has flexible rails,it suit for welding of pipe with large diameter.
4.The machine uses a brushless-motor-driven to ensure the machine move steadily and high-quality welding performance.
5.The drive is partially installed with manually operated clutch,which is convenient for rapid positioning of the machine on the track,the guide wheel is also provided with the engaging and disengaging gear,which is very convenient for install and unintall of trolley and guide rail.
6.Vacuum sucker guide rail maybe chosen for welding of stainless steel or aluminum materials
7.The machine is widely used for ship,bridge,engine,petrochemical complex,and steel structure works,etc.
Note:Section bar tracks(optional parts)can be choosen for vertical welding.

1)  Carriage body: It is the skeleton of the whole machine; the supporter of the other parts.

2)  Drive: As a driven device, it is installed in the body cavity of the carriage, driven by the DC motor which equipped with the reducer casing, and then through the worm transmit the power to the wheels, to achieve carriage’s walk.

3)  Control box: can control all functions of carriage; details refer to "Control Panel Help."

4)  Regulating moving seat: as a device to regulate the location of welding gun, during welding it can adjust up and down about.

5)  Welding gun angle adjustment device: It can easily and accurately make the gun center on the weld and fine adjust the angle of gun.

6)  Welding gun wiggler: Guidance for all kinds of swing mode welding.

7)  Welding gun holder: As a holding device, you can easily repair, adjust, and demount the gun.

8)  Portable handle: During non-working state, that is to say, the carriage not adsorbed at the plate (tube), you can make the machine easily shift location using this handle.

9)  Installment handles: When installing / demounting the carriage, be sure to firmly grip the handles because there is strong magnet in the carriage’s four wheels, if you do not grasp the intensity, strong suction shall cause a huge impact so that the machine is damaged.

10)Guide wheels: Roll along the rail to guide the accurate welding parts.

11)Steel strip guide rail: It is installed with permanent magnets to avoid the phenomenon    that the carriage leaves away the welding line.
