TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor
TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor

TZONE BT06 Cold Chain Logistics Temperature Humidity Data Logger Bluetooth Temperature Monitor

FOB Reference Price: Get Latest Price
≥1 Pieces
US $15
≥100 Pieces
US $13.5
≥1000 Pieces
US $10
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Material:
Plastic
Color:
White
Type:
data logger
Protocol standard:
Bluetooth 5.0
Send interval:
1S, adjustable
Built in battery:
620mAh /3V(replaceable)
Output power:
4dBm, adjustable
Storage:
Can be save 32000 temperature&humidity data
Operating temperature range:
-20℃~ +60℃
Temperature detection accuracy:
±0.3℃(-20~40℃),±0.5℃(other)
Temperature resolution:
0.1℃
Operating Humidity range:
0~90%RH
Record Interval:
10min(10s~180h)

Quick Details

Place of Origin:
Shenzhen
Brand Name:
TZONE
Model Number:
BT06
Material:
Plastic
Color:
White
Type:
data logger
Protocol standard:
Bluetooth 5.0
Send interval:
1S, adjustable
Built in battery:
620mAh /3V(replaceable)
Output power:
4dBm, adjustable
Storage:
Can be save 32000 temperature&humidity data
Operating temperature range:
-20℃~ +60℃
Temperature detection accuracy:
±0.3℃(-20~40℃),±0.5℃(other)
Temperature resolution:
0.1℃
Operating Humidity range:
0~90%RH
Record Interval:
10min(10s~180h)
Product Description

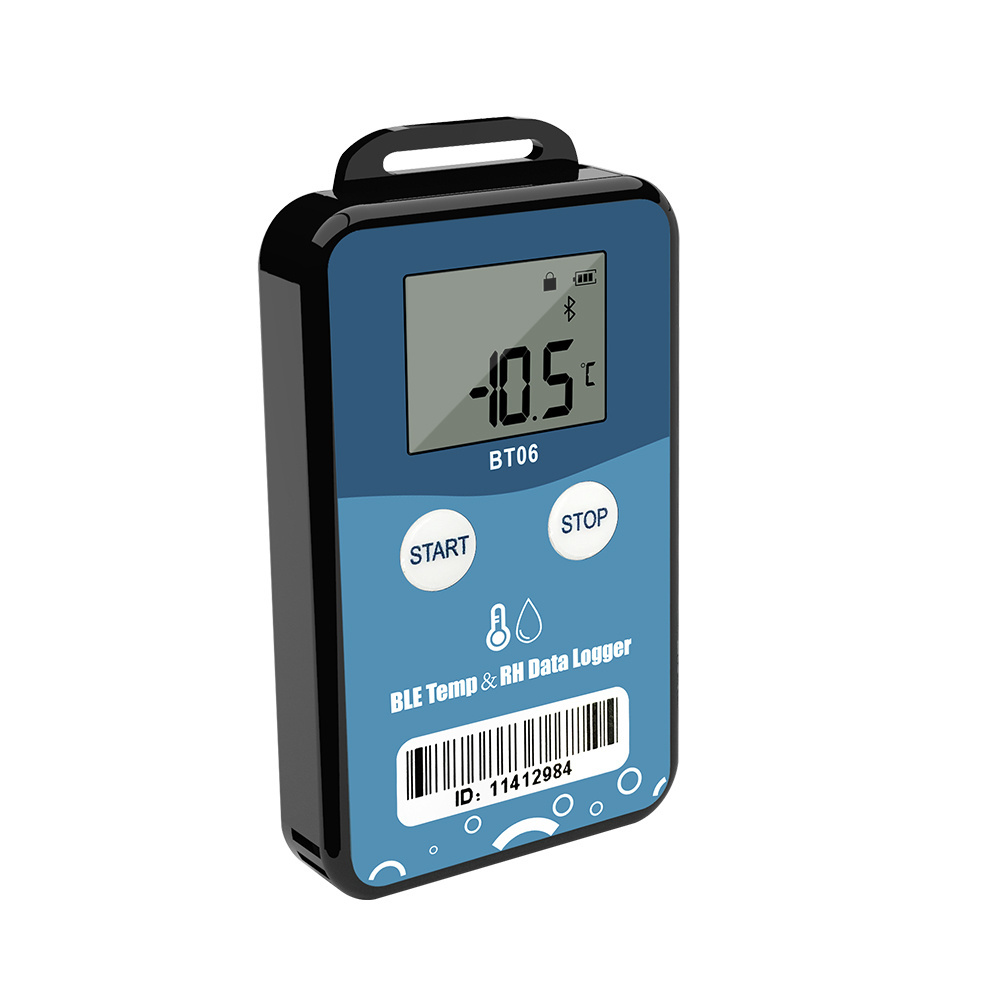

TZ-BT06 is Bluetooth Low Energy temperature&humidity data logger with the latest Bluetooth 5.0 technology. It can collect temperature&humidity of the surrounding environment. Such data can be recorded as history data. BT06 can store up to 32000 pieces of the temperature&humidity data.when the long range mode is enabled, the transmission distance is up to 300 meters, and the LCD screen can view the temperature&humidity data in real time. Mobile phone with Bluetooth 4.0 or above can download and install App.It can store and monitor temperature&humidity of the environment comprehensively. Its characteristics are small-sized, low-weighted, easily portable and highly accurate for wide use in cold chain logistics, archives, labs, museums, etc.

Product Name
Cold chain logistic BT06bluetooth temperature&humidity data logger
Dimension
86mm*48mm*12mm
N.W
40g
Protocol standard
Bluetooth 5.0
Report interval
1S, adjustable
Built in battery
620mAh /3V(replaceable)
Transmission distance
8dbm:(the biggest)
300 meters(long range mode,only Bluetooth 5.0 or
above is supported)
150 meters(Non-long range mode)
Storage capacity
32000 readings
Battery life
1 year
Operating temperature range
-20℃~ +60℃
Humidity detection range
0~90%RH
Temperature accuracy
±0.3℃
Humidity accuracy
±3%RH
Products Show

TZ-BT06 is Bluetooth Low Energy temperature&humidity data logger

Main Features

1. High accuracy and stability;
2. Bluetooth 5.0;
3. Long distance wireless transfer;
4. Built-in highly sensitive temperature&humidity sensor;
5. Real-time broadcast temperature&humidity,can view the temperature&humidity in real time on the LCD;
6. It can store 32000 pieces of temperature&humidity data(when the storage space is full, the first 256 pieces of data will be overwritten);
7. Enable long range mode, the transmission distance is up to 300 meters
8. Can be set the scope of temperature&humidity alarm;
9. History report can be sent to specified email;
10. By pairing Bluetooth printer to print the data report;
11. Can by OTA update version

A free mobile applications which provided by our company to the users, can connect the TZ-BT04 through the Bluetooth of the mobile devices and do the settings and data transmisson, recording. Apply the Bluetooth BLE way, so you can use Android / IOS phone for temperature and humidity monitoring. Open the App's software, the first to see is the scan code interface; there are three interface buttons, they are "Real time", "Query", "Configure"; and the upper-left corner of the menu button.

Applications
Our Company

Tzone Digital Technology Co.,Ltd, established in 2006, is a leading hi-tech enterprise with experienced R&D team, production line, quality management and sales department. Our production procedure is fully complied with ISO9001 standard with around 1500 square meters production scale. All products from Tzone are certified the CE, FCC, RoHs etc.


Tzone has become one of the most professional temperature and humdity monitoring experts. Our products include USB temperature data logger, wireless temperature receiver and sensor, LoRa/LoRaWan gateway and sensor, vehicle GPS trackers and so on, which are widely used in laboratories, pharmaceutical, medical, freezers, coolers, shipping containers, warehouses, environmental monitoring and food storage applications.

Exhibitions

We have attended vaious of exhibitions globally and still going on ... We met our clients from different countries in the shows.

Our Certifications

All our procedure is in full compliance with the ISO9001 standard and all the products have passed certificates such as CE, FCC, ROHS and so on.
