Quick Details
-
Place of Origin:
-
shanghai
-
Dimension(Long * Breadth * High):
-
7270x2800x3300mm
-
Machine Weight:
-
12460 kg
-
Bucket capacity:
-
2.3CBM
-
Bucket Capacity:
-
2.3m3
-
Rated Payload:
-
4000kg
-
Operating Weight:
-
12460kg
-
Air Cleaner:
-
Three Stage Air Cleaner
-
Alternator:
-
70Amp
-
LxWxH:
-
7270x2800x3300mm
-
Manufacturer/Model:
-
WEICHAIWP6G175E22
-
Rated Power:
-
129kW/2200rpm
-
Transmission Type:
-
Planetary Powershift
-
Payment term:
-
30%T/T
Quick Details
-
Engine Brand:
-
Chinese Brand
-
Power:
-
129KW
-
Brand Name:
-
oriemac
-
Place of Origin:
-
shanghai
-
Dimension(Long * Breadth * High):
-
7270x2800x3300mm
-
Machine Weight:
-
12460 kg
-
Bucket capacity:
-
2.3CBM
-
Bucket Capacity:
-
2.3m3
-
Rated Payload:
-
4000kg
-
Operating Weight:
-
12460kg
-
Air Cleaner:
-
Three Stage Air Cleaner
-
Alternator:
-
70Amp
-
LxWxH:
-
7270x2800x3300mm
-
Manufacturer/Model:
-
WEICHAIWP6G175E22
-
Rated Power:
-
129kW/2200rpm
-
Transmission Type:
-
Planetary Powershift
-
Payment term:
-
30%T/T

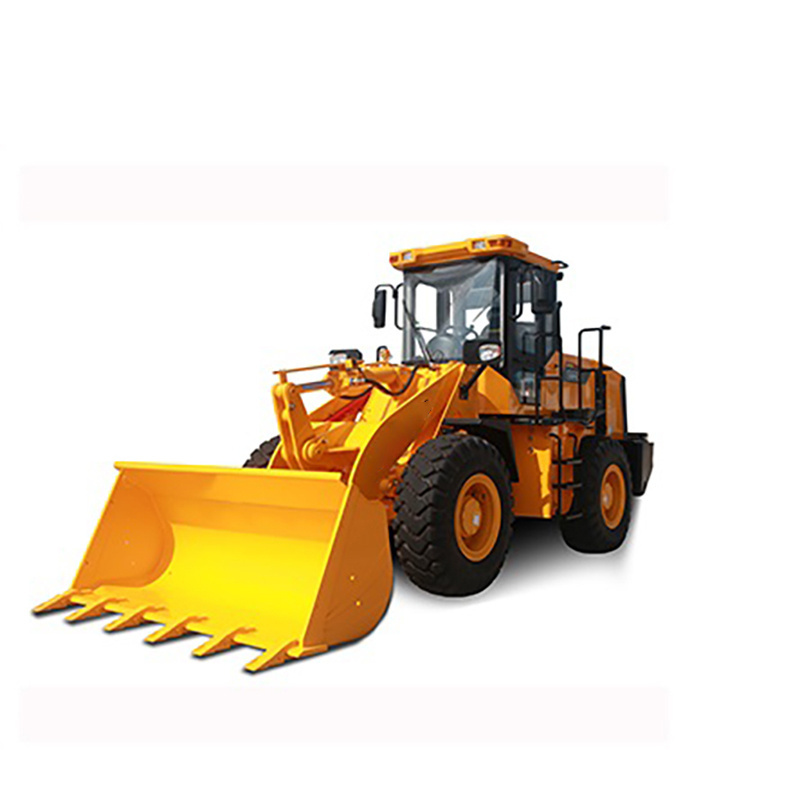

Heavy Duty 4Ton Earthmoving CDM843 1.8M3 Wheel Loader with Chinese Hydraulic
Product Description
Specification
| Rated Power | 129kW/2200rpm |
| Bucket Capacity | 2.3m3 |
| Rated Payload | 4000kg |
| Operating Weight | 12460kg |
| LxWxH | 7270x2800x3300mm |
| Maker/Model | WEICHAIWP6G175E22 |
| Rated Power | 129kW/2200rpm |
| Maximum Torque | 680N-m/ 1400-1600rpm |
| Bore x Stroke | 105x130mm |
| No. of Cylinders /Displacement | 6/6.75L |
| Air Cleaner | Three Stage Air Cleaner |
| Alternator | 70Amp |
| Battery | 2-24V/ 105Ah |
| Starting Motor | 24V/6kW |
| Transmission Type | Planetary Powershift |
| Shift Type | Mechanical Powershift Control |
| Pressure of Transmission | 1.1-1.5MPa |
| Torque Converter Type | Single-stage.Duo-turbine.4-element |
| Axles | Rigid (Front)&Oscillating (Rear) |
| Rearaxle Oscillation | around 10° |
| Differential | Conventional |
| Main Reducer | Spiral Bevel,1-stage Reduction |
