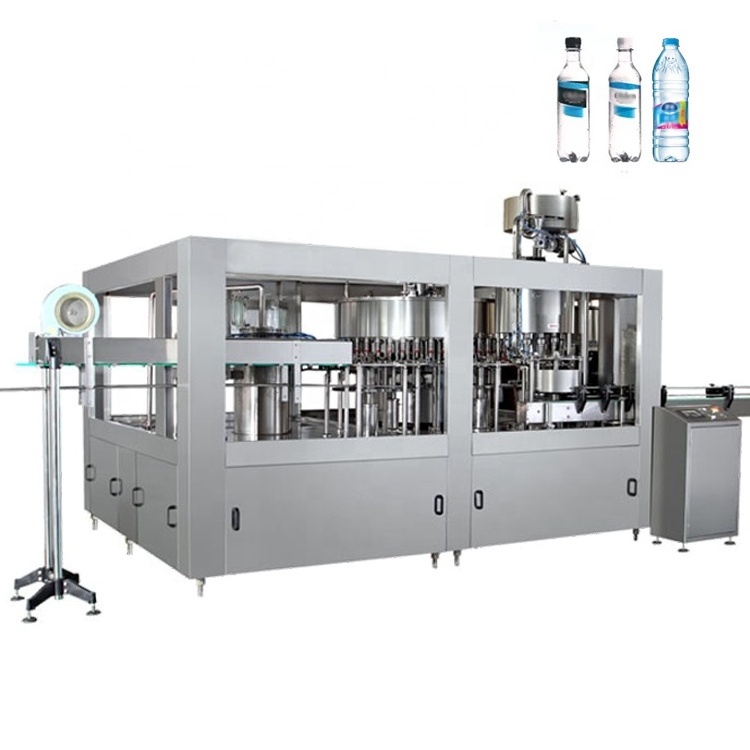

Full Automatic 3 in 1 mineral water filling machine equipment water pure filling packing machine

Full Automatic 3 in 1 mineral water filling machine equipment water pure filling packing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±1%

Voltage:: 220v/380v 50HZ

Place of Origin:: Hebei, China

Brand Name:: Shean

Dimension(L*W*H):: 2470X1970X2350 mm

Weight:: 3000 KG

Product name:: Plastic Automatic Filling Machine Made In China

Capacity:: 2000-30000bph

Filling range:: 100-1000ml

Usage:: Beverage Packaging

Filling material:: Flowing Liquid

Material:: Food grade stainless steel 304/316

Control:: PLC Control

Bottle type:: PET/Plastic/Glass Bottle

Function:: Rinsing Filling Capping

Quick Details

Machinery Capacity:: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH

Packaging Material:: Plastic, Glass

Filling Material:: Beer, Milk, Water, Oil

Filling Accuracy:: ±1%

Voltage:: 220v/380v 50HZ

Place of Origin:: Hebei, China

Brand Name:: Shean

Dimension(L*W*H):: 2470X1970X2350 mm

Weight:: 3000 KG

Product name:: Plastic Automatic Filling Machine Made In China

Capacity:: 2000-30000bph

Filling range:: 100-1000ml

Usage:: Beverage Packaging

Filling material:: Flowing Liquid

Material:: Food grade stainless steel 304/316

Control:: PLC Control

Bottle type:: PET/Plastic/Glass Bottle

Function:: Rinsing Filling Capping

Product Application 1.The mineral water production line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing. 2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed. 3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine. 4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss. 5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.

Washing Part
1.Into bottle way is air conveyor direct connection with Bottle dial .

2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

4. 304/316 stainless steel washing pump make the machine more durable .

Filling Part
1.During filling juice ，we will make a cover installed on the filling valve, avoiding the fruit pulp return inside reflux pipe to block the pipe. 2.Filling valve and bottle lifter uses adopts German Igus bearings which are corrosion-resistant and maintenance-free.

3.By install CIP cleaning cups, the filling machine can realize online CIP cleaning 4.During filling process,there is no reflux of product, avoiding blockage of product.

Capping Part
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.

2.All 304/316 stainless steel construction 3.No bottle no capping

4. Automatic stop when lack of bottle 5.Capping effect is stable and reliable, Defective rate ≤0.2%

FAQ

1. Can you guarantee your quality if we order on you ?
Of course.Best quality is our principle all the time.You can be assured on our production.
2.What should I do if we are not able to operatethe the machine when we receive it?
Operation manual guides you the installation.Besides, we haveprofessional after-sale groupto customer 's site to solve any problems.weprovide 7*24 hours on-line technical support.
3.How could I get the spares on machines?
We will send extra sets of easy broken spares andaccessories likeo ring etc.Non-artificial damagedspares will be sent freelyduring 1 year 's warranty.
4.Can this machine fill paste or cream ?
The spout pouch filling machine can fill any liquidas juice,beverage,soy milk,cocktail and variouscondiments like tomato sauce,bean sauce etc.
5.How to maintain such a machine ?
Please clean every part after filling thus can givelong using life of machine and make a carefullyclean 3 times a year.
