Quick Details
-
Use:
-
Blanket, Felt, Industry, Home Textile, BABY & KIDS, Blankets & Throws, Car, Home Decor
-
Weight:
-
100-1200gsm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TexasPro
-
Model Number:
-
CF
-
Product name:
-
Carbon Fiber Sheet
-
Type:
-
1k 3k 6k 12k 24K
-
Certification:
-
CE
-
Weave:
-
Twill Plain Unidirectional
-
Application:
-
Sports Equipment
-
Size:
-
Customized Size
-
Yarn:
-
Toray Yarn
-
MOQ:
-
1000sqm
-
Delivery:
-
7-15days
Quick Details
-
Pattern:
-
Embossed
-
Material:
-
100% Carbon Fiber
-
Feature:
-
Abrasion-Resistant, Anti-Static, Heat-Insulation, Waterproof, Water Resistant, Flame Retardant, Chemical-Resistant
-
Use:
-
Blanket, Felt, Industry, Home Textile, BABY & KIDS, Blankets & Throws, Car, Home Decor
-
Weight:
-
100-1200gsm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TexasPro
-
Model Number:
-
CF
-
Product name:
-
Carbon Fiber Sheet
-
Type:
-
1k 3k 6k 12k 24K
-
Certification:
-
CE
-
Weave:
-
Twill Plain Unidirectional
-
Application:
-
Sports Equipment
-
Size:
-
Customized Size
-
Yarn:
-
Toray Yarn
-
MOQ:
-
1000sqm
-
Delivery:
-
7-15days

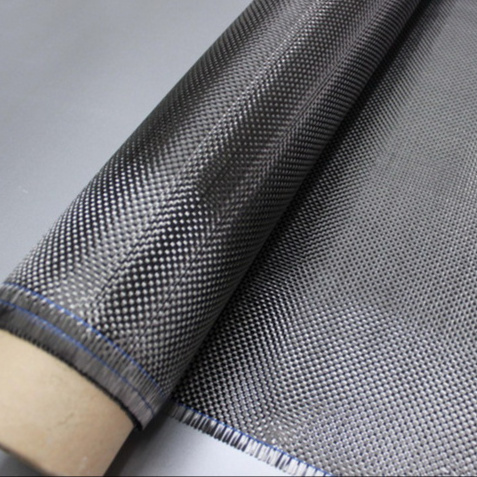

Carbon fibre fabrics in all typical weave styles including UD, Plain, Twill, Satin (four harness, five harness, eight harness) and stitched multiaxials. Advanced manufacturing equipment, standard quality management system and experienced engineers ensure consistent product quality. Non crimp fabric fibre bundles are flat and straight to maximize the strength advantage of the fibre.
CHARATERISTICS OF CARBON FIBER:
High strength, high modulus, light weight, fatigue resistant, dimensionally stable, electrical conductivity, beam penetrability, anti-corrosive, thermal stability.
SPECIFICATIONS:
FABRIC: 1K, 3K, 6K, 12K, 24K
WEIGHT: 100-1200gsm
WIDTH: 10-200cm
WEAVE: plain/twill/satin
APPLICATIONS:
Synchronizer, canopy, bumper, decoration body, racket, sound trough, kayak, ski, models, helmets, radomes, ducting, brake linings, toolings.
OTHER PRODUCTS AVAILABLE:
1K Carbon Fiber Fabrics: 125g/sqm. Twill and Plain.
3K Carbon fabric: 4H, 5H, 8H satin, plain and twill from 200G/M2 ~ 400G/M2 are available
6K Carbon Fiber Fabrics: 340g/sqm. 370g/sqm. 410g/sqm. Plain, Twill and 4HS(Satin weave)
12K Carbon Fiber Fabrics: 520g/sqm. 600g/sqm. 650g/sqm. Plain and Twill.
Carbon Fiber UD Fabric
|
Products Code |
0° |
90° |
Density
|
||
|
Fiber |
Density (g/m²) |
Fiber |
Density (g/m²) |
||
|
C-UD200 |
12K |
200 |
Other |
20 |
220 |
|
C-UD320 |
12K |
300 |
Other |
20 |
320 |
|
C-UD330 |
12K |
300 |
Other |
30 |
330 |
|
C-UD420 |
12K |
400 |
Other |
20 |
420 |
Carbon Fiber Roving (Plain Weave)
|
Products code |
Warp |
Weft |
Density
|
||
|
Fiber |
Density (g/m²) |
Fiber |
Density (g/m²) |
||
|
C-WP100 |
3K |
50 |
3K |
50 |
100 |
|
C-WP200 |
3K |
100 |
3K |
100 |
200 |
|
C-WP380 |
12K |
190 |
12K |
190 |
380 |
|
C-WP400 |
12K |
200 |
12K |
200 |
400 |
Carbon Fiber Roving (Twill Weave)
|
Code |
Warp |
Weft |
Density
|
||
|
Fiber |
Density (g/m²) |
Fiber |
Density (g/m²) |
||
|
C-WT100 |
3K |
50 |
3K |
50 |
100 |
|
C-WT200 |
3K |
100 |
3K |
100 |
200 |
|
C-WT300 |
3K |
150 |
12K |
150 |
300 |
|
C-WT640 |
12K |
320 |
12K |
320 |
640 |
Carbon Fiber Multiaxial fabrics
|
Code |
0°
|
+45°
|
90°
|
-45°
|
Denstity
|
|
C-LT190 |
95 |
-- |
95 |
-- |
190 |
|
C-LT320 |
158 |
-- |
158 |
-- |
316 |
|
C-BX150 |
-- |
75 |
-- |
75 |
150 |
|
C-BX180 |
-- |
89 |
-- |
89 |
178 |
|
C-BX200 |
-- |
99 |
-- |
99 |
198 |
|
C-BX300 |
-- |
150 |
-- |
150 |
300 |
|
C-BX400 |
-- |
200 |
-- |
200 |
400 |
|
C-BX600 |
-- |
301 |
-- |
301 |
602 |
|
C-TLX400 |
205 |
102 |
-- |
102 |
409 |
|
C-TLX600 |
205 |
200 |
-- |
200 |
605 |
|
C-QX800 |
205 |
200 |
204 |
200 |
809 |
