Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8275x2490x3450mm
-
Cargo Tank Dimension:
-
5600*2300*1400 mm
-
Kerb mass (kg):
-
11200
-
Rated loading capacity(kg):
-
13670
-
Total mass(kg):
-
25000
-
Max.loading(kg):
-
25000
-
Max. speed (km/h):
-
77
-
Min. turning diameter (m):
-
18
-
Max. grade ability (%):
-
30
-
Wheelbase (mm):
-
3800+1350
-
Engine:
-
WD615.50
-
Rated output power:
-
213kw
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
25000kg
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, No after-sales service, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8275x2490x3450mm
-
Cargo Tank Dimension:
-
5600*2300*1400 mm
-
Kerb mass (kg):
-
11200
-
Rated loading capacity(kg):
-
13670
-
Total mass(kg):
-
25000
-
Max.loading(kg):
-
25000
-
Max. speed (km/h):
-
77
-
Min. turning diameter (m):
-
18
-
Max. grade ability (%):
-
30
-
Wheelbase (mm):
-
3800+1350
-
Engine:
-
WD615.50
-
Rated output power:
-
213kw

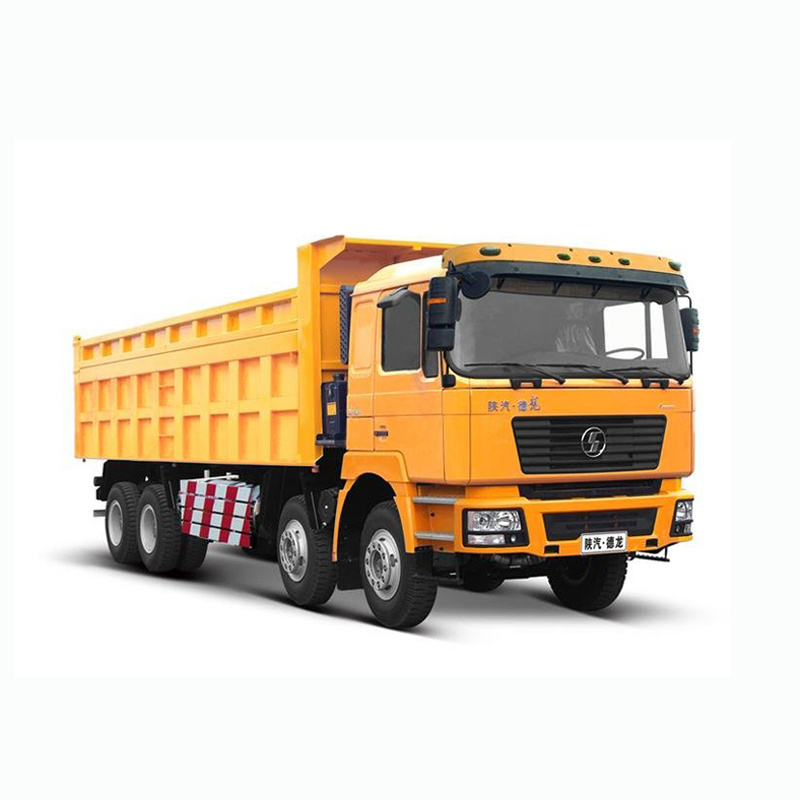

SHACMAN F3000 Dump Truck
Product Paramenters
|
Model
|
|
|
F3000 Dump Truck
|
||
|
Kerb mass (kg)
|
|
|
11200
|
||
|
Rated loading capacity(kg)
|
|
|
13670
|
||
|
Total mass(kg)
|
|
|
25000
|
||
|
Max.loading(kg)
|
|
|
25000
|
||
|
Max. speed (km/h)
|
|
|
77
|
||
|
Min. turning diameter (m)
|
|
|
18
|
||
|
Approach/Departure(°)
|
|
|
16/66
|
||
|
Max. grade ability (%)
|
|
|
30
|
||
|
Appearance dimensions (mm)
Length×Width×Height |
|
|
8275×2490×3450
|
||
|
Wheelbase (mm)
|
|
|
3800+1350
|
||
|
Overhang(front/rear)
|
|
|
1525/1600
|
||
|
Track width (mm) (front/rear)
|
|
|
1939/1800
|
||
|
Engine
|
|
|
Weichai Engine, WD615.50,290HP EURO II or Euro 3
|
||
|
Rated output power
|
|
|
213kw
|
||
|
Torque(N.m r. p. m)
|
|
|
1160/1100-1600
|
||
|
Displacement(L)
|
|
|
9.726
|
||
|
Fuel tank capacity (L)
|
|
|
380L iron tank
|
||
|
Tire
|
|
|
12R22.5 10+1pc
|
||
|
Clutch
|
|
|
φ430 diaphragm spring
|
||
|
Gearbox
|
|
Transmission
|
9JS135, 9 Forwards,1 Backwards
|
||
|
|
|
Gear ratio
|
12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1 R12.66
|
||
|
Front axle
|
|
|
MAN 7.5T front axle
|
||
|
Drive axle
|
|
|
STR 16T×2 axle
|
||
|
Steering
|
|
|
technology(left-hand drive)
|
||
|
Brake
|
Service brake
|
|
With dual-circuit compressed air brake
|
||
|
|
Park brake
|
|
Power spring brake acting on front & rear wheel
|
||
|
Cab
|
|
|
F2000 cab, single bed, Manual window lifter, A/C
|
||
|
Body dimensions (mm)
|
|
|
5600×2300×1400mm(18m3)
bottom 8mm,side 6mm |
||
