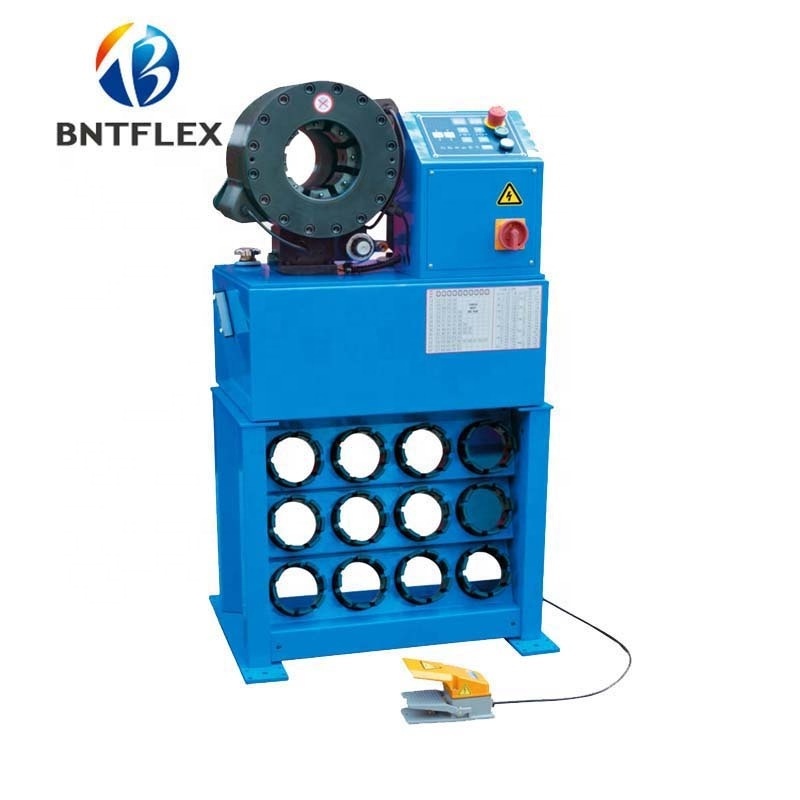

3 inch Digital Portable Hydraulic Hose Crimping Tool/Hose Crimping Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $12000

≥10 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 685mm*530mm*1400mm

Weight:: 480

Power (kW):: 4

Name:: hydraulic hose crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT48C

Color:: Blue

Control System:: Electric Control System

Origin:: Tianjin,China

Certification:: CE

Keywords:: Hydraulic Hose Crimping machine

Power(W):: 4KW

Import duty and Customs clearance cost:: not included

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: BNTFLEX

Voltage:: 380V/220V

Dimension(L*W*H):: 685mm*530mm*1400mm

Weight:: 480

Power (kW):: 4

Name:: hydraulic hose crimping machine

Application:: Crimp Hydraulic Hose, Fitting & Ferrule

Model:: BNT48C

Color:: Blue

Control System:: Electric Control System

Origin:: Tianjin,China

Certification:: CE

Keywords:: Hydraulic Hose Crimping machine

Power(W):: 4KW

Import duty and Customs clearance cost:: not included

CRIMPING MACHINES

BNT48C

PROFESSIONAL WORKSHOP BENCHTOP

KEY ADVANTAGES

• Ergonomic micrometer

• Radial die movement

• High crimping force

• Electronic control and semiautomatic opening

• Cylinder protection

• Easy front access for elbow fittings

• Energy savings

MAIN APPLICATIONS

Dedicated to hydraulic maintenance specialists working on medium sized machines and equipment. Also suitable for assemblers involved in medium sized hoses and quantities.

TECHNICAL SPECIFICATIONS

Motor: 4KW

Noise Level: 71dB

Crimp Range :6-130mm

Crimp force :8610KN

Opening with dies :+31mm

Complete Opening :160mm

Master Die Length :110mm

Standard Dies :74,78,84 ,92,100,108,116mm

Dimensions :685 mm*530mm*1400mm

Net Weight :480kg

Packaging :785*630*1500mm

Gross Weight :580kg

Voltages: 220/240 V, 3Ph, 50 Hz

380/415 V, 3Ph, 50 Hz

208/240 V, 3Ph, 60 Hz

380/415 V, 3Ph, 60 Hz

Capacity : 4ws:3'' max.

Technical Features:

The BNT48C crimping machine is a cost-effective alternative for single-piece production.

BNT48C-models (precision, durability, force and ease of use), the 50model is totally unmatched in it's own class.

AVAILABLE DIE SETS

Product Code	Description	N°	Crimp Range(mm)	Die Length (mm)
1	Die set n. 74 - length 110mm	74	13-16	110
2	Die set n. 78 - length 110mm	78	16-19	110
3	Die set n. 84 - length 110mm	84	19-22	110
4	Die set n. 92 - length 110mm	92	22-26	110
5	Die set n. 100 - length 110mm	100	26-30	110
6	Die set n. 108- length 110mm	108	30-34	110
7	Die set n. 116 - length 110mm	116	34-39	110

Detailed Images

OUR RANGE OF BNT48C POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 3″ 4wb (may vary according to assembly material)
Crimp range: 6 – 130mm
Crimp force: 861t

OUR RANGE OF BNT32D POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 3″ 4wb (may vary according to assembly material)
Crimp range: 6 – 130mm
Crimp force: 861t

OUR RANGE OF BNT48C POWER MACHINES HAVE VARIOUS OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL EXTRAS TO SUIT WHAT YOU NEED.

Capacity: 3″ 4wb (may vary according to assembly material)
Crimp range: 6 – 130mm
Crimp force: 861t
