Quick Details
-
Max. Wheel Weight:
-
75kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Macroway
-
Model Number:
-
MC-362
-
Warranty:
-
12 Months
-
Material:
-
stainless steel
-
Rim Diameter:
-
12"-24"
-
Clamping jaw:
-
14.8x88 mm
-
Application equipment:
-
all kinds of wheel aligner
-
Central hole diameter:
-
15/16 mm optional or custom-made
Quick Details
-
Power:
-
0.25KW
-
Power Supply:
-
110V/220V/380V
-
Balancing Speed:
-
220rpm
-
Max. Wheel Weight:
-
75kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Macroway
-
Model Number:
-
MC-362
-
Warranty:
-
12 Months
-
Material:
-
stainless steel
-
Rim Diameter:
-
12"-24"
-
Clamping jaw:
-
14.8x88 mm
-
Application equipment:
-
all kinds of wheel aligner
-
Central hole diameter:
-
15/16 mm optional or custom-made
Product Description

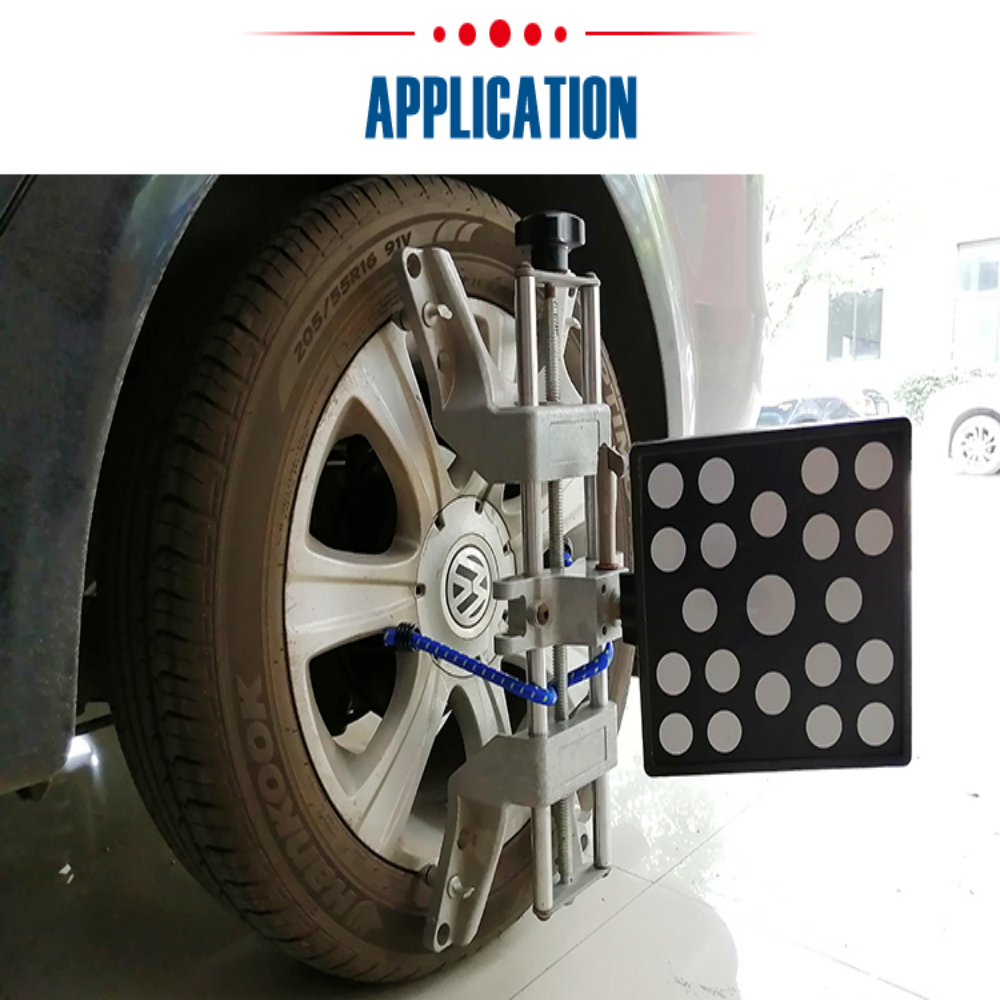

Application
Applied to Four-wheel aligner.It can measure various angles of automobile tires, including front and rear wheel toe-in, front and rear wheel camber, kingpin caster, kingpin inclination, thrust angle, etc.
Application scenarios
4S stores
Car Maintenance shop
Garage
Advantages
1、Reduce tire wear and increase driving safety
2、It can reduce unnecessary fuel consumption and extend driving time
3、It can ensure that the car goes straight and avoid traffic accidents
2、It can reduce unnecessary fuel consumption and extend driving time
3、It can ensure that the car goes straight and avoid traffic accidents
Essential Details
|
Place of Origin:Wuxi, China
|
Warranty: 12 Months
|
|
Certificate:CE
|
Material:stainless steel
|
|
Product Logo:Macroway
|
Payment Condition:100% T/T
|
|
Centre Hole Diameter:φ15/16mm or other size
|
Scope of application:3D/CCD/bluetooth
|
Accessories
|
Part name
|
Quantity
|
|
Clamp
|
1 set (4pcs)
|
|
Clamping jaw
|
16 pcs
|
|
Safety rope
|
4 pcs
|
Parameters
|
Rim Diameter
|
12"-24"
|
|
Central hole diameter
|
Φ16/Φ15 mm optional or custom-made
|
|
Clamping jaw
|
Φ14.8x88 mm
|
|
Application equipment
|
All kinds of wheel aligner
|
Measurement Parameters
|
Alignment Parameters
|
Measurement Range
|
Measurement Accuracy
|
|
Total Toe-in
|
±20︒
|
±0.02︒
|
|
Individual Toe-in
|
±20︒
|
±0.02︒
|
|
Camber
|
±12︒
|
±0.02︒
|
|
Caster
|
±25︒
|
±0.05︒
|
|
Kingpin inclination
|
±25︒
|
±0.05︒
|
|
Flinch Angle
|
±10︒
|
±0.01︒
|
|
Thrust Angle
|
±10︒
|
±0.01︒
|
Packing
First step
debugging product
Second step
packing product
Delivery
