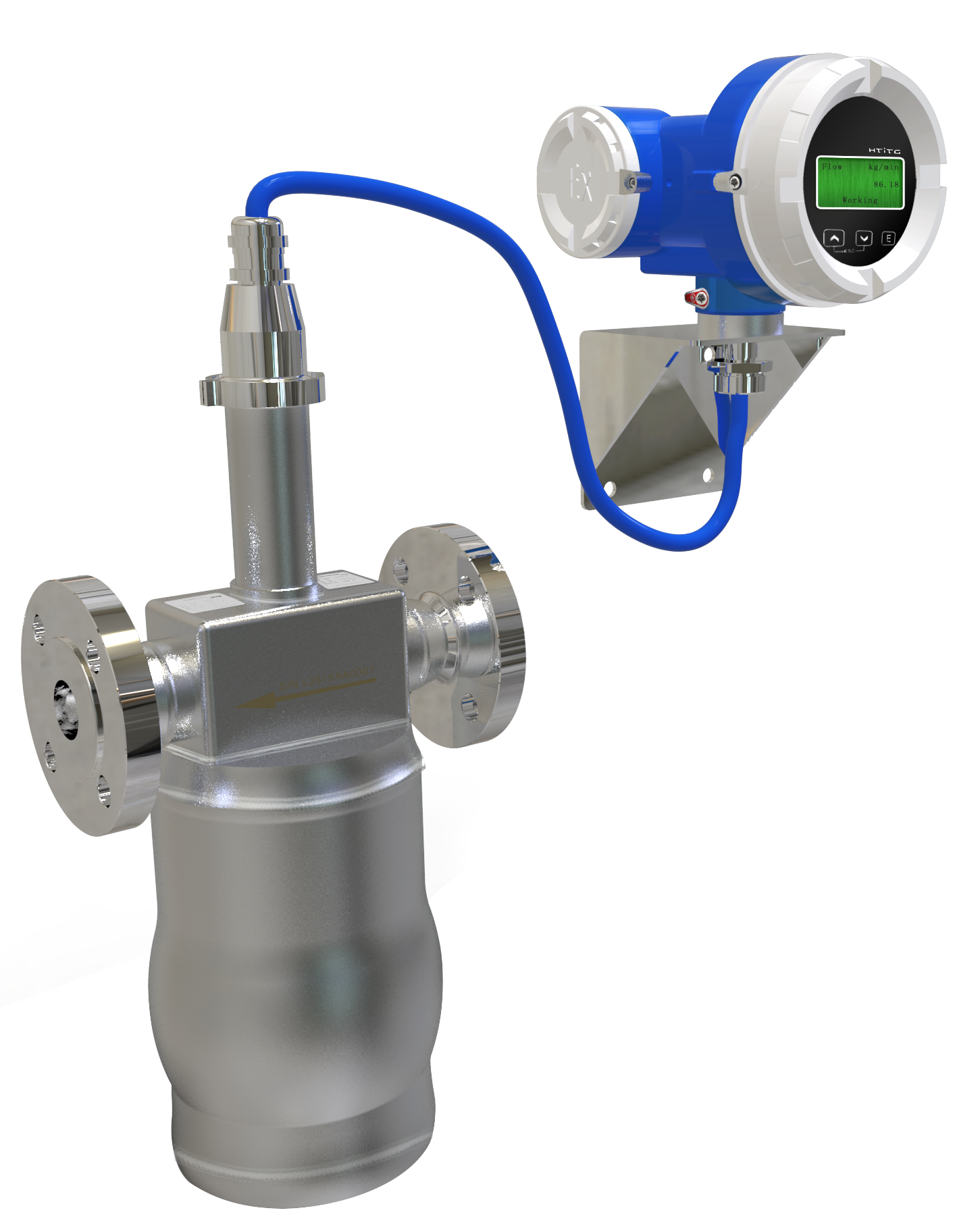

Coriolis mass flow meter
can be widely used for the process detecting and custody transfer/fiscal unit in many industries such as petroleum, petroleum and chemical, chemical industry, pharmacy, paper making, food and energy, and so on. As a fairly advanced kind of flow measurement instrument, it has been paid attention by the circle of measurement and accepted by many customers home and abroad.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AIT
-
Model Number:
-
ACF300
-
Medium:
-
Gas Liquid and Multi-phase flow
-
Repeatability:
-
0.075%~0.5%
-
Pressure:
-
4.0MPa
-
Communication:
-
RS485/Modbus/HART
-
Protection grade:
-
IP67
-
Ambient temperature:
-
-40~+50 degree
-
Diameter:
-
DN4-50mm
-
Flow rate:
-
0.2-5 g/cm3
-
Product Name:
-
0.1% High Accuracy Refrigerant flow meter Coriolis Gas Mass Flow Meter
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Coriolis meters, Other, Digital
-
Warranty:
-
12 mouths
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AIT
-
Model Number:
-
ACF300
-
Medium:
-
Gas Liquid and Multi-phase flow
-
Repeatability:
-
0.075%~0.5%
-
Pressure:
-
4.0MPa
-
Communication:
-
RS485/Modbus/HART
-
Protection grade:
-
IP67
-
Ambient temperature:
-
-40~+50 degree
-
Diameter:
-
DN4-50mm
-
Flow rate:
-
0.2-5 g/cm3
-
Product Name:
-
0.1% High Accuracy Refrigerant flow meter Coriolis Gas Mass Flow Meter
Product Description
0.15 Grade high accuracy coriolis mass flow meter for Gas Liquid and Multi-phase flow
Features
1. Enable to measure directly mass flow rate of fluid in the pipeline without changing any parameters, which avoids the some measurement error of intermediate links. Its mass flowrate can be high accuracy and good repeatability within bigger range of turndown ratio.
2. Fluid measured can be more extensive, such as the steady uniform flow of common viscosity fluid, the high viscosity fluid, non-Newtonian fluid, slurry containing some solid components and the liquid containing some trace of gas.
3. Due to the small vibration, its measuring tube can be regards as non-moving parts, which will reduce the maintenance of flowmeter, enhance the stability and lifetime.
4. Besides the mass flow measurement, the density and temperature and even consistency can also be picked up and output.
Product Paramenters
|
Accurcy
|
Grade 0.15, Grade0.2, Grade0.5, Grade1.0……
|
|
Repeatability
|
0.075％、0.1％、0.25％、0.5％
|
|
Density
|
±0.001g/cm3
|
|
Temp.
|
±1℃
|
|
Ambient temp.
|
-40℃～+55℃
|
|
Relative humidity
|
≤95%
|
|
Measuring medium
|
Gas,Liquid and Multi-phase flow
|
|
Housing material
|
304 stainless steel, ZL401(Transmitter)
|
|
Meter tube material
|
316L、Hastelloy
|
Flow range
|
Standard caliber |
|
Rated flow
|
|
Max. flow
|
|
|
Model
|
inch
|
mm
|
kg/min
|
lb/min
|
kg/min
|
|
RCF-P300-04
|
1/8”
|
DN04
|
6
|
13
|
8
|
|
RCF-P300-08
|
1/4”
|
DN08
|
15
|
33
|
18
|
|
RCF-P300-15
|
1/2”
|
DN15
|
50
|
110
|
55
|
|
RCF-L50-08
|
1/4”
|
DN08
|
15
|
33
|
18
|
|
RCF-L50-25
|
1”
|
DN25
|
200
|
440
|
220
|
|
RCF-T200-04
|
1/8”
|
DN04
|
6
|
13
|
8
|
|
RCF-T200-08
|
1/4”
|
DN08
|
15
|
33
|
18
|
|
RCF-T200-15
|
1/2”
|
DN15
|
72
|
158
|
80
|
|
RCF-T200-25
|
1”
|
DN25
|
200
|
440
|
220
|
|
RCF-TR200-50
|
2”
|
DN50
|
720
|
1587
|
750
|
Application
