Quick Details
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900*700*1100mm
-
Weight:
-
2000 kg
-
Product name:
-
Used For Cherry Picker
-
Application:
-
Indoor and outdoor aerial work
-
Type:
-
Lifting Equipment
-
Capacity:
-
200kg
-
Color:
-
Customiszed
-
Voltage:
-
110v/220v/380v/415v/440v
-
Power supply:
-
AC/DC/Diesel engine/Gasoline engine
-
Control Method:
-
Platform Control and Ground Control
-
Lifting height:
-
10-20m
-
Model:
-
TGZ
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WElift
-
Power:
-
2.2kw
-
Min. Lifting Height:
-
10m
-
Table Size:
-
900*700*1100mm
-
Weight:
-
2000 kg
-
Product name:
-
Used For Cherry Picker
-
Application:
-
Indoor and outdoor aerial work
-
Type:
-
Lifting Equipment
-
Capacity:
-
200kg
-
Color:
-
Customiszed
-
Voltage:
-
110v/220v/380v/415v/440v
-
Power supply:
-
AC/DC/Diesel engine/Gasoline engine
-
Control Method:
-
Platform Control and Ground Control
-
Lifting height:
-
10-20m
-
Model:
-
TGZ

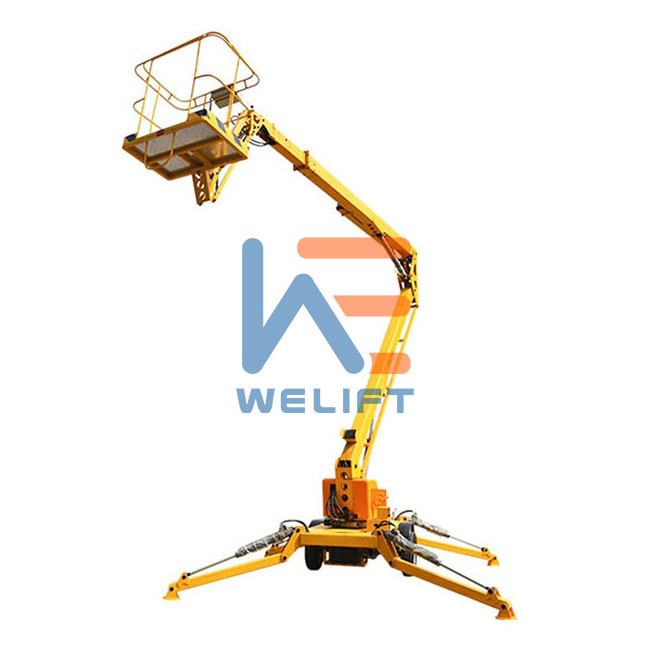

8m-20m Articulated Towable Cherry Picker Tow Behind Boom Lift Used For Sale
Trailer Fold Arm Lift Platform is suitable for indoor and outdoor work, the platform height ranges from 8-22 meters, load capacity can reach 200 kg, the size can be customized, and the user-friendly design.
Multiple power sources:
AC, DC, diesel engine and gasoline engine power all are available, suitable for a variety of working conditions.
|
Model
|
TGZ10
|
TGZ12
|
TGZ12
|
TGZ14
|
TGZ16
|
TGZ18
|
TGZ20
|
||||||
|
Platform height
|
10 m
|
12 m
|
12 m
|
14 m
|
16 m
|
18 m
|
20m
|
||||||
|
Working height
|
12 m
|
14 m
|
14 m
|
16 m
|
18 m
|
20m
|
22m
|
||||||
|
Load capacity
|
200kg
|
|
|
|
|
|
|
||||||
|
Platform size
|
900*700mm
|
|
|
|
|
|
|
||||||
|
Dimensions
|
6.3*1.7*2.1m
|
7.3*1.7*2.1m
|
5.8*1.8*2.2m
|
6.55*1.66*2.13m
|
7.0*1.8*2.25m
|
7.0*1.8*2.25m
|
7.6*1.8*2.25m
|
||||||
|
Weight
|
1700 kg
|
2000 kg
|
1800 kg
|
2500 kg
|
2800 kg
|
3000kg
|
3800 kg
|
||||||
|
Telescopic boom
|
NO
|
NO
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
||||||
|
Working radius
|
5.5m
|
6.5 m
|
7.8 m
|
8.5 m
|
10.5 m
|
11 m
|
11 m
|
||||||
|
Wind level
|
≦5
|
|
|
|
|
|
|
||||||
|
Units for 40GP
|
3 units
|
3 units
|
3 units
|
3 units
|
2 units
|
1 units
|
1 units
|
||||||
