Quick Details
-
Table Travel (Y) (mm):
-
360mm
-
Spindle Taper:
-
BT40-120
-
Dimension(L*W*H):
-
1900x1700x2100mm
-
Weight (T):
-
3 T
-
Table Travel (Z) (mm):
-
450mm
-
Positioning Accuracy (mm):
-
±0.0075mm
-
Repeatability (X/Y/Z) (mm):
-
±0.005mm
-
Range of Spindle Speed(r.p.m):
-
0 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5.5kw
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
24/24/20(48/48/36)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SANJI
-
Voltage:
-
220V/380V
-
Marketing Type:
-
Hot Product 2022
-
Keywords:
-
Vmc Machine Center
-
Machine Type:
-
CNC Vertical Machine Centers
-
Product name:
-
CNC Machining Center
-
After-sales Service Provided:
-
After-sales Service
-
Application:
-
Metal Machining
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Features:
-
High Precision Economical
-
Function:
-
Drilling Tapping Milling Turning
-
Color:
-
Customers' Request
Quick Details
-
Table Size (mm):
-
800x300mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
600mm
-
Table Travel (Y) (mm):
-
360mm
-
Spindle Taper:
-
BT40-120
-
Dimension(L*W*H):
-
1900x1700x2100mm
-
Weight (T):
-
3 T
-
Table Travel (Z) (mm):
-
450mm
-
Positioning Accuracy (mm):
-
±0.0075mm
-
Repeatability (X/Y/Z) (mm):
-
±0.005mm
-
Range of Spindle Speed(r.p.m):
-
0 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5.5kw
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
24/24/20(48/48/36)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SANJI
-
Voltage:
-
220V/380V
-
Marketing Type:
-
Hot Product 2022
-
Keywords:
-
Vmc Machine Center
-
Machine Type:
-
CNC Vertical Machine Centers
-
Product name:
-
CNC Machining Center
-
After-sales Service Provided:
-
After-sales Service
-
Application:
-
Metal Machining
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Features:
-
High Precision Economical
-
Function:
-
Drilling Tapping Milling Turning
-
Color:
-
Customers' Request
|
Specifications
|
Units
|

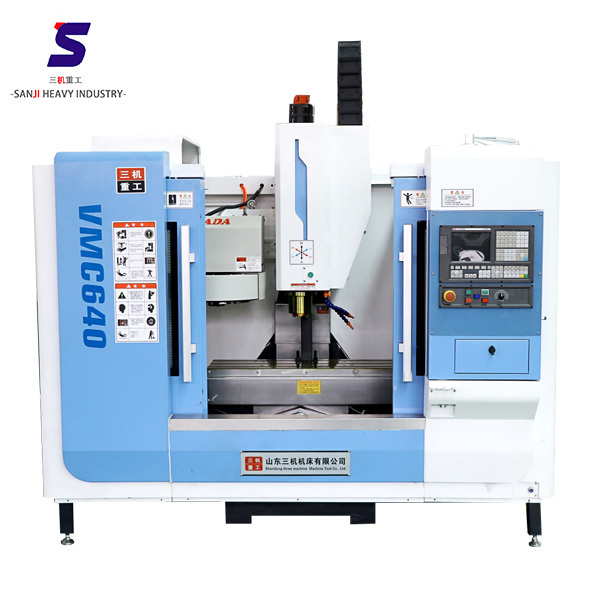

VMC640
|
|
Table size
|
mm
|
800x300
|
|
X axis travel
|
mm
|
600
|
|
Y axis travel
|
mm
|
360
|
|
Z axis travel
|
mm
|
450
|
|
Max. worktable load
|
kg
|
300
|
|
T-slot(number-width-pitch)
|
|
3-16x80
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
5.5
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20 (Optional:48/48/36 )
|
|
Cutting feed speed
|
mm/min
|
1-10000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
410
|
|
Distance between spindle nose and worktable surface
|
mm
|
100-550
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
16 Armless/(Optional: Arm 24 )
|
|
Max. tool diameter
|
mm
|
φ90
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
3000
|
|
Overall dimension
|
mm
|
1900x1700x2100
|
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
Details Display
Certifications
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
