* PLC intelligent control system can realize automatic operation of feeding, grate operation, fan start-up and stop, water feeding and slag discharging.
* Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
* The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
customized as per steam boiler
-
Product name:
-
Dzl Biomass Boiler Coal Biomass Wood Fired Steam Generator For Pellet
-
Power:
-
0.7mw/h~7mw/h
-
Working Pressure:
-
1.0/1.25 MPa
-
Outlet Water Temp.:
-
95/115 ℃
-
Design fuel:
-
wood, straw, rice husk, biomass pellet etc
-
Material:
-
Boiler Steel
-
Thermal Efficiency:
-
≥ 83%
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO, CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUJI
-
Dimension(L*W*H):
-
customized as steam boiler
-
Weight:
-
customized as per steam boiler
-
Product name:
-
Dzl Biomass Boiler Coal Biomass Wood Fired Steam Generator For Pellet
-
Power:
-
0.7mw/h~7mw/h
-
Working Pressure:
-
1.0/1.25 MPa
-
Outlet Water Temp.:
-
95/115 ℃
-
Design fuel:
-
wood, straw, rice husk, biomass pellet etc
-
Material:
-
Boiler Steel
-
Thermal Efficiency:
-
≥ 83%
-
After Warranty Service:
-
Online support
-
Certification:
-
ISO, CE
Product Overview

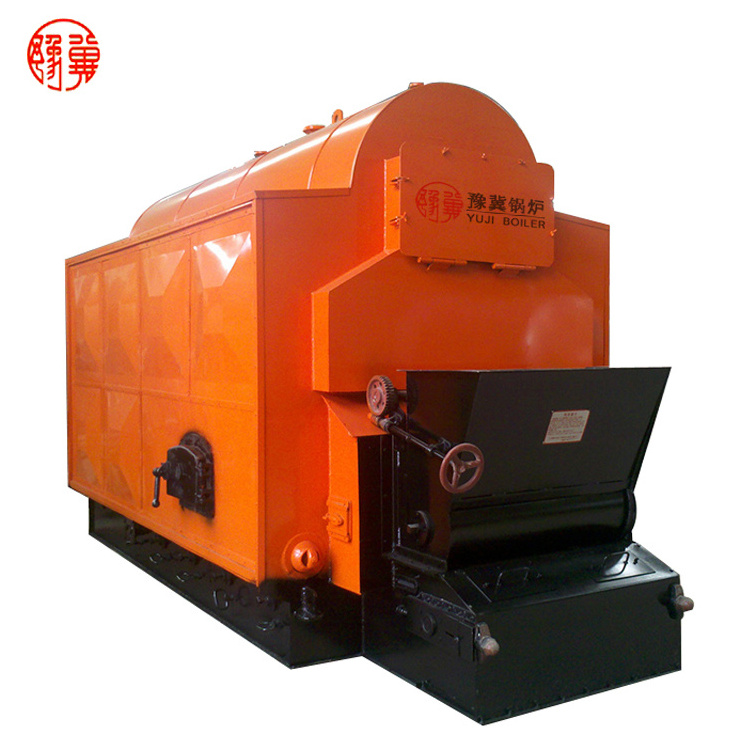

DZL Chain Fired Boiler
DZL series chain grate coal fired steam boiler is designed with single drum boiler with fire tube and water pipe. It has fast heat conduction and steam pressure rise quickly. It can adapt to various kinds of coal with compact structure and high thermal efficiency. This series of boilers adopt the latest science and technology such as arched tube sheet and spiral corrugated smoke pipe, which effectively improves the overall efficiency of the boiler, and prevents the occurrence of grate coking, tube sheet leakage and other failures.
Steam output:
* Steam volume: 1t / h-25t / h
* Steam pressure: 0.7mpa-2.5mpa (optional as required)
* Steam temperature: 0 ℃ - 226 ℃
* Fuel: coal, anthracite, bituminous coal, lignite, etc.
* Steam pressure: 0.7mpa-2.5mpa (optional as required)
* Steam temperature: 0 ℃ - 226 ℃
* Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:
* Rated thermal power: 0.7~7Mw
* Work Pressure: 0.7~1.25Mpa
* Rated outlet temperature: 95~115°C
* Work Pressure: 0.7~1.25Mpa
* Rated outlet temperature: 95~115°C
PS:
Customizable according to the fuel, steam quantity and steam pressure
FEATURES AT A GLANCE
1. Water and fire pipes ensure high thermal efficiency
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short
installation cycle, convenient hoisting and transportation
2. Membrane wall water pipe arrangement increases heat absorption area
3. The energy saver can fully absorb the waste heat and save the cost
4. With over pressure, over temperature, water shortage, leakage, motor overload and other interlocking protection functions
5. The whole heat treatment process can eliminate the steel stress and ensure safe operation6. Assembly structure, short
installation cycle, convenient hoisting and transportation
Structure and parameters:
PRODUCT SPECIFICATIONS
|
DZL Steam Boiler
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Rated evaporation(t/h)
|
Rated pressure(MPa)
|
Steam temperature(℃)
|
thermal efficiency (%)
|
Fuel consumption (kg/h)
|
Size L×W×H (m)
|
Weight(t)
|
|||||||
|
DZL1-1.0/1.25-AII
|
1
|
1.0/1.25
|
193/204
|
≥83
|
176.6
|
5.1×2.2×2.9
|
15
|
|||||||
|
DZL2-1.0/1.25-AII
|
2
|
|
|
|
352.3
|
6.14×2.6×3.3
|
18
|
|||||||
|
DZL3-1.25/1.6-AII
|
3
|
1.25/1.6
|
|
|
522
|
6.33×2.7×3.3
|
24
|
|||||||
|
DZL4-1.25/1.6-AII
|
4
|
|
|
|
571
|
6.88×2.7×3.3
|
27
|
|||||||
|
DZL6-1.25/1.6-AII
|
6
|
|
|
|
1044
|
7.29×3.2×3.7
|
31
|
|||||||
|
DZL8-1.25/1.6-AII
|
8
|
|
|
|
1396.5
|
7.8×3.4×3.7
|
33
|
|||||||
|
DZL10-1.25/1.6-AII
|
10
|
|
|
|
1743.3
|
8.5×3.4×3.7
|
41
|
|||||||
|
DZL Hot Water Boiler
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Rated power(mw)
|
Rated pressure(MPa)
|
|
thermal efficiency (%)
|
Fuel consumption (kg/h)
|
Size L×W×H (m)
|
Weight(t)
|
|||||||
|
DZL0.7-0.7/95/70
|
0.7
|
0.7/1.0
|
|
≥83
|
174.3
|
5.1×2.2×2.9
|
15
|
|||||||
|
DZL1.4-1.0/95/70
|
1.4
|
1
|
|
|
348.6
|
6.14×2.6×3.3
|
18
|
|||||||
|
DZL2.1-0.7/95/70
|
2.1
|
|
|
|
517
|
6.33×2.7×3.3
|
24
|
|||||||
|
DZL2.8-0.7/95/70
|
2.8
|
|
|
|
687.2
|
6.88×2.7×3.3
|
27
|
|||||||
|
DZL4.2-0.7/95/70
|
4.2
|
1.0/1.25
|
|
|
1024
|
7.29×3.2×3.7
|
31
|
|||||||
|
DZL5.6-1.25/95/70
|
5.6
|
|
|
|
1374.3
|
7.8×3.4×3.7
|
33
|
|||||||
|
DZL7-1.25/95/70
|
7
|
|
|
|
1708
|
8.5×3.4×3.7
|
39
|
|||||||
