Quick Details
-
Weight:
-
60Kg, 22.5 kg
-
Dimension(L*W*H):
-
60*60*60
-
Power:
-
3Kw
-
Product Name:
-
Low cost robot arm EC66 China robot and Collaborative robot arm
-
Number of axes:
-
6
-
Max payload:
-
6 kg
-
Maximum reach:
-
905 mm
-
Pose repeatability(ISO 9283):
-
±0.02mm
-
Teach pendant:
-
ERP300/Android or iOS devices
-
Maximum speed:
-
2.8 m/S
-
Material:
-
Aluminum alloy
-
Protection rating:
-
IP54
-
Certification:
-
CE/ROHS
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Elite
-
Weight:
-
60Kg, 22.5 kg
-
Dimension(L*W*H):
-
60*60*60
-
Power:
-
3Kw
-
Product Name:
-
Low cost robot arm EC66 China robot and Collaborative robot arm
-
Number of axes:
-
6
-
Max payload:
-
6 kg
-
Maximum reach:
-
905 mm
-
Pose repeatability(ISO 9283):
-
±0.02mm
-
Teach pendant:
-
ERP300/Android or iOS devices
-
Maximum speed:
-
2.8 m/S
-
Material:
-
Aluminum alloy
-
Protection rating:
-
IP54
-
Certification:
-
CE/ROHS

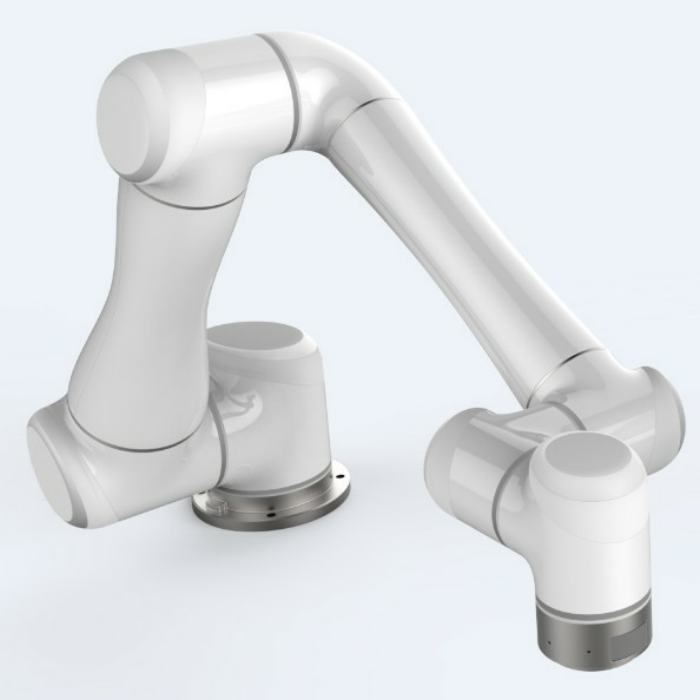

Low cost robot arm EC66 China robot and Collaborative robot arm
| Product name | Low cost robot arm EC66 China robot and Collaborative robot arm | |
| Application | Low cost robot arm; China robot ;Collaborative robot arm | |
| Self weight | 22.5Kg | |
| Payload | 6 Kg | |
| Degree of freedom | 6 | |
| Working radius | 905mm | |
| Joint angle of rotation | ± 135° | |
| Maximum speed | 2.8 m/S | |
| Pose repeatability | ± 0.02mm | |
| Voltage | 48 V | |
| Power | about 300W | |
| Material | Aluminum alloy | |
| Working temperature | 0-50°C | |
| Working environment humidity | 5% ~ 95% | |
| Protection rating | IP54 | |
| I/O port | Digital input | 16 |
| Digital output | 16 | |
| Analog input | 2 | |
| Analog output | 4 | |
| controller | Size | 450x135x350mm |
| Weight | 15kg | |
| power | AC220V | |
| Protection rating | IP40 | |
| Teach pendant | ERP300/Android or iOS devices | |
