Quick Details
-
Model Number:
-
481-4 1sn- 1/4
-
Product name:
-
WIRE BRAID HYDRAVLIC RUBBER HOSE
-
Color:
-
BLACK
-
Size:
-
1/4"
-
Material:
-
Synthetic Rubber
-
Working pressure:
-
3250psi
-
Standard:
-
ISO 1436-1 Type 1SN/SAE 100R1 Type AT/EN 853 Type 1SN
-
applicable medium:
-
Hydraulic oil, water glycol, lubricating oil, air and water
-
Reinforcement:
-
A layer of wire weave
-
Working temperature:
-
-40℃~100℃
-
Length:
-
130m
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Parker
-
Model Number:
-
481-4 1sn- 1/4
-
Product name:
-
WIRE BRAID HYDRAVLIC RUBBER HOSE
-
Color:
-
BLACK
-
Size:
-
1/4"
-
Material:
-
Synthetic Rubber
-
Working pressure:
-
3250psi
-
Standard:
-
ISO 1436-1 Type 1SN/SAE 100R1 Type AT/EN 853 Type 1SN
-
applicable medium:
-
Hydraulic oil, water glycol, lubricating oil, air and water
-
Reinforcement:
-
A layer of wire weave
-
Working temperature:
-
-40℃~100℃
-
Length:
-
130m
Why Choose Us
* Complete specifications and standards
* A variety of colors are available
* Text and logo can be customized
* Strict quality control, products are tested before shipping
* Hose can be customized
* Low factory direct prices
* Good service life
* Low bending radius increases working pressure
Product Description
|
Product Detail
|
|
|
|
|
||||
|
Name
|
Wire braided hydraulic hose
|
|
|
|
||||
|
Size
|
1/4"-2"
|
|
|
|
||||
|
Reinforcement
|
A layer of wire braid
|
|
|
|
||||
|
Temperature Range
|
-40℃ ~ +100℃（-40℉~ +212℉）
|
|
|
|
||||
|
Application
|
Used in industry , machine tool，Traffic and transportation and agricultural applications using petroleum or water based hydraulic
fluids. |
|
|
|
||||
|
Working pressure
|
3625~575PSI
|
|
|
|
||||
|
Printing Word
|
We can print LOGO or as your requirement.
|
|
|
|
||||
|
Length
|
Customizable
|
|
|
|
||||
|
Packaging Detail
|
By poly stripes or as your request
|
|
|
|
||||
|
Delivery
|
About 30 days for a 20' container
|
|
|
|
||||
|
Product Specification
|
|
|
|
|
|
|
||||||
|
EN853 1SN | SAE100R1
|
|
|
|
|
|
|
||||||
|
Part No.
|
SIZE
|
ID
|
OD
|
WP
|
BP
|
WEIGHT
|
||||||
|
|
inch
|
mm
|
mm
|
bar
|
bar
|
g/m
|
||||||
|
3/16-1
|
3/16"
|
5.1
|
12.5
|
250
|
1000
|
200
|
||||||
|
1/4-1
|
1/4"
|
6.3
|
13.4
|
225
|
900
|
230
|
||||||
|
5/16-1
|
5/16"
|
7.9
|
15
|
215
|
850
|
280
|
||||||
|
3/8-1
|
3/8"
|
9.5
|
17.4
|
180
|
720
|
330
|
||||||
|
1/2-1
|
1/2"
|
12.7
|
20.7
|
160
|
640
|
400
|
||||||
|
5/8-1
|
5/8"
|
15.9
|
23.9
|
130
|
520
|
480
|
||||||
|
3/4-1
|
3/4"
|
19.1
|
27.8
|
105
|
420
|
620
|
||||||
|
1-1
|
1"
|
25.4
|
35.8
|
88
|
350
|
910
|
||||||
|
1 1/4-1
|
1 1/4"
|
31.8
|
44
|
63
|
250
|
118
|
||||||
|
1 1/2-1
|
1 1/2"
|
38.1
|
50.8
|
50
|
200
|
142
|
||||||
|
2-1
|
2"
|
50.8
|
64.7
|
40
|
160
|
190
|
||||||
|
EN853 2SN | SAE100R2
|
|
|
|
|
|
|
||||||
|
Part No.
|
SIZE
|
ID
|
OD
|
WP
|
BP
|
WEIGHT
|
||||||
|
|
inch
|
mm
|
mm
|
bar
|
bar
|
g/m
|
||||||
|
3/16-2
|
3/16"
|
5.1
|
14.1
|
415
|
1660
|
320
|
||||||
|
1/4-2
|
1/4"
|
6.3
|
15.7
|
400
|
1600
|
350
|
||||||
|
5/16-2
|
5/16"
|
7.9
|
17.3
|
350
|
1400
|
410
|
||||||
|
3/8-2
|
3/8"
|
9.5
|
19.7
|
330
|
1320
|
500
|
||||||
|
1/2-2
|
1/2"
|
12.7
|
23
|
275
|
1100
|
620
|
||||||
|
5/8-2
|
5/8"
|
15.9
|
26.2
|
250
|
1000
|
720
|
||||||
|
3/4-2
|
3/4"
|
19.1
|
30.1
|
215
|
850
|
920
|
||||||
|
1-2
|
1"
|
25.4
|
38.9
|
165
|
650
|
130
|
||||||
|
1 1/4-2
|
1 1/4"
|
31.8
|
49.5
|
125
|
500
|
180
|
||||||
|
1 1/2-2
|
1 1/2"
|
38.1
|
55.9
|
90
|
360
|
220
|
||||||
|
2-2
|
2"
|
50.8
|
68.6
|
80
|
320
|
300
|
||||||
|
EN857 SC | SAE J1942 | ISO 11237 SC
|
|
|
|
|
|
|
||||||
|
Part No.
|
SIZE
|
ID
|
OD
|
WP
|
BP
|
WEIGHT
|
||||||
|
|
inch
|
mm
|
mm
|
bar
|
bar
|
g/m
|
||||||
|
1/4-1
|
1/4"
|
6.3
|
13.4
|
225
|
900
|
120
|
||||||
|
5/16-1
|
5/16"
|
7.9
|
14.5
|
215
|
850
|
140
|
||||||
|
3/8-1
|
3/8"
|
9.5
|
16.9
|
180
|
720
|
250
|
||||||
|
1/2-1
|
1/2"
|
12.7
|
20.4
|
160
|
640
|
220
|
||||||
|
5/8-1
|
5/8"
|
15.9
|
23
|
130
|
520
|
270
|
||||||
|
3/4-1
|
3/4"
|
19.1
|
26.7
|
105
|
420
|
350
|
||||||
|
1-1
|
1"
|
25.4
|
34.9
|
88
|
350
|
520
|
||||||
|

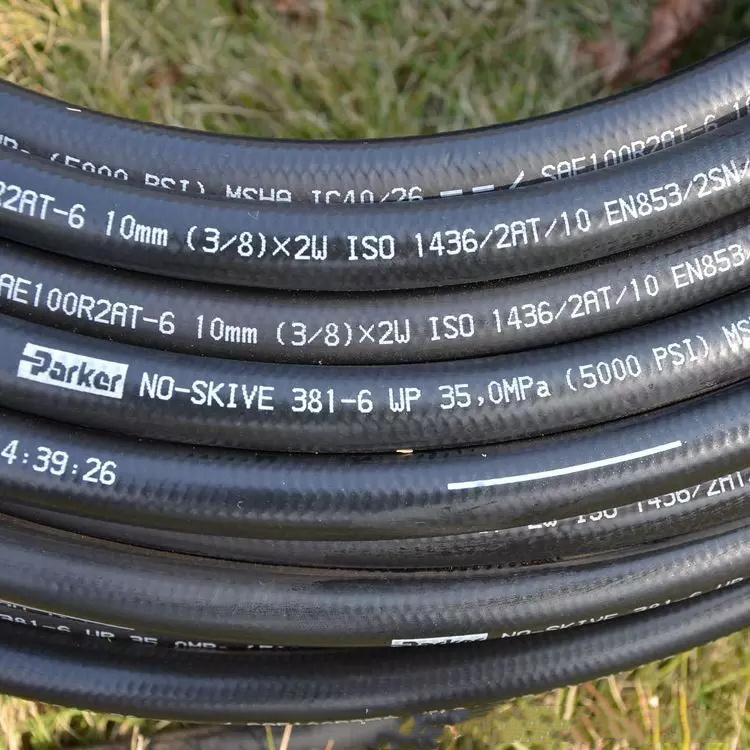

Product Photo
|
|
|
|
|
||||
Work Shop
|
Production Line
|
|
|
|
|
||||
Joint-stock district
Braided zone
Wrapping area
Vulcanization zone
Disassembly zone
Pressure test area
Winding region
Hard core braid area
Cotton knitting area
Packeting area
|
R&D Center(research and development center)
|
|
|
|
|
||||
|
Warehouse Display
|
|
|
|
|
||||
