Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
0 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380v
-
Weight (T):
-
2.2 T
-
Functions:
-
Broing
-
Product name:
-
Cylinder Boring Machine Motorcycle
-
Color:
-
Blue
-
Keyword:
-
Boring Bar Machine
-
Application:
-
Construction Machine Repairing
-
Precision:
-
High Precision Floor
-
After-sales Service Provided:
-
Online Support, Online support, Video technical support
-
Name:
-
Portable Line Boring Machine
-
Product type:
-
Boring Machine Small Engine
-
Certification:
-
CE
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Range of Spindle Speed(r.p.m):
-
0 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELLON
-
Voltage:
-
380v
-
Weight (T):
-
2.2 T
-
Functions:
-
Broing
-
Product name:
-
Cylinder Boring Machine Motorcycle
-
Color:
-
Blue
-
Keyword:
-
Boring Bar Machine
-
Application:
-
Construction Machine Repairing
-
Precision:
-
High Precision Floor
-
After-sales Service Provided:
-
Online Support, Online support, Video technical support
-
Name:
-
Portable Line Boring Machine
-
Product type:
-
Boring Machine Small Engine
-
Certification:
-
CE
Features:

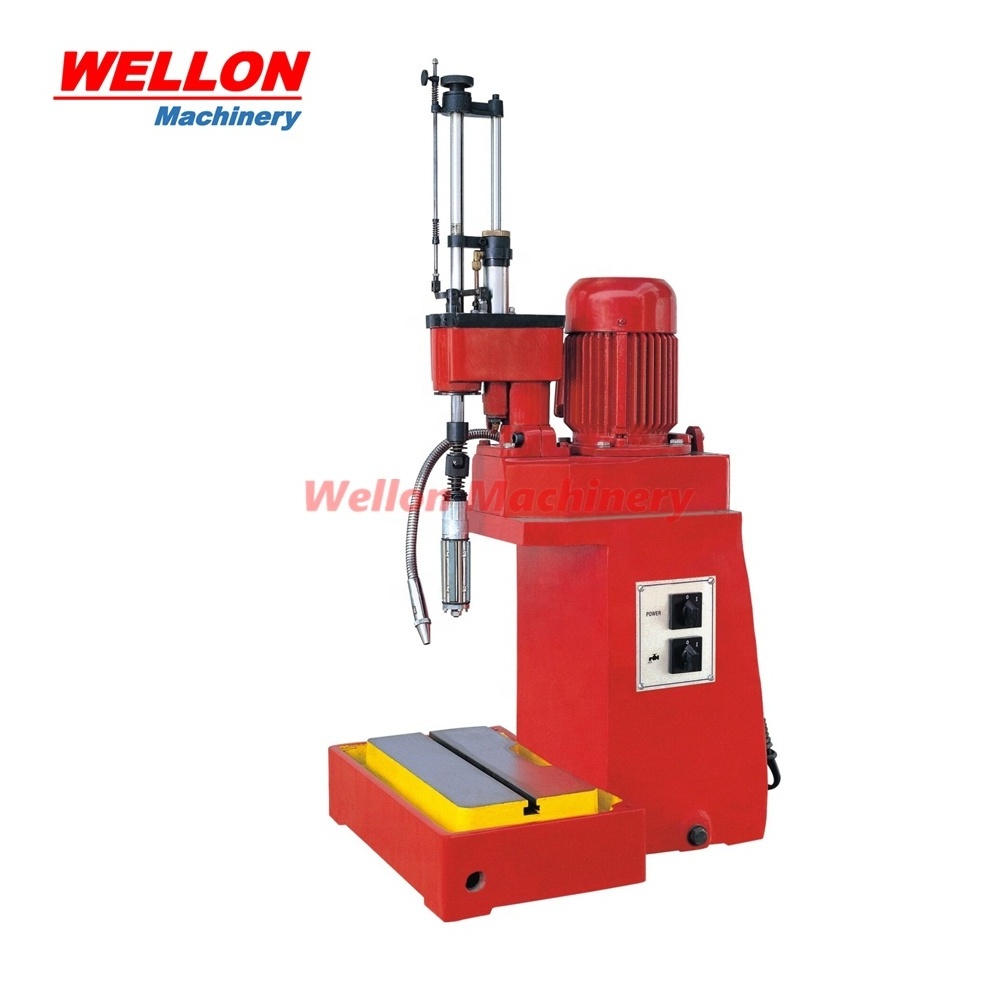

M 807A Cylinder honing Machine is mainly used for maintaining the cylinder of motorcycle. etc.
Place the cylinder to be bored under the base plate or on the plane of the base of the machine after the center of the cylinder hole is determined, and the cylinder is fixed, maintenance of honing can be carried out .The cylinder of the motorcycles with diameters φ39~ 80 mm and depths within 1 8 0 mm can all be honed , If the suitable fixtures are fitted, other cylinder bodies with corresponding requirements can also be honed .
Technical Parameter :
|
MODEL |
M807A |
|
|
DIAMETER OF HONING HOLE |
Φ39- 80 mm |
|
|
MAX. HONING DEPTH |
1 8 0mm |
|
|
STEPS OF VARIABLE SPEED OF BORING/HONING SPINDLE |
1 step |
|
|
HONING |
ROTATIONAL SPEED OF HONING SPINDLE |
300r/min |
|
HONING SPINDLE FEEDING SPEED |
6.5m/min |
|
|
ELECTRIC MOTOR |
POWER |
0.75kw |
|
ROTATIONAL SPEED |
1400r/min |
|
|
VOLTAGE |
220/380v |
|
|
FREQUENCY |
50Hz |
|
|
MACHINE N.W./G.W. |
17 0kg/2 15 kg |
|
|
OVERALL DIMENSIONS |
55 0x480x1 08 0mm |
|
|
PACKING |
695 x 54 0x1 190 mm |
|
