- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
50012002B
-
Brand Name:
-
WEILING
-
Safety Relief Valve:
-
Automatic
-
Body Material:
-
Brass
-
Surface Treatment:
-
Nickel
-
Connection:
-
BSP Thread
-
Working Pressure:
-
6 Bar to 10.5Bar
-
Valve Type:
-
with Free Handle
-
Precise Pressure Calibration:
-
within +/-0.5bar tolearance
-
Certification:
-
Reach
Quick Details
-
Port Size:
-
1/2"-BSP
-
Warranty:
-
2 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
50012002B
-
Brand Name:
-
WEILING
-
Safety Relief Valve:
-
Automatic
-
Body Material:
-
Brass
-
Surface Treatment:
-
Nickel
-
Connection:
-
BSP Thread
-
Working Pressure:
-
6 Bar to 10.5Bar
-
Valve Type:
-
with Free Handle
-
Precise Pressure Calibration:
-
within +/-0.5bar tolearance
-
Certification:
-
Reach
Product Description

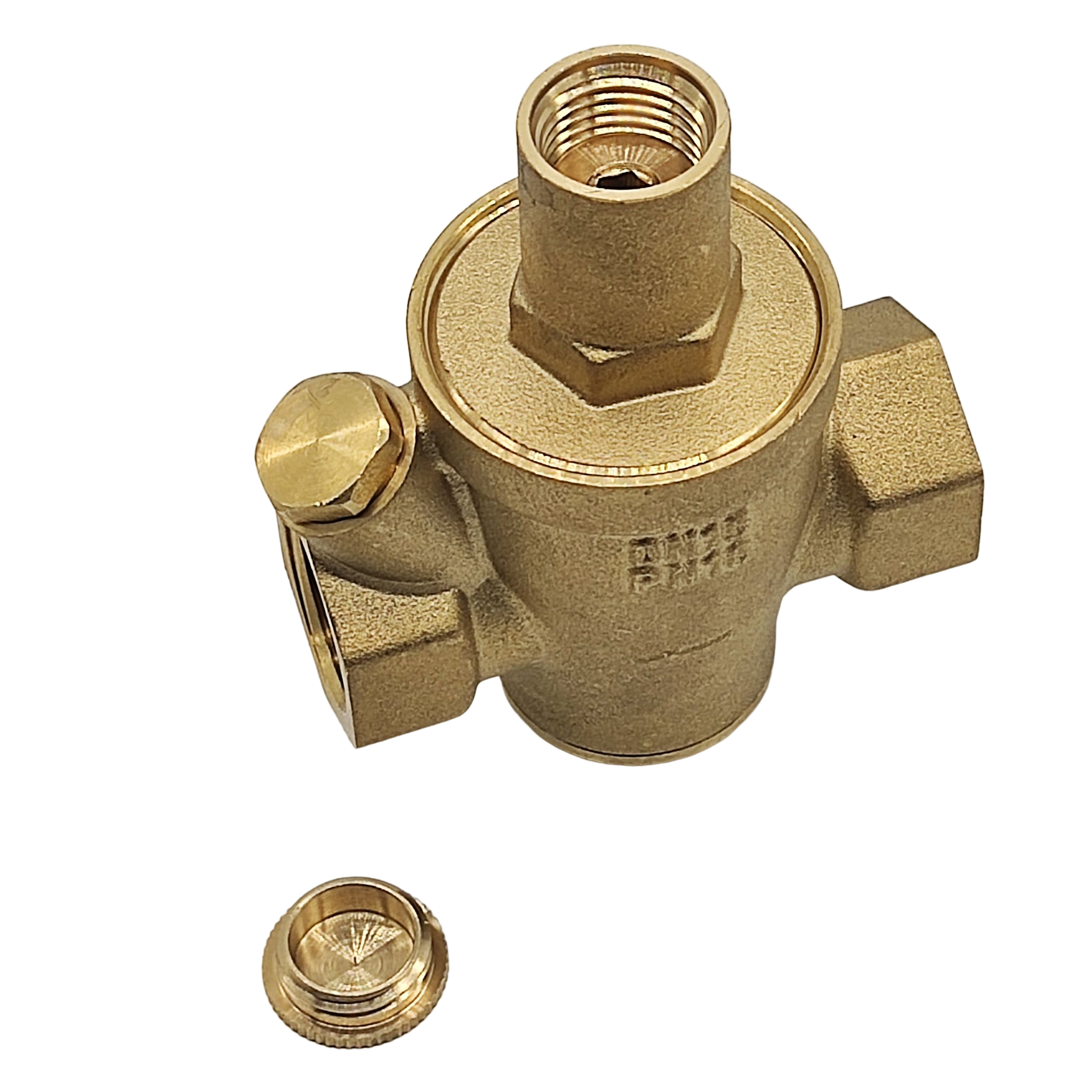

Weiling Pressure Reducing Valve Function:
The pressure reducing valve is a special device to get the a setting reduced outlet pressure. By adjusting the nut, to reduce the inlet high pressure to a fixed level. It is widely used in high buildings, municipal water supply networks in which with high pressure, mines and some others, to guarantee all the water consuming at different position in the water supply system can obtain the most suitable pressure and flow volume.
Features:
The pressure reducing valve is a special device to get the a setting reduced outlet pressure. By adjusting the nut, to reduce the inlet high pressure to a fixed level. It is widely used in high buildings, municipal water supply networks in which with high pressure, mines and some others, to guarantee all the water consuming at different position in the water supply system can obtain the most suitable pressure and flow volume.
Features:
1. Nominal pressure: 1.6MPa;
2. Working temperate: 0-80℃;
3. Working medium: water, gas, oil(non-corrosive);
4. Thread standard: ISO228-1; (If NPT thread needed, can be customized also.)
5. Setting outlet pressure: 0.3MPa. When the inlet pressure is 1.0MPa or above, the outlet pressure is 0.3MPa(+/-0.1MPa); when the input is less than 1.0Mpa, the output pressure reduce accordingly.
Specification:
|
Size
|
|
from 1/2" to 3"
|
|
|
|||
|
Material
|
|
Refined Brass (EN12165)
|
|
|
|||
|
Nominal Pressure
|
|
1.6MPa
|
|
|
|||
|
Surface
|
|
Brass, Nickel or Chrome Can be Optional
|
|
|
|||
|
Thread
|
|
ISO 228-1(Other Thread can be customized)
|
|
|
|||
Packing & Delivery:
1. Each Piece is calibrated and tested before packing(100% test);
2. Every 10 pieces packed inside a strong neutral inner box, to have best protection;
3. Every 10 or 20 inner box inside a strong neutral carton, and labeled;
4. Each carton striped and palletized before transportation;
5. LCL or FCL shipment are both acceptable & workable for us;
3. Every 10 or 20 inner box inside a strong neutral carton, and labeled;
4. Each carton striped and palletized before transportation;
5. LCL or FCL shipment are both acceptable & workable for us;
6. Normally, delivery time will be varied from 35 days to 50 days when PI confirmed & payment done.
