Quick Details
-
Rated Voltage:
-
3.6-5V
-
Frequency:
-
N/A
-
Voltage Range:
-
N/A
-
Voltage - Rated:
-
N/A
-
Audio Format Support:
-
MP3
-
Function:
-
Voice recorder, E-Book Reading, FM Radio, Games
-
Operating Temperature:
-
40~+85, -40°C ~ 85°C
-
Supply Voltage:
-
DC3.6-5V
-
Support:
-
TF card within 32GB
-
Audio output power:
-
3W
-
Components:
-
PCB Board
-
Shipping:
-
Buyer's choice
-
Best price:
-
Please contact us
-
D/C:
-
N/A
-
Packaging:
-
N/A
-
Current - Supply:
-
N/A
-
Size / Dimension:
-
2.5*2mm
-
Height - Seated (Max):
-
N/A
-
Impedance:
-
N/A
-
Frequency Range:
-
N/A
-
Height (Max):
-
N/A
-
Frequency - Self Resonant:
-
N/A
-
Power - Rated:
-
Not Applicable
-
Cross Reference:
-
Not Applicable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JR
-
Model Number:
-

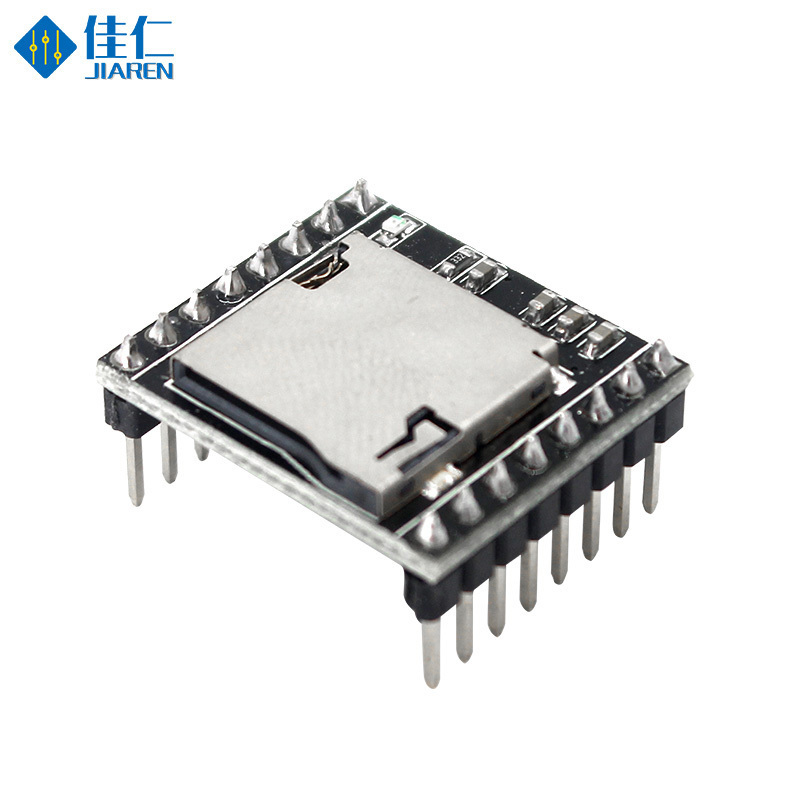

JQ8900-TF-1, Mini MP3 Player Module
-
Rated Voltage:
-
3.6-5V
-
Frequency:
-
N/A
-
Voltage Range:
-
N/A
-
Voltage - Rated:
-
N/A
-
Audio Format Support:
-
MP3
-
Function:
-
Voice recorder, E-Book Reading, FM Radio, Games
-
Operating Temperature:
-
40~+85, -40°C ~ 85°C
-
Supply Voltage:
-
DC3.6-5V
-
Support:
-
TF card within 32GB
-
Audio output power:
-
3W
-
Components:
-
PCB Board
-
Shipping:
-
Buyer's choice
-
Best price:
-
Please contact us
-
D/C:
-
N/A
-
Packaging:
-
N/A
-
Current - Supply:
-
N/A
-
Size / Dimension:
-
2.5*2mm
-
Height - Seated (Max):
-
N/A
-
Impedance:
-
N/A
-
Frequency Range:
-
N/A
-
Height (Max):
-
N/A
-
Frequency - Self Resonant:
-
N/A
-
Power - Rated:
-
Not Applicable
-
Cross Reference:
-
Not Applicable
A. Module characteristic
1.7 IO Ports Trigger Control
2.Single-chip serial port control
3.Come with 4M memory, Sound can be copy with USB
4.Inner 3W amplified
Full set of development materials, providing technical support~~~
It w idely used:
game basketball machine sound effect voice broadcasting,
treadmill voice navigation,
massage chair voice operation guidelines,
equipment fault prompts,
equipment operation guidance voice,
vehicle safety voice warning,
public place voice prompts,
business hall warm voice prompts, etc.
Applied to the following locations
1, Car navigation voice broadcast;
2, Road transportation inspection and voice prompts of toll stations;
3 , the railway station, bus station security check voice prompts;
4 , Voice prompts for power, communication and financial business halls;
5 , The voice prompt is verified by the vehicle entrance and exit channels;
6 , Voice prompts for public security frontier inspection channels;
7 , Multi- way voice alarm or device operation guidance voice;
8 , electric sightseeing car safe driving voice notice;
9 , Automatic alarm of mechanical and electrical equipment failure;
10 , fire alarm prompts;
11 , automatic broadcast equipment, scheduled broadcast;
12 , treadmill voice navigation;
Hardware parameter
|
Name |
Parameter |
|
MP3 file format |
1, Support all bit rates 11172-3 and ISO13813-3 layer3 a udio decoding |
|
2, Supports sample rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48 |
|
|
3, Support these sound effects: Normal,Jazz,Classic,Pop,Rock |
|
|
USB port |
2.0 (standard) |
|
UART port |
Standard serial port, TTL level , Settable baud rate |
|
Input voltage |
DC3.3-5.2V (Recommended 5V power supply) ; IO level 3.3V |
|
Rated current |
Standby current: 500uA; working current: 10MA |
|
Size |
Standard SSOP24 package |
|
Work temperature |
-40 ℃ ~85 ℃ |
|
H umidity |
5%~95% |
Module pin description
(If you need detailed instructions, please contact us.)
JQ8900-TF Module Packaging Dimension Diagram
