Quick Details
-
Power:
-
3500
-
Dimension(L*W*H):
-
3800 x 1050 x 1300 mm
-
Weight (KG):
-
1300
-
Cutting Quantity:
-
2 tubes + 2tubes
-
Cutting Length:
-
≥50mm
-
Air Pressure:
-
0.5-0.7MPa
-
Tube Diameter:
-
4-20mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
bobo
-
Voltage:
-
380v
-
Power:
-
3500
-
Dimension(L*W*H):
-
3800 x 1050 x 1300 mm
-
Weight (KG):
-
1300
-
Cutting Quantity:
-
2 tubes + 2tubes
-
Cutting Length:
-
≥50mm
-
Air Pressure:
-
0.5-0.7MPa
-
Tube Diameter:
-
4-20mm
Summary

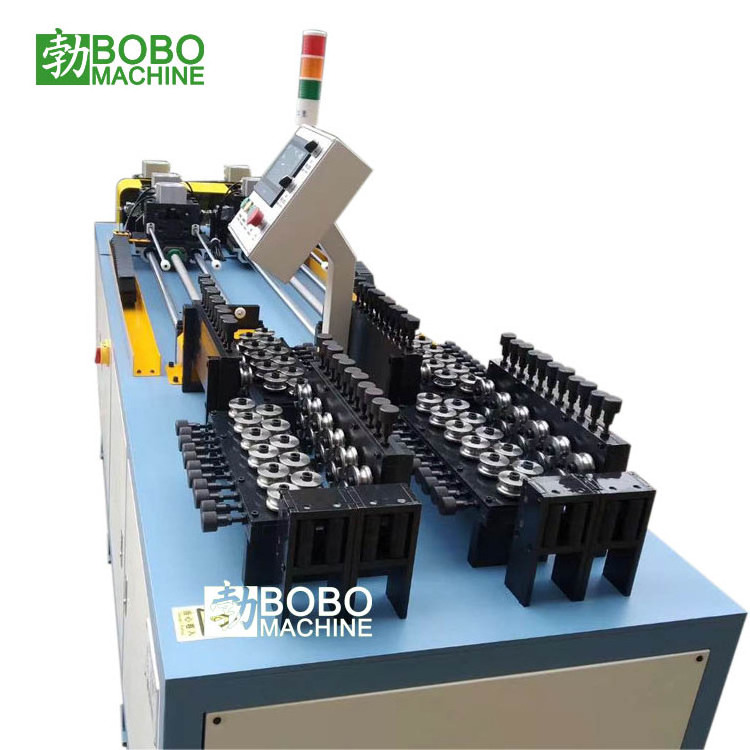

The multi-station tube straightening and cutting machine is driven by servo motor with PLC control system for high accuracy feeding and cutting process. The whole set machine include de-coiling, straightening and cut to length process, the cutting system can be chipless clean cutting and saw cutting as option. It is suitable for copper tubes and aluminum tubes, widely used for air conditioning, refrigeration, heat exchanger, automotive pipeline system.
|
|
Part
|
Brand
|
Remark
|
|
1
|
Main Frame
|
Home made
|
Welding
|
|
2
|
Painting
|
Home made
|
Powder Coating /
customized color |
|
3
|
Servo system
|
Mitsubishi
|
Feeding system
|
|
4
|
Screw rod
|
HIWIN
|
-
|
|
5
|
PLC
|
Mitsubishi
|
CE
|
|
6
|
HMI
|
KINCO
|
-
|
|
7
|
Contactor
|
Schneider
|
CE
|
|
8
|
Motor
|
Local brand
|
CE
|
|
Parameter
|
Data
|
|
Tube Material
|
Copper / Aluminum tubes in coil
|
|
Tube Diameter
|
4-20mm
|
|
Max. Feeding Length
|
1000mm
|
|
Feeding Speed
|
10 times/min
( when length=1000mm) |
|
Feeding tolerance
|
L≤1000mm≤0.3mm≥1000mm≤0.5mm
|
|
Cutting Length
|
≥50mm
|
|
Cutting Quantity
|
2 tubes + 2tubes
|
|
End diameter necking ratio
|
f≤20%
|
|
Tube out of roundness
|
≤3%
|
|
Motor Power
|
3.5KW
|
|
Air Pressure
|
0.5-0.7MPa
|
|
Electric System
|
380V, 50Hz, 3Phae (Customized)
|
|
Dimension
|
3800 x 1050 x 1300 mm
|
|
Weight
|
About 1600 KG
|
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
