The walking tractor produced in China adds 1 to 2 supporting wheels and installs seats to become a ride-on tractor; the tillage walking tractor is also called a wheelless walking tractor, which is characterized by no drive wheels, but is installed on the drive shaft Rotating the tillage part not only tills the soil, but also walks forward. The mechanical structure of a walking tractor is generally composed of a frame, a power unit, a transmission system, a walking device, a steering system, a brake, and a control mechanism. It mostly uses a horizontal single-cylinder diesel engine. The power of the engine is transmitted to the transmission system by a V-belt. Control the speed of power. It can also be equipped with traction agricultural implements or trailers for transportation.
- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
CHANGZHOU
-
Weight:
-
280 KG
-
Product name:
-
Agriculture Walking Tractor
-
Function:
-
Tractor with rotavator
-
Engine type:
-
Diesdel
-
Dimensions(mm):
-
2680*960*1100(mm)
-
Application:
-
Farm Garden Agriculture
-
Key Word:
-
2wd Mini Farm Tractor
-
Calibration power:
-
5.88-16.17(Kw
-
Tractor type:
-
Driving and traction type
-
Wheel base (mm):
-
680-1000mm
Quick Details
-
Brand Name:
-
yibiyuan
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2022
-
Engine Brand:
-
CHANGZHOU
-
Weight:
-
280 KG
-
Product name:
-
Agriculture Walking Tractor
-
Function:
-
Tractor with rotavator
-
Engine type:
-
Diesdel
-
Dimensions(mm):
-
2680*960*1100(mm)
-
Application:
-
Farm Garden Agriculture
-
Key Word:
-
2wd Mini Farm Tractor
-
Calibration power:
-
5.88-16.17(Kw
-
Tractor type:
-
Driving and traction type
-
Wheel base (mm):
-
680-1000mm
Products Description

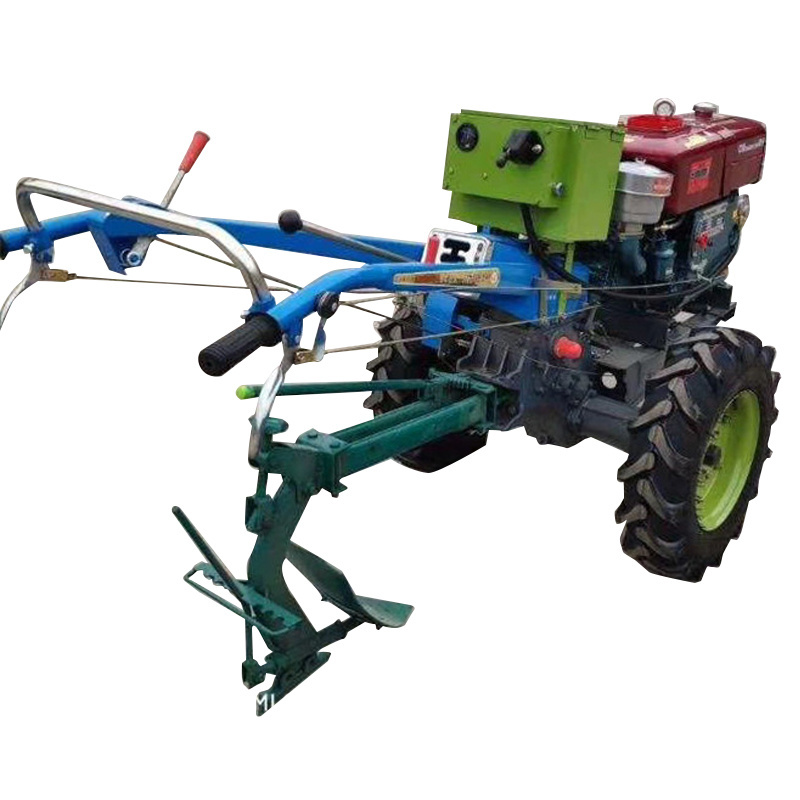

Mini walking tractor
Mini walking tractor are low price and easy for driving.
Farm walking tractors have high ground clearance ,wide wheel tread
and stable.
This two wheel tractors adopt multi working land,such as muddy land,mountaainous ,plain ,terrace field.
Walking
tractor can be matched with all kinds of implements.
|
Overall Dimensions(mm)
|
|
2680*960*1100（mm）
|
|
|
Wheel Tread(mm)
|
|
680-1000mm
|
|
|
Min. Ground Clearance(mm)
|
|
241
|
|
|
Min. use weight(kg)
|
|
465
|
|
|
Gear
|
|
Forward/reverse, 6/2
|
|
|
Tyre
|
|
6 - 14
|
|
|
Speed(km/h) |
Forward
|
2.58、3.95、6.17、7.71、11.81、18.49
|
|
|
|
Reverse
|
1.94、5.81
|
|
|
Engine |
Brand
|
Yibiyuan
|
|
|
|
Type
|
Diesel Single cylinder; horizontal; 4 stroke; water cooled
|
|
|
|
Rated Power(km/hp)
|
13.2/18HP
|
|
|
|
Rated Speed(r/min)
|
2200
|
|
|
|
Bore × Stroke (mm)
|
110×115
|
|
|
|
Specific Fuel Consumption(g/kw*h)
|
≤269.6
|
|
Potato Harvester
Tractor
Large quality chassis: three-slot clutch, king gear, heavy-duty gearbox, thickened handle, assembled diesel engine size: length 230cm, width 75-90cm, height 95cm, equipped with 4-hole 600-12 tires, most of them are used in ordinay dry fields. It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
Small boutique chassis: three-slot clutch, king gear, heavy-duty gearbox, thickened handle, assembled diesel engine size: length 185cm, width 75-90cm, height 75cm, equipped with 4-hole 500-10 tires, mostly dry farms, orchards , Vegetable plots and other places with limited space. It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
Square handle chassis: two-slot clutch, king gear, heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-90cm, height 95cm, with 4-hole 600-12 tires, most of them are used in ordinary dry fields. It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
High-clutch water and dry chassis: three-slot clutch, I-beam, heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-90cm, height 110cm, with 4 hole 600-12 tires, can be used in paddy and dry fields . It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
The 121 chassis is an upgraded version of the 101 square-handle chassis: three-slot clutch, I-beam, malleable steel heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-130cm, height 100cm, with malleable steel 5-hole 600-12 or 600- 14 tires, mostly used in dry fields. It is equipped with 8-18 horsepower diesel engine. (Note: The track can be customized, and the tire model can be customized). Transmission interface 10.8-17cm.
The 151 chassis: four-slot clutch, I-shaped gear, heavy gearbox, assembled diesel engine Dimensions: length 268cm, width 96cm, height 110cm, with big four-hole 600-12 tires, can be used in paddy and dry fields. It is equipped with 15-28 horsepower diesel engine. This model is Dachai's conversion chassis, and the gearbox interface is 14-14cm.
Small boutique chassis: three-slot clutch, king gear, heavy-duty gearbox, thickened handle, assembled diesel engine size: length 185cm, width 75-90cm, height 75cm, equipped with 4-hole 500-10 tires, mostly dry farms, orchards , Vegetable plots and other places with limited space. It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
Square handle chassis: two-slot clutch, king gear, heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-90cm, height 95cm, with 4-hole 600-12 tires, most of them are used in ordinary dry fields. It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
High-clutch water and dry chassis: three-slot clutch, I-beam, heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-90cm, height 110cm, with 4 hole 600-12 tires, can be used in paddy and dry fields . It is equipped with 8-13 horsepower diesel engine with 10.8-17cm gearbox interface.
The 121 chassis is an upgraded version of the 101 square-handle chassis: three-slot clutch, I-beam, malleable steel heavy-duty gearbox, assembled diesel engine size: length 230cm, width 75-130cm, height 100cm, with malleable steel 5-hole 600-12 or 600- 14 tires, mostly used in dry fields. It is equipped with 8-18 horsepower diesel engine. (Note: The track can be customized, and the tire model can be customized). Transmission interface 10.8-17cm.
The 151 chassis: four-slot clutch, I-shaped gear, heavy gearbox, assembled diesel engine Dimensions: length 268cm, width 96cm, height 110cm, with big four-hole 600-12 tires, can be used in paddy and dry fields. It is equipped with 15-28 horsepower diesel engine. This model is Dachai's conversion chassis, and the gearbox interface is 14-14cm.
