Quick Details
-
Screen size range:
-
7 inch To 22 inch
-
Surface Hardness:
-
More than 3H
-
Operating system:
-
Win 7/8/10, Linux and Android
-
Durability:
-
>35 million touches
-
Positional Accuracy:
-
<1.5%
-
Light Transmission:
-
83%
-
Operation Temperature:
-
-10 °C -- +70 °C
-
Stroage environment:
-
-40 °C -- +85 °C
-
Warranty:
-
1 Year
-
Working Voltage:
-
5.0V
Quick Details
-
Type:
-
Resistive
-
Brand Name:
-
Greatouch
-
Place of Origin:
-
Fujian, China
-
Screen size range:
-
7 inch To 22 inch
-
Surface Hardness:
-
More than 3H
-
Operating system:
-
Win 7/8/10, Linux and Android
-
Durability:
-
>35 million touches
-
Positional Accuracy:
-
<1.5%
-
Light Transmission:
-
83%
-
Operation Temperature:
-
-10 °C -- +70 °C
-
Stroage environment:
-
-40 °C -- +85 °C
-
Warranty:
-
1 Year
-
Working Voltage:
-
5.0V

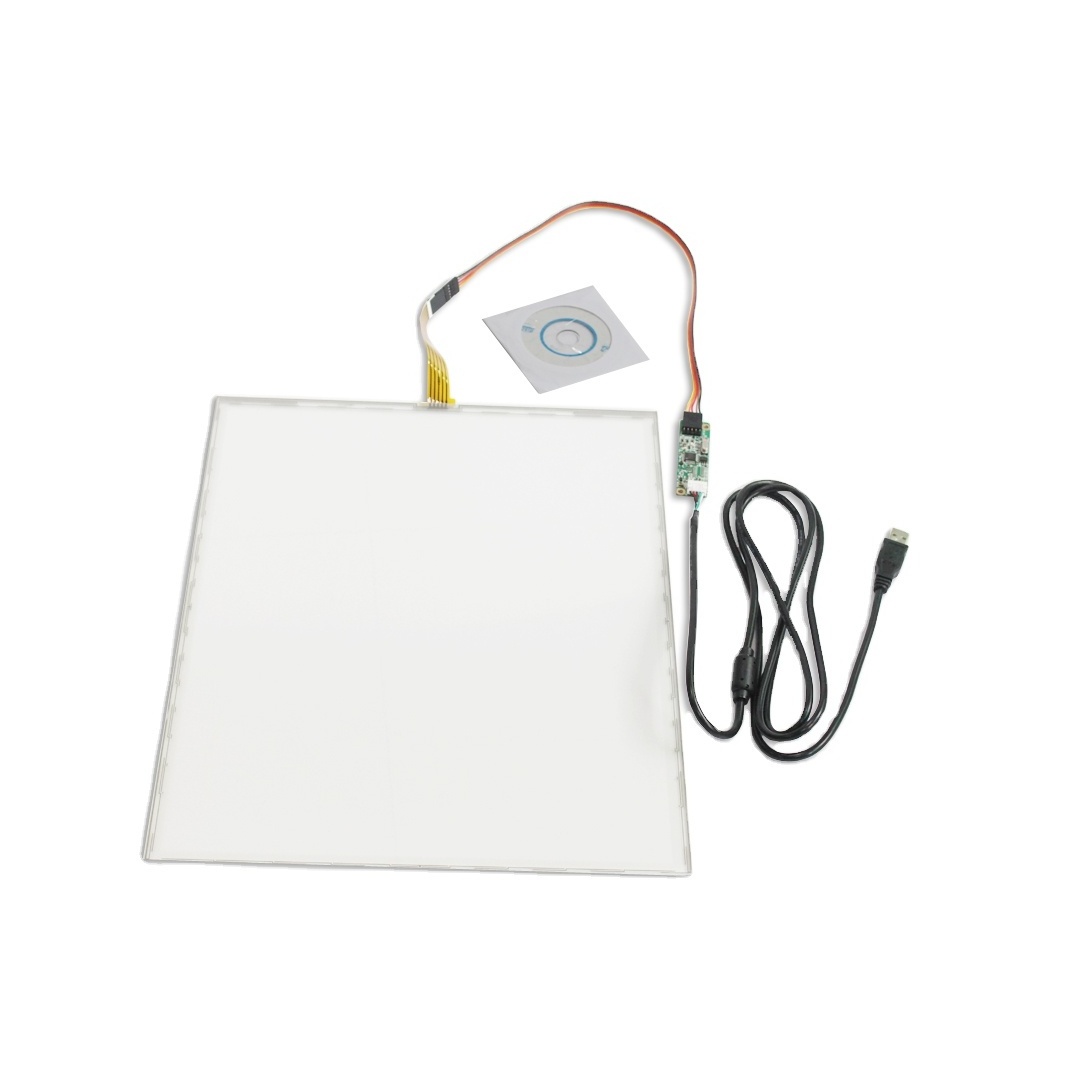

LCD Display 10.4 12.1 15 17 19 20 Inch 5 Wire Touch Panel For Resistive Industrial Monitor
Product Description
Products Advantage:
1. Flexible,very light weight,easy installation
2. 4096x4096 HD resolution,high precision, fast response
3. USB port, touch a correction, high stability, and never drift
4. Touch intensity, high sensitivity, touch-free drift
5. can withstand more than 10 million times touch Click
6. You can use a pen, finger, gloved hand, and many other media touch touch
7. can be adapted to harsh environments, such as splashing drops of water flow down, etc.
8. supports single touch point, one-time calibration
9. product through CE, FCC, RoHS certification, stable and reliable performance
2.Open touch TV/PC
3.Touch POS
4.LCD/LED touch monitor
5.Touch all-in-one pc
6. Touch Kiosk and other devices
2. 4096x4096 HD resolution,high precision, fast response
3. USB port, touch a correction, high stability, and never drift
4. Touch intensity, high sensitivity, touch-free drift
5. can withstand more than 10 million times touch Click
6. You can use a pen, finger, gloved hand, and many other media touch touch
7. can be adapted to harsh environments, such as splashing drops of water flow down, etc.
8. supports single touch point, one-time calibration
9. product through CE, FCC, RoHS certification, stable and reliable performance
Products Application:
1.Car computer and GPS2.Open touch TV/PC
3.Touch POS
4.LCD/LED touch monitor
5.Touch all-in-one pc
6. Touch Kiosk and other devices
Specification:
| General Size | 7 inch To 22 inch | Fit in with | Panel display device |
| Input Method |
Finger or gloved hand
|
Supply voltage | DC5V |
| Durability | >35 million touches | Positional Accuracy | <1.5% |
| Light Transmission | 83% | Clear surface | <3% |
| Antiglare Surface | <4% | Anti-Newton | <10% |
| Active Force | Stylus or Finger or Similar <45g~110g | Circuit Resistance | X:20~250Ω, Y:20~250Ω (See Figure 1) |
| Linearity | X<1.5%, Y<1.5% | Response | <15ms |
| Insulation | >20MΩ/25V(DC) | Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 | Operation Temperature | -10°C ~ +70°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing | Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing | Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs | Thermal Cycle | -40°C ~70°C [60 min./cycle] *10 cycles |
| Operation System | Win 7/8/10/ XP / 2000 / NT4.0 / ME / 98 / 95 / Dos / Linux / Mac OS | Waterproof | Not damaged by running water applied to the active area |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 ESD.Contact discharge 4KV | ||
Products Show
Application
The capacitive touch screen has been used in many areas, such as office, teaching, entertainment equipment and so on.
