Quick Details
-
Model Number:
-
TDK HGK NGK
-
Product name:
-
Wire Grip Steel Wire Cable Clamp Pulling Tightening Tool
-
application standard steel wire:
-
4mm-22mm
-
Rated Load:
-
10KN
-
Weight:
-
0.73KG-5KG
-
Application:
-
Industry,cable construction
-
Packing:
-
Carton
-
Usage:
-
Mount Tools
-
Function:
-
cable adjustment
-
Certification:
-
ISO9001
Quick Details
-
Material:
-
Stainless Steel,Gripper
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Longzhuo
-
Model Number:
-
TDK HGK NGK
-
Product name:
-
Wire Grip Steel Wire Cable Clamp Pulling Tightening Tool
-
application standard steel wire:
-
4mm-22mm
-
Rated Load:
-
10KN
-
Weight:
-
0.73KG-5KG
-
Application:
-
Industry,cable construction
-
Packing:
-
Carton
-
Usage:
-
Mount Tools
-
Function:
-
cable adjustment
-
Certification:
-
ISO9001
Product Description

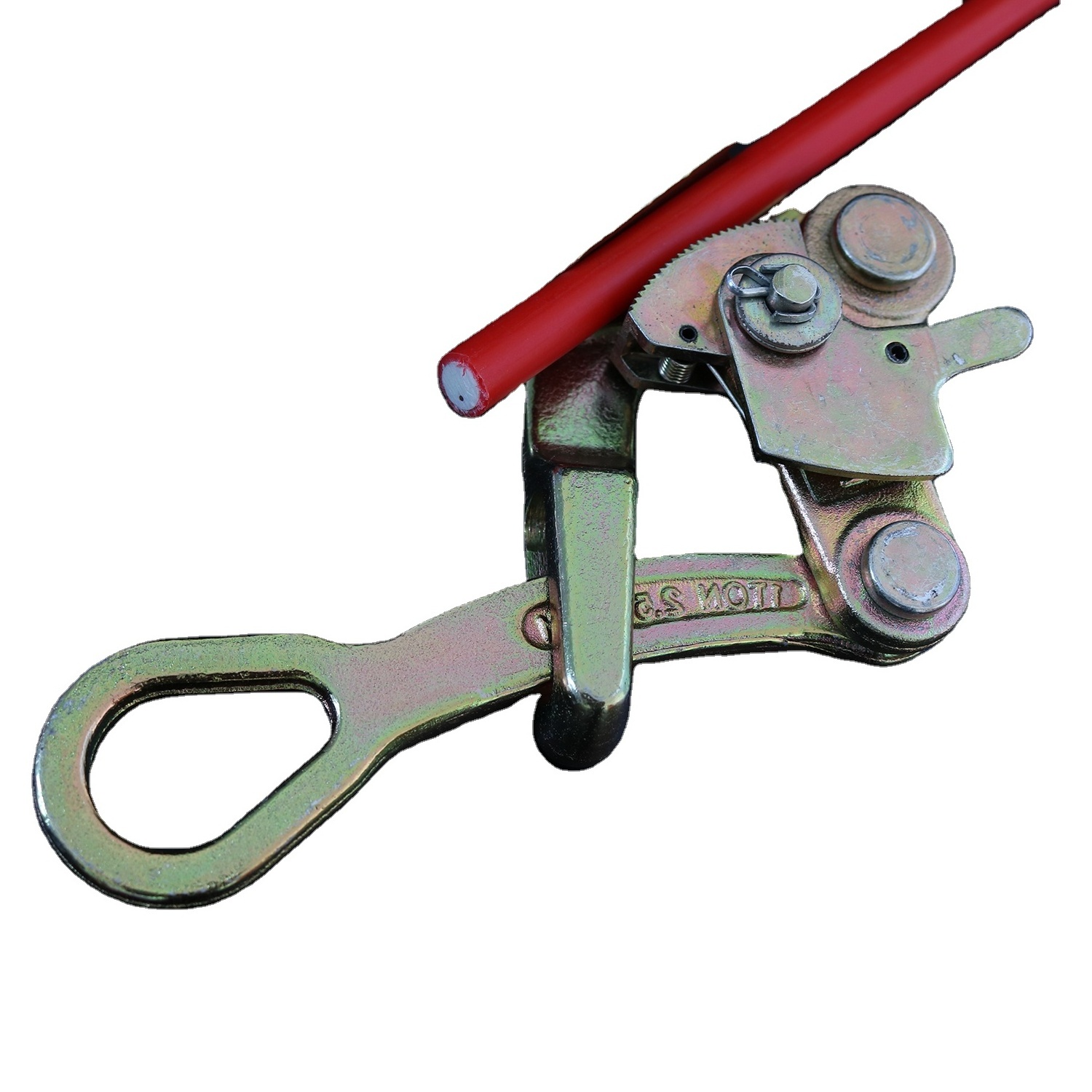

Cable Wire Puller is installed in the construction of overhead lines as tension conductors. Use first device on the tight wire or galvanized wire rope loose, and fixed in the cross arm, and with the clamp tool clamping wire, then pulling the special spanner. As the pawl anti-reverse effect, and gradually the rope, or galvanized iron wire on the ratchet drum, so that the wire to tighten. To tighten the wire fixed on the insulator. Then loosen the pawl, so that loose wire or galvanized wire, then release the clamp tool, and finally the wire or galvanized iron wire on the ratchet drum.
|
Model
|
Rated Load
(KN) |
Application of wire
(MM2) |
Weight
(KG) |
|
TDK-1
|
10
|
2.5-16
|
0.73
|
|
TDK-2
|
20
|
4-22
|
1.36
|
|
TDK-3
|
30
|
16-32
|
2.47
|
|
HGK-1
|
10
|
2.5-16
|
0.8
|
|
HGK-2
|
20
|
4-22
|
1.6
|
|
HGK-3
|
30
|
16-32
|
2.5
|
|
NGK-1
|
10
|
2.5-16
|
0.8
|
|
NGK-2
|
20
|
4-22
|
1.6
|
|
NGK-3
|
30
|
16-32
|
2.5
|
Features:
* The structure is compact and strong, and the top core parts are made of high quality alloy steel, which is specially heat
treated. It is light and portable.
* The resistance is strong, the bite is high, not easy to slip and deform.
* With delicate and smooth tongs, minimal damage to lead.
* The clamp mouth is equipped with anti-chip safety device, which ensures safety and no jumper.
* The design of the half-moon clip is suitable for all kinds of steel cables and cables.
* The application of the tensioning device is applicable to the electric power, the operation of the industry and agriculture, and the tightening of the rope line.
*High quality alloy steel, special heat treatment.
treated. It is light and portable.
* The resistance is strong, the bite is high, not easy to slip and deform.
* With delicate and smooth tongs, minimal damage to lead.
* The clamp mouth is equipped with anti-chip safety device, which ensures safety and no jumper.
* The design of the half-moon clip is suitable for all kinds of steel cables and cables.
* The application of the tensioning device is applicable to the electric power, the operation of the industry and agriculture, and the tightening of the rope line.
*High quality alloy steel, special heat treatment.
