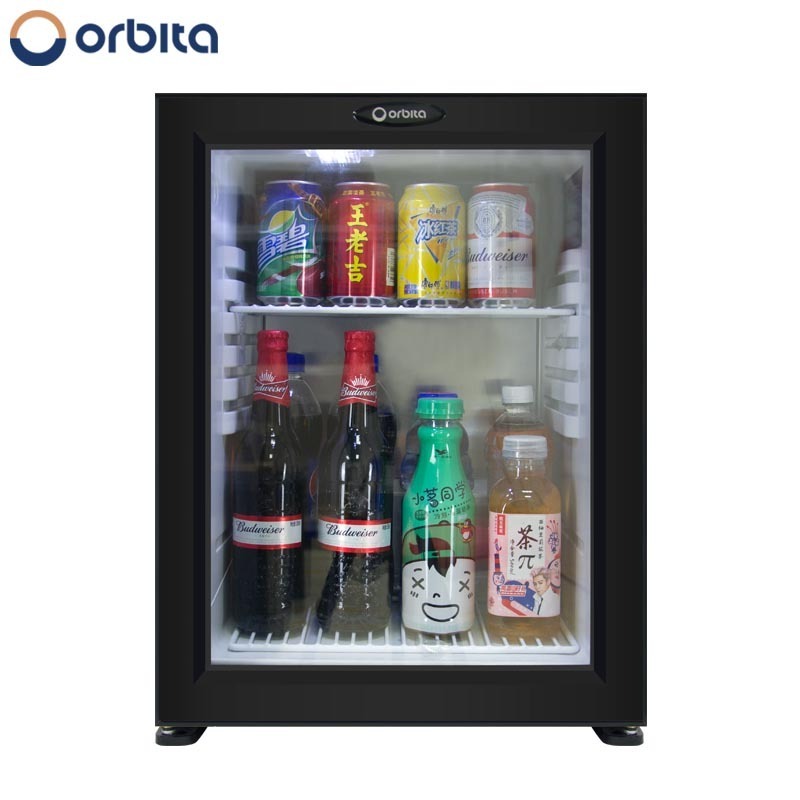

Orbita hotel room car fridge, fridge freezer, mini fridge

1: Stype No.: MB-40

2: Cooling Method: Absorption

3: Storage Temperature 0-12 degree

4: Input Power (W):65

5: Energy Consumption (kwh/24h): 0.8-0.9

6: Validity Capacity:40L

7: Lock Mounted: Yes

8: Type of controller: Digital

9: Type of Door Seal: Removable

10: N.W & G.W: 18.5/21KG

11: Shape size (W*D*H mm):400*470*517

12: Packing size (W*D*H mm):452*497*589

Re: No noise, best quality with 2 years warrantee.

Brief Introduction:

1: Fridge are the one of the products which are environmental friendly, without fluorine, and cause no pollution to the aerosphere.

2: Frige are without compressor, silent and don’t produce any noise, function stably and soundly. The products can defrost automatically and belong to static-cooling refrigerators.

3: The products adopt electronic temperature control, which makes the temperature in the product.

4: Quite even, and have little fluctuation when starting and shutting off.

5: The door hinges of the product are left-and-right interchangeable.

Usage instructions:

1: Please let the product work about 1 hour with no load, and then put in the foodstuff when using the product  for the first time.

2: The product shall stand horizontally and can’t be slanted; otherwise it will cause poor cooling.

3: There are totally 5 positions in the temperature adjusting device, normally please use position 3.

Position 1 is the warmest while position 5 is the coolest.

4: Don’t put too much foodstuff into the cabinet once, please add foodstuff gradually.

5: Certain distance shall be kept between the foodstuff stored in the cabinet, so that the cool air can flow freely and the temperature will be even.

6: In order to save energy, please try your best to reduce the door opening times as well as make it quick every time you open the door.

7: When stop using, please use a soft wet cloth to clean the inside of the cube, and let air circulate in the cube so as to avoid the liner of the cube being eroded.

8: LED light, 3.6V/1W

Absorption technology principle:

The ammonia gas was abstracted from mixed ammonia-water-ammonia solution before it was continuously absorbing and diffusing heat to cool down the spce. The absorption system uses ammonia as cooling agent, ammonia solution as absorbent, and helium as balance media.

When ammonia solution runns through the bottom of the cooler after heating, it evaporates as ammonia gas before moving to the heat sink, then it condensates into ammonia solution which finally flows into the evaporator and mixes with ammonia gas.

The gasification rapidly takes away the heat leading to refrigeration. After refrigeration, the ammonia solution continues to sink and reach the bottom of the fridge , then the next cooling cycle begins, see Figure 1.
