automatic MAP tray sealer machine nitrogen fill vacuum tray packing machine modified atmosphere tray sealing machine

automatic MAP tray sealer machine nitrogen fill vacuum tray packing machine modified atmosphere tray sealing machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8988

≥6 Pieces

US $6567

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Ruibao

Dimension(L*W*H):: 1250*1150*1600mm

Weight:: 550 KG

Language:: English/Spain/Russia/Arabia

Training video:: Seller offer it

multi mold:: Maxi 2 molds

Open aid corner:: Avaliable

Gas substitution rate:: about 97-99%

Packing mold:: customized

container material:: plastic, aluminium, paper, PLA

Function:: MAP tray sealer

Keyword:: tray sealer

Product name:: tray sealing machine

Quick Details

Packaging Type:: case, Film, Foil, trays

Packaging Material:: Plastic, Aluminium foil

Voltage:: 220v/240/380v/450v

Place of Origin:: Zhejiang, China

Brand Name:: Ruibao

Dimension(L*W*H):: 1250*1150*1600mm

Weight:: 550 KG

Language:: English/Spain/Russia/Arabia

Training video:: Seller offer it

multi mold:: Maxi 2 molds

Open aid corner:: Avaliable

Gas substitution rate:: about 97-99%

Packing mold:: customized

container material:: plastic, aluminium, paper, PLA

Function:: MAP tray sealer

Keyword:: tray sealer

Product name:: tray sealing machine

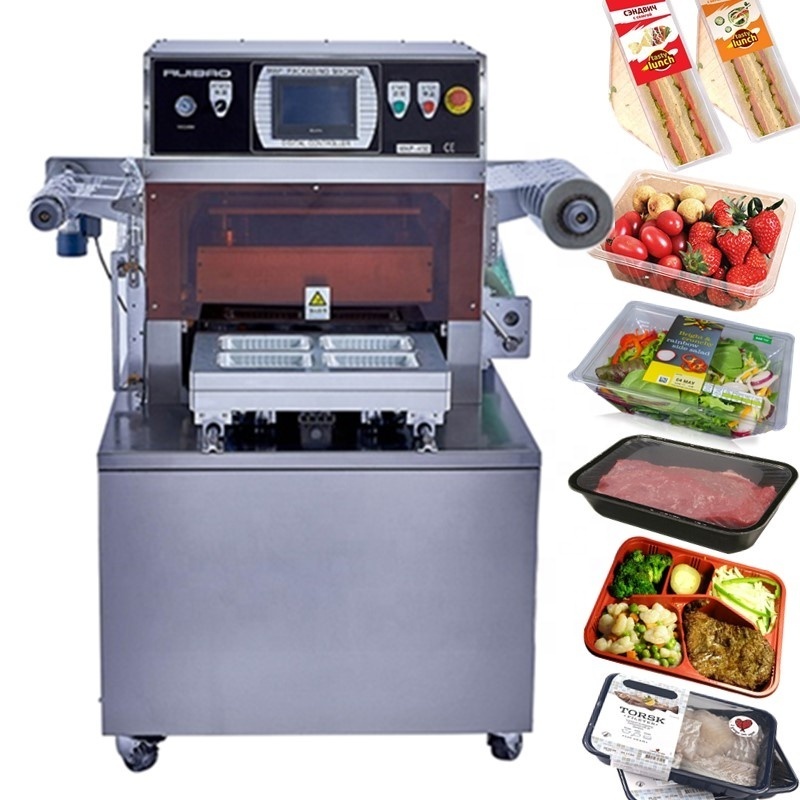

This machine is for modified atmosphere packaging. It is good option to pack different kinds of food.
It can extend the shelf life of food, keep the good taste, and keep fresh color for fresh meat/fish/fruit/vegetables etc.

Advantage

* Indivdually built for your trays

* Automatic film feeding, more sanitary
* Support modified atmosphere packaging
* Ratio of O2/N2/CO2 can be changed as per food
* Extend shelf life, remain fresh and taste of food
* Customized mold as per client tray
* Support multi mold, easy to change
* Easy for maintain and operate
* Easy open aid
* Supply training video
* Support remote access for touch screen

automatic MAP tray sealer machine nitrogen fill vacuum tray packing machine modified atmosphere tray sealing machine

Application

1. Suitable item . Food item like ready meal, meat, fish, sausage, cheese, fruit, vegetables, tofu, salad, sandwich, pizza, cooked food etc.

2. Tray size . Machines are customized accordingly to client tray size/shape. Above is just for reference.

3. Package type . Our machine can support tray+film. Opening aid corner is optional, with extra 200USD.

4. Package material . Trays made from PP / PET/ Aluminium foil.

Parameter

Model	MPA-450A	MPA-450B
Voltage	380V/50HZ/3phase or customized
Controller	IDEC PLC + Weinview touch screen
Vacuum pump	Chinese top brand ZD vacuum pump 63m3/h from German
Vacuum degree	Maxi 0.1Mba
Material	Mainly food grade 304SS
Tooling	Include 1 tooling for one tray design. It is customized
Packing speed	About 2-3 cycles per minute
Overall size	135010501650mm
Weight	About 550KG
Gas pressure	0.2-0.3Mpa for gas source inflow
Power	About 5KW
Certificate	CE
Guarantee	1 year
Language	English/Chinese/Spain for option
Air compressor	Not include in the price. The air pressure shall be about 0.6-0.8Mpa
Gas mixer	Include one inside the machine	Exclude
Function	Vacuum, O2/N2/CO2 mix and fill, seal	Vacuum, nitrogen fill, seal

1. Price

One machine can support both modified atmosphere packing(MAP for short) and vacuum skin pack(VSP for short)

MAP only, unit price 7500-8988USD
VSP only, unit price 10600USD
MAP+VSP, unit price 13780USD

* Above price do not include air compressor. It cost additional 700USD .
* We can customize wider/deeper chamber, with extra 300USD. if client has big or deep tray. Tray depth can be maxi 120mm.
* For more than 5pcs, there will be discount.
* Open aid corner, 200USD

2. Our standard packing mold is for 220*130mm or 200*140mm.
If client has other tray size/shape, mold will be customized accordingly.
Above price only include 1 mold, it can support max 2 different mold, cost additional 1250-1560USD each unit.

3. Voltage can be customized as required.If need 220V/60HZ/3phase, price is 250USD higher

4. Online video about machine details and operation : https://youtu.be/BO-H1vtUXak

5. Remote access of controller, it allows to amend language, upgrade program, and monitor the machine.

Our machine and others

Automatic film feeding

It feed film automatically.

Film roll diameter maxi 350mm.

----------------------------------------------------

HMI touch screen

It's easy to set parameters.
Usually it's English for export.

----------------------------------------------------

Emergency stop

Once press it, the machine stop immediately, and the cover open.

---------------------------------------------------

Tray mold

It supports maxi 3 molds in one machine. It jacks trays up after packing, so that user can take trays easily.

Vacuum meter

If there's any short circuit or slight power leackage, it will jump and cut off power.

Brakeable caster

Machine can move easily with it. Press the brake, the machine will be fixed well.

How to set touch screen

* We leave different holes for gases on tray sealer. Please connect them with gas source directly. Inflow gas pressure shall be 0.2-0.3Mpa.

* User can adjust gases ratio on touch screen.

* The gas mixer will mix gases and store them in another cylinder inside machine.

* The machine will automatically fill gas once inside gas less than a certain level.

* The touch screen will alarm for insufficient gas source inflow.

* Time for vacuum/gas fill/seal can be adjusted also. If want to close some function, just set the time "0".

About our factory

Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.

If you have any question to discuss! Please contact us.

Export manager: Emma Xu

We-chat/whats-app: 008615057546776

Email: emma.vac(at)cnruibao.cn

How to get quotation and process order

What information from client is neccessory for correct quotation ?

1. What is your tray size?

2. Which function do you need?

* Function 1. vacuum+O2/N2/CO2 mixing and filling+seal

* Function 2. Vacuum+nitrogen fill+seal

* Function 3. Seal directly without vacuum or nitronge filling.

Does client need send samples?

Yes. We need sample before and after get machine ready.

* Before production. Require tray sample and its drawing, so that to customize mold.

* After machine ready. If client can send at least 100pcs trays+film sample for each tray size, we will test and adjust machine, so that to make sure machine is under good condition and it parameter set ready set for your trays. This is important to handle before shipment.

Shipment term?

1. We ship under FOB or CIF by sea usually.

2. If client require DDP or DDU, please offer details address, we will offer accordinlgy.

Payment?

40% prepayment before production, balance before shipment.

* We will advice minimun film width after prepayment.

* After factory test the machine, we offer running video and picture for confirm. Then client arrange balance.

Lead time?

After prepayment, and getting tray sample/drawing, it need about 30-45days.

Do you test machine before shipment?

We will test machine and make sure machine under good condition before shipment.

After sale service?

If there's any problem, just offer videos, pictures of all touch screen pages, we will study and guide online. Usually problem can be solved this way.

If neccessory, our engineer is ready to fly oversea.
