Quick Details
-
Production Capacity:
-
98%
-
Voltage:
-
220V
-
Power:
-
1.1kw
-
Weight:
-
30kg
-
Dimension(L*W*H):
-
530*230*510mm
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Application:
-
grain,cocoa beans,sesame crushing etc
-
Capacity:
-
15-40kg/h
-
Flour fineness:
-
50-200
-
speed:
-
1420r/min
-
power:
-
1.1kw
-
voltage:
-
220V
-
weight:
-
30kg
-
dimension:
-
530*230*510mm
-
Type:
-
Soybean Machinery
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HANCHUANG
-
Model Number:
-
HC-1200
-
Production Capacity:
-
98%
-
Voltage:
-
220V
-
Power:
-
1.1kw
-
Weight:
-
30kg
-
Dimension(L*W*H):
-
530*230*510mm
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Application:
-
grain,cocoa beans,sesame crushing etc
-
Capacity:
-
15-40kg/h
-
Flour fineness:
-
50-200
-
speed:
-
1420r/min
-
power:
-
1.1kw
-
voltage:
-
220V
-
weight:
-
30kg
-
dimension:
-
530*230*510mm
-
Type:
-
Soybean Machinery
-
Certification:
-
CE ISO
stainless steel grains grinding machine / tea leaves milling machine / powder grinding machine
Introduction of small cereal grain mill machine
This machine can be used to grind kinds of grains,chinese medinces and some other dry material into powder with 50-200 mesh, such as:sesame seed,rice,black rice,soybean,peanuts,corn,sorghum,buckwheat,etc.;And all kinds of dry herbs,such as almond,poria cocos,red jujube,seed,medlar,hawthorn,red bean,donkey-hide gelatin,astragalus root,etc. When working,it relies on the millstones to make the goods into powder.
It is suitable for market,store,pharmaceutical processing plant,hospital,clinics,etc.
Features of small cereal grain mill machine
1).304 stainless steel material and the chassis internal (crushed slot) alveolar precision machining to achieve a smooth surface.
2).This machine can realize continuous feed-type operation.
3).Unique design,low noise level,easy operation and crushed fine.
Specification of small cereal grain mill machine
|
Model |
HC-1200 |
HC-2200 |
HC-3000 |
|
Power |
1.1kw |
2.2/2.4kw |
3/3.3kw |
|
Voltage |
220v |
220V |
220V |
|
Speed |
1420r/min |
1400r/min |
1430r/min |
|
Capacity |
15-40kg/h |
30-50kg |
30-80kg |
|
Degree of crushing |
50-200 |
50-200 |
50-200 |
|
Dimension |
530*230*510mm |
555*260*440mm |
600*300*460mm |
|
weight |
30kg |
42kg |
50kg |
|
Material |
Stainless steel |
||
Operation of small cereal grain mill machine
Application of cereal grain crushing machine

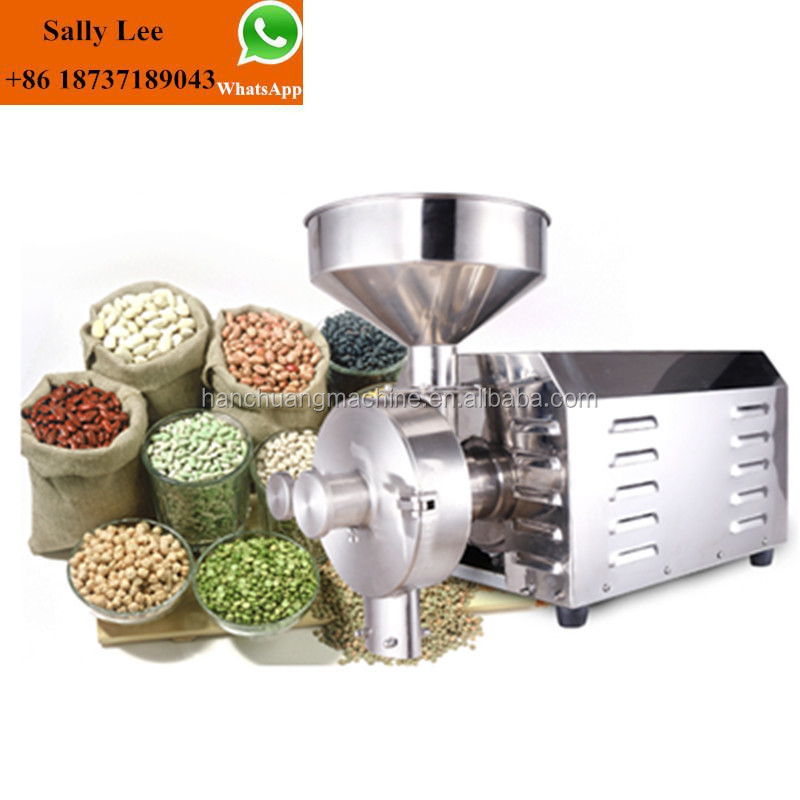

Picture of cereal grain crushing machine
Packaging & Shipping
1. Testing Machine before package
2. Package : Inside plastic bag, outside wooden case.
3. Shipping: By sea, By air.
By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.
By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service :
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
